FeiYu Tech FY-Panda2 Autopilot User Manual
Page 13
Guilin Feiyu Electronic Technology Co., Ltd.
Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyu-tech.com [email protected]
Page 12

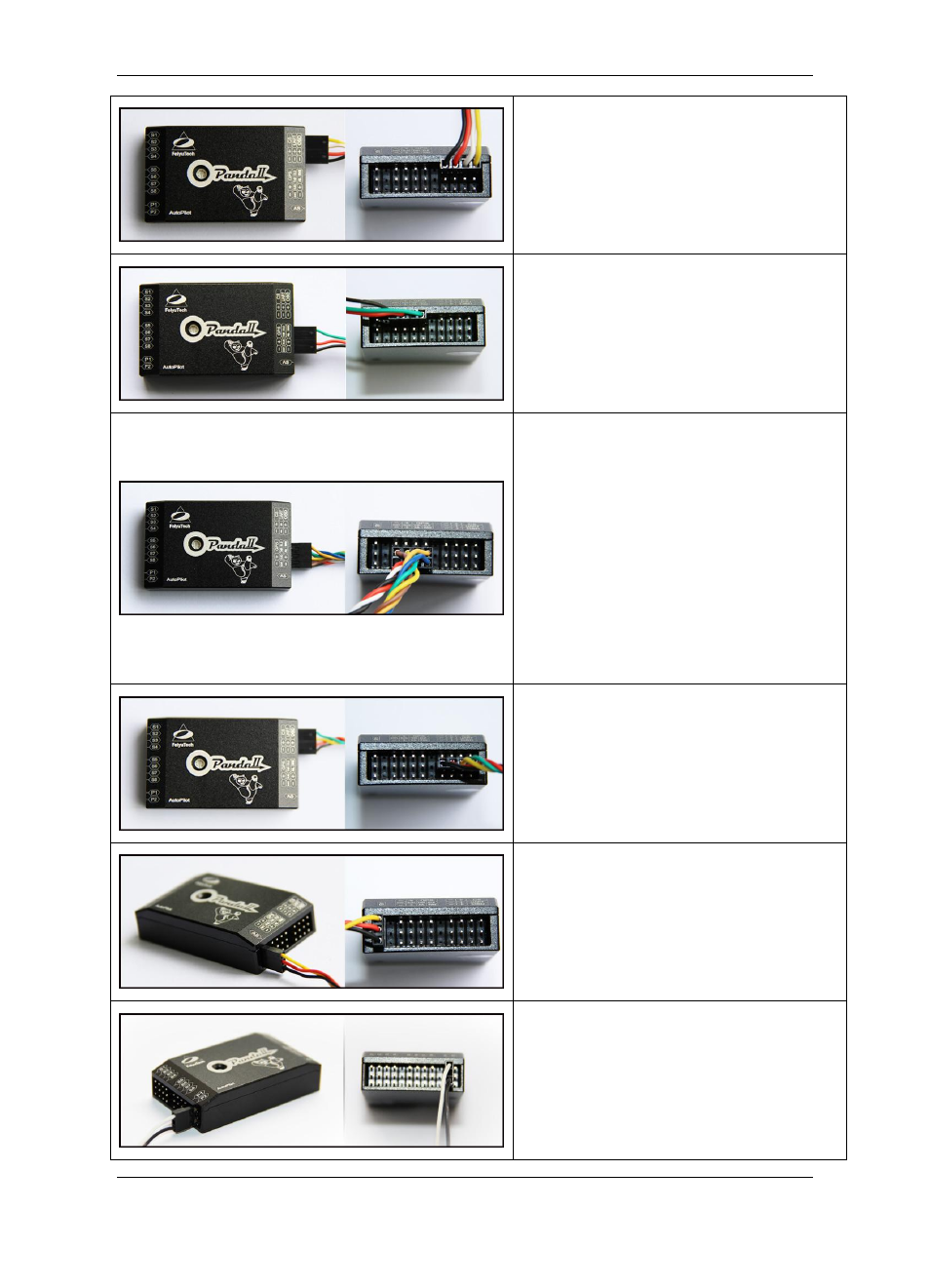

The wire connection about power
management module.
The wire connection about GPS
module.
2*4P RC receiver connecting wires,
use for connect the RC receiver and
PandaⅡ,the wires is arranged by the
colors.
White (Bundled with red & black)
—— AIL;
Orange
—— ELE;
Green
—— THR;
Yellow
—— RUD;
Brown
—— CH5;
Blue
—— CH6
The FY-606 Data radio connecting
wires.
The Airspeed sensor connecting
wires.
The wire connection about camera
control port P1, white(signal),
black(GND).
