System Map: Left View

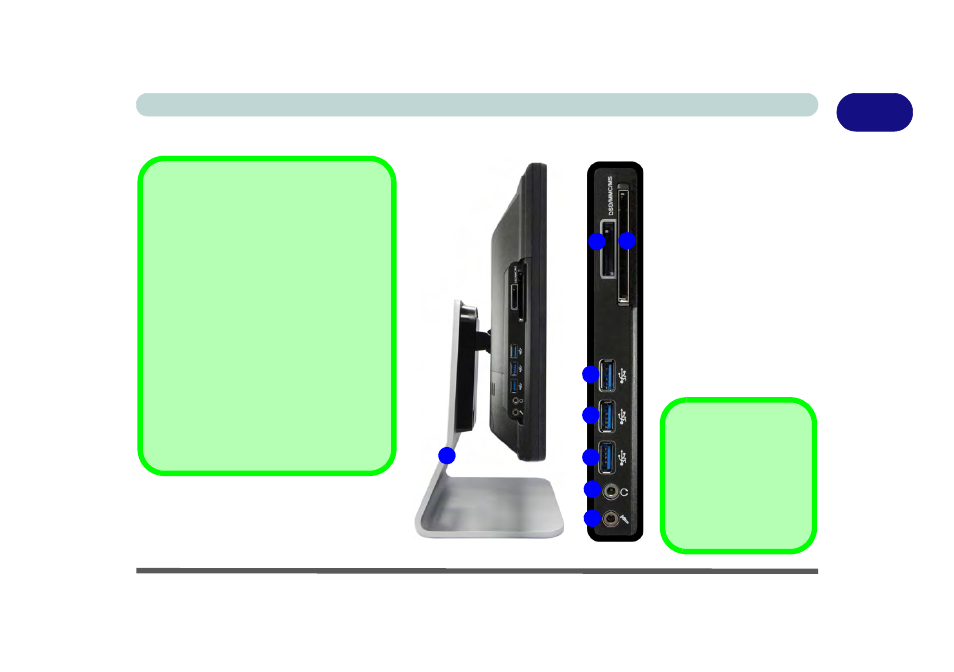

Figure 1 - 6
Left View
1.
Stand
2.
Multi-in-1 Card
Reader
3.
ExpressCard Slot
(see page
2 - 7
)
4.
3 * USB 3.0 Ports
5.
Headphone/
Speaker-Out
Jack
6.
Microphone-In
Jack
ExpressCard Slot
The ExpressCard Slot
accepts either Express-
Card/34 or Express-
Card/54 formats.
3
4
4
4
2
5
6
1
Multi-in-1 Card Reader
The card reader allows you to use the most
popular digital storage card formats:
MMC (MultiMedia Card) / RSMMC
SD (Secure Digital) / Mini SD / SDHC /
SDXC Compatible
MS (Memory Stick) / MS Pro / MS Duo
USB 3.0 Port
USB 3.0 ports are denoted by their blue col-
or; USB 2.0 ports are colored black. Note
that the USB 3.0 ports require a driver for
Windows 7 (see “
) installation (Windows 8
does not require a driver installation) and
do not support wake on USB.
