USER GUIDE
13
3 Connecting the Vector
This section describes the Vector’s cabling and
connections, and how to connect the Vector to your
RC receiver, your servos or ESCs, and your FPV video
transmitter and camera.
3.1 Vector Controller Connections

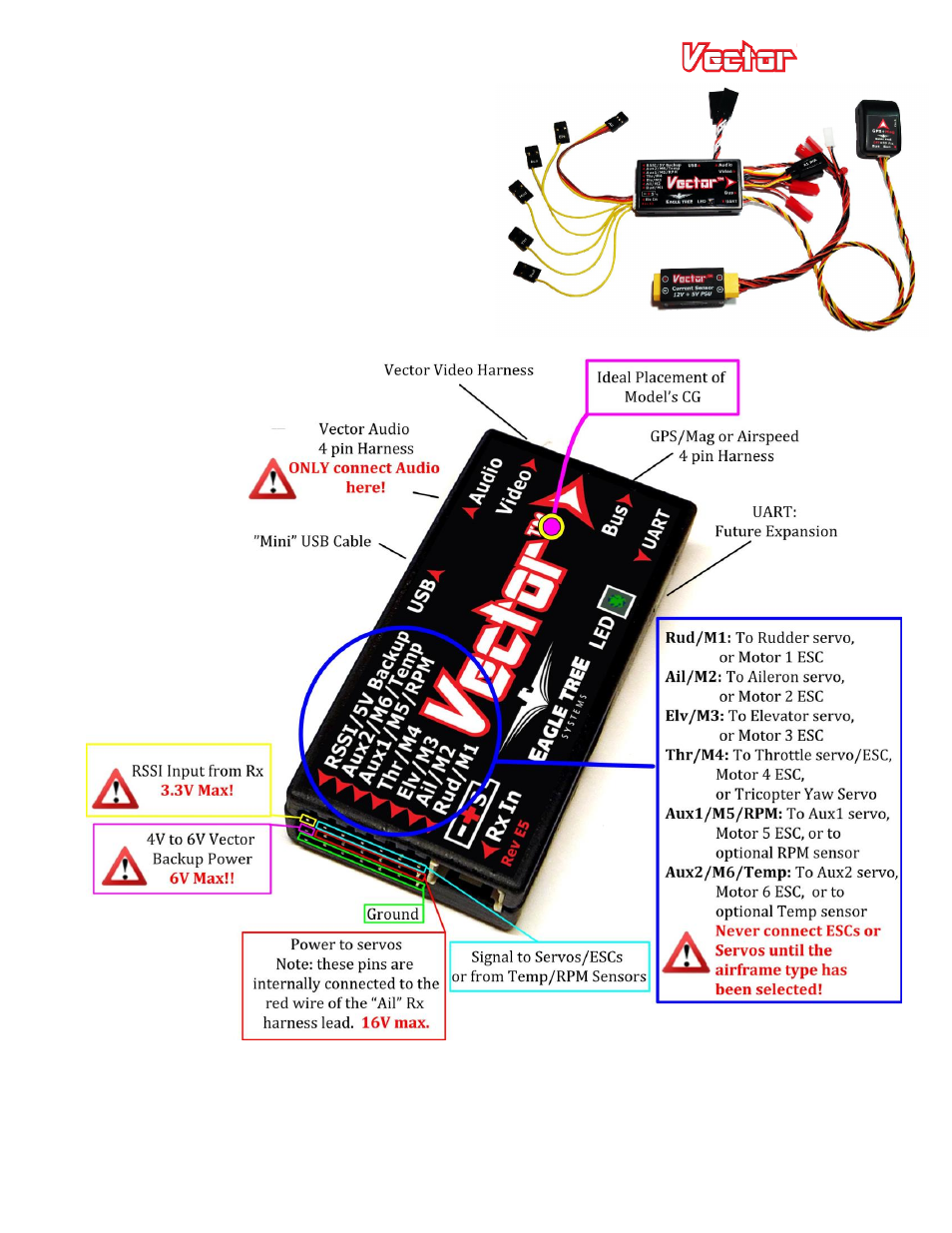

The figure below shows the function of each of the
Vector’s ports, and other Vector information.
3.1.1 Backup Power
If you want the Vector to use a redundant power supply for safety, the middle pin of the RSSI/5V Backup
connection can be used to supply backup power to the Vector. Normally the Vector is powered by 5V from the
Current Sensor/PSU, but the Vector will take power from the backup connection whenever the voltage at this
pin is approximately 0.5V higher than the voltage coming from the Current Sensor/PSU.
