JT60/JT60 All Terrain Operator’s Manual
Prepare - 75

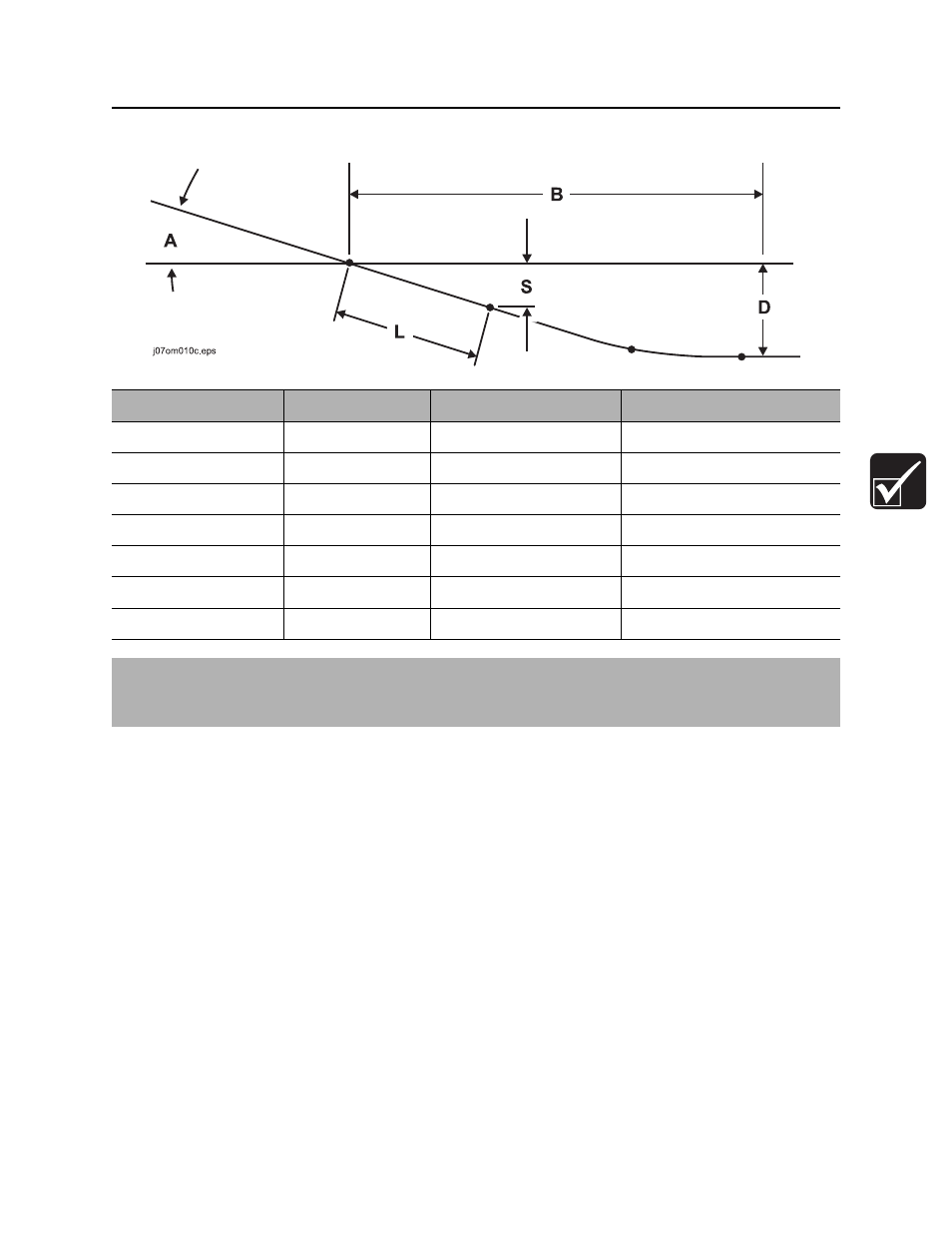

Plan Bore Path
JT60 Power Pipe AT
Minimum depth (D)
Entry pitch (A)
Setback (B)
Depth to begin steering (S)
5’ 4”
18”/10.0°
47’ 12”
2’ 3”
6’ 2”
19%/11.0°
51’ 6”
2’ 5”
7’ 2”
21%/12.0°
54’ 11”
2’ 8”
8’1”
23%/13.0°
58’ 5”
2’ 10”
9’ 2”
25%/14.0°
61’ 10”
3’ 1”
10’ 3”
27%/15.0°
65’ 3”
3’ 4”
11’ 5”
29%/16.0°
68’ 7”
3’ 6”
IMPORTANT: Numbers in table based on 168.7’ (51.4 m) minimum bend radius, beacon housing, EZ-
Connect, connector, transition sub, and 1/3 of first drill pipe (L, totaling 12’ 10” [3.9 m]) in the ground
before steering.
