MotionCreatorPro 103

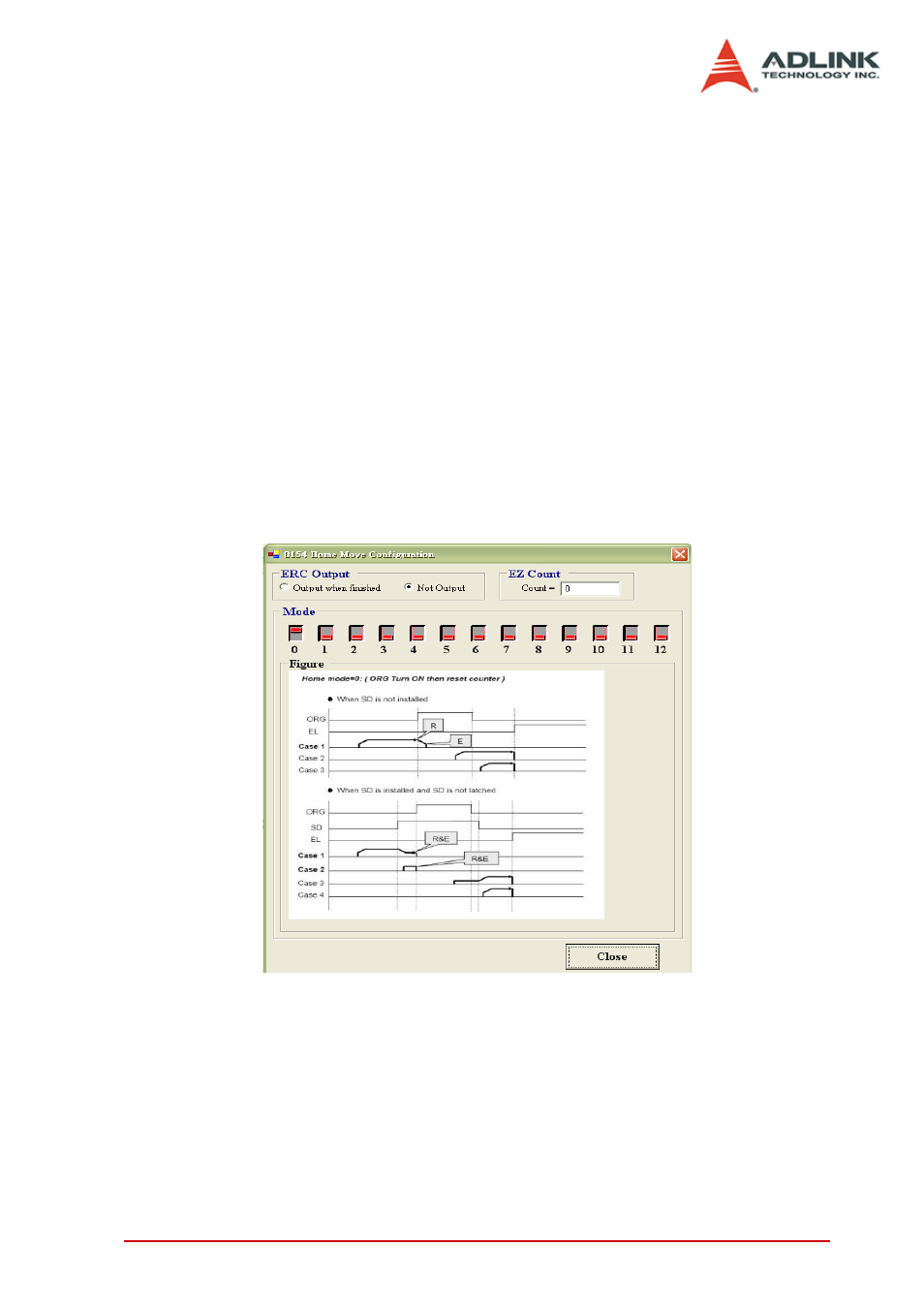

Z Home Mode: Home return motion. Clicking this button
will invoke the home move configuration window. The
related function is _8154_set_home_config(). If the
check box “ATU” is checked, it will execute auto homing
when motion starts.
ERC Output: Select if the ERC signal will be sent when
home move completes.
EZ Count: Set the EZ count number, which is effective
on certain home return modes.
Mode: Select the home return mode. There are 13
modes available.
Home Mode figure: The figure shown explains the
actions of the individual home modes.
Close: Click this button close this window.
8. Position: Set the absolute position for “Absolute Mode.”
It is only effective when “Absolute Mode” is selected.
9. Distance: Set the relative distance for “Relative Mode.”
It is only effective when “Relative Mode” is selected.
10.Repeat Mode: When “On” is selected, the motion will
become repeat mode (forward<-->backward or
