Connecting to Various Devices (Cont.)

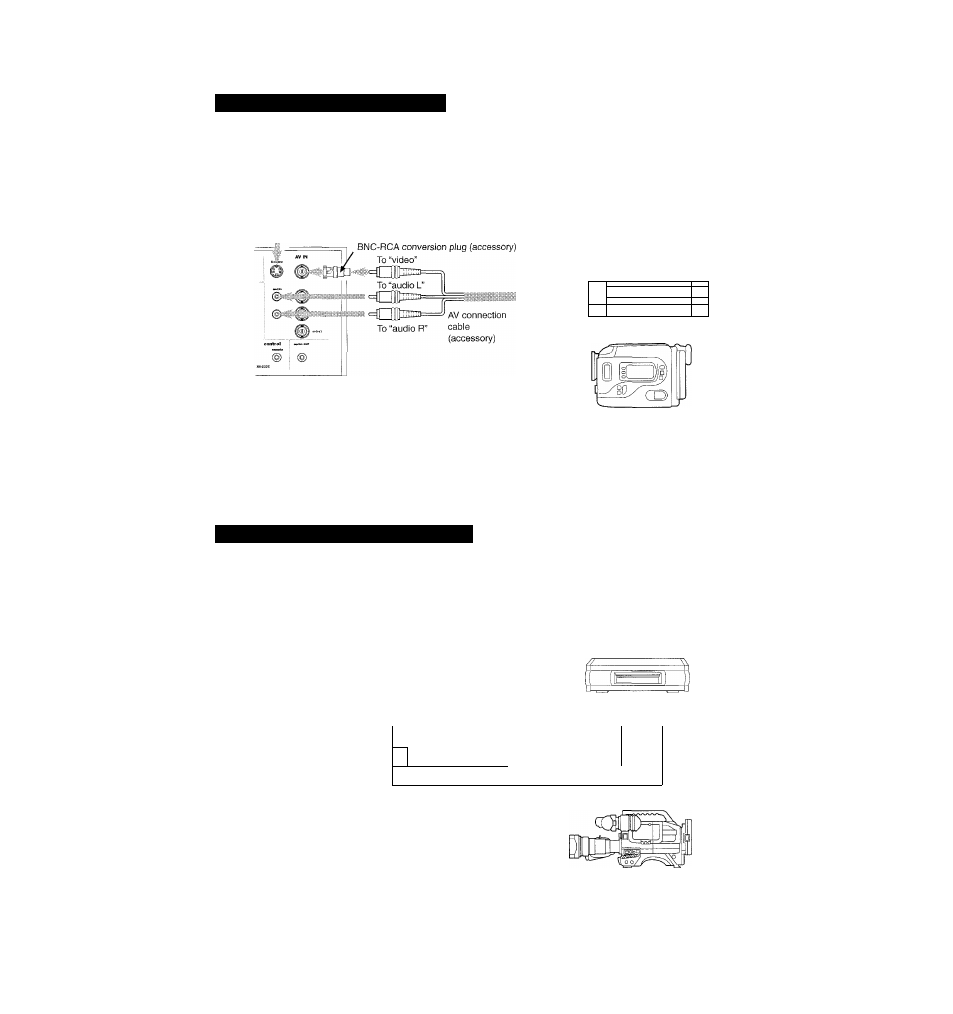

Connecting to Video Devices
Before connection, be sure to turn off both the projector and video device.
• Read the manual which comes with each video device thoroughly.
• Use the supplied AV connection cable. An AV connection cable with an S video terminal is not supplied.
S video cable
To “S-video” (separately available)
To select the proper audio input for video input
The video input terminal (AV IN input terminal) can
be switched with the VIDEO (or “video”) button.
However, since this projector has only a single audio
input terminal, reconnect audio input in accordance
with the AV device to be used.
Video devices
• VCR (Video Cassette recorder)
• Laser video disc player or DVD player
s
□ 1—I
iS
© o =
' Camcorder
' Use of an extension cable to connect a video device and the
projector could cause video degradation.
' When a signal with much jitter is reproduced on a VCR or special-
effect playback is performed, the upper part of the picture or the
picture itself may be erased or distorted.
Connecting to Hi-Vision Devices
Before connection, be sure to turn off both the projector and Hi-Vision devices.
• Read the manual which comes with each Hi-Vision device thoroughly.
• Use separately available BNC cables and audio cables to connect Hi-Vision devices.
To “audio R”
To “audio L”
Audio connection cable
(separately available)
ToAV IN
To'Video/y’ 1 /
1 i
To ''c/cb(b-y) ..... 1 1
1 ^
^ To“cr(r-y)’ ■
1 u
BNC cable (separately available)
To select the proper audio input for video input
The video input terminal (AV IN input terminal) can
be switched with the VIDEO (or “video”) button.
However, since this projector has only a single audio
input terminal, reconnect audio input in accordance
with the AV device to be used.
Hi-Vision devices
• W-VHS VCR or DVD player
• Text/video camera
Hi-Vision video camera
Other devices with component signal output terminals (DVD player
(NTSC), etc.) can be connected.
*DVD: Digital Video Disc
