ВТН S E R V I C E H A N D B O O K

P A R T S L I S T S

CYCLONE XHE® MODELS

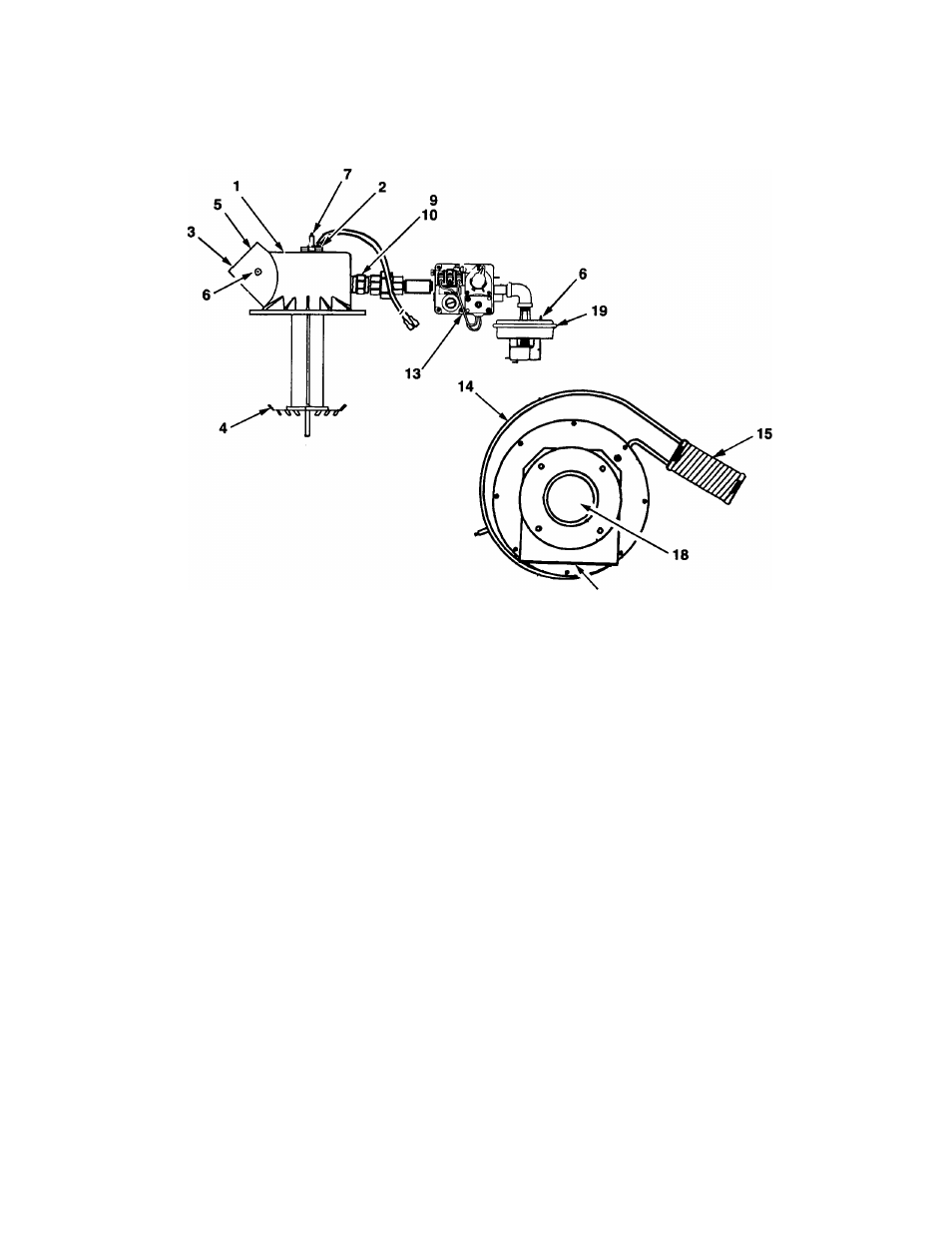

BTH - 250 BURNER & BLOWER PARTS LISTS — SERIES 962

17

ITEM 1 DESCRIPTION

BTH-250

1

1

Burner

192416-000

2

1

Igniter Assembly

192638-000

3

1

Rivet, Blind, 1/8” Dia 316 SS

192730-000

4 I Air Deflector

192414-000

5 I Air Restrictor

192450-002

6 I Barb, Hose, 3/16”

192800-000

7

1

Flame Rod Assembly

192478-000

9 ^ Orifice

192477-002

10

1

Orifice Holder

192447-000

13

1

Valve, Gas

192454-000

14

1

Blower

193203-000

15

1

Tube, Air

192469-010

17

1

Bracket, Blower Mounting

192482-000

18

1

Flange Assembly, Inlet

192886-000

19

1

Low Gas Pressure Switch

191149-001

Part numbers in shaded cells are recommended stock
items for emergency replacement.

A. O. Smith Water Products Co.
Ashland City, Tennessee © 2004

67

Technical Training Department

TC-044 Revision 6
