ВТН S E R V I C E H A N D B O O K

P A R T S

S T S

CYCLONE XHE® MODELS

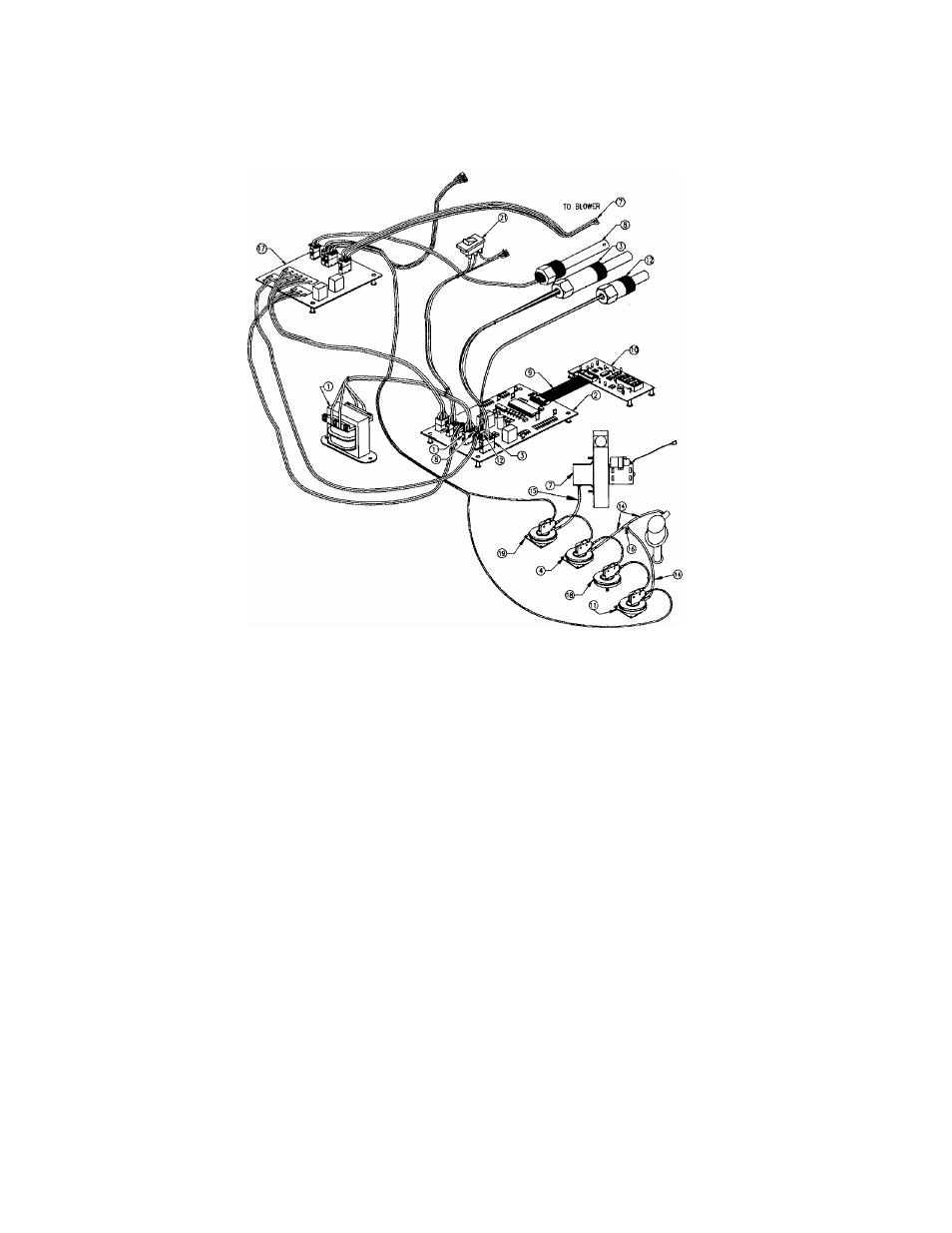

BTH - 250 CONTROLS PARTS LIST — SERIES 966

ITEM

DESCRIPTION

BTH - 250

1

Transformer

192608-001

2

Control Board

193822-000

3 II E.C.O./Temperature Probe

192606-000

4 II Blower Proving Air Switch

193295-000

7 1 Blower Assembly

193203-000

8

Ignitor Assembly

192638-000

g

Cable to Control Display Board

192623-000

10 II Board, Display Panel

192622-001

11

Bloeked Outlet Proving Switeh

193357-000

12

Temperature Probe. Lower

192609-000

14

Tubing. Pressure

192024-001

15 II Tubing, Pressure

192024-006

16

Tubing. Connector

192152-000

17

Blower Speed Redueing Panel

192987-000

18

Low Gas Pressure Switch

191149-001

19

Blocked Inlet Switeh

193361-000

21

Switch-On-Off

193243-000

Part numbers in shaded cells are recommended for

stock items for emergency replacement.

Technical Training Department
TC-044 Revision 6

58

A. O. Smith Water Products Co.

Ashiand City, Tennessee © 2004
