BTH S E R V I C E H A N D B O O K

T R O U B L E S H O O T I N G

120 VAC TO IGNITOR

STEP 10A

120 VAC TO IGNITOR

IGNITOR

6 5 4

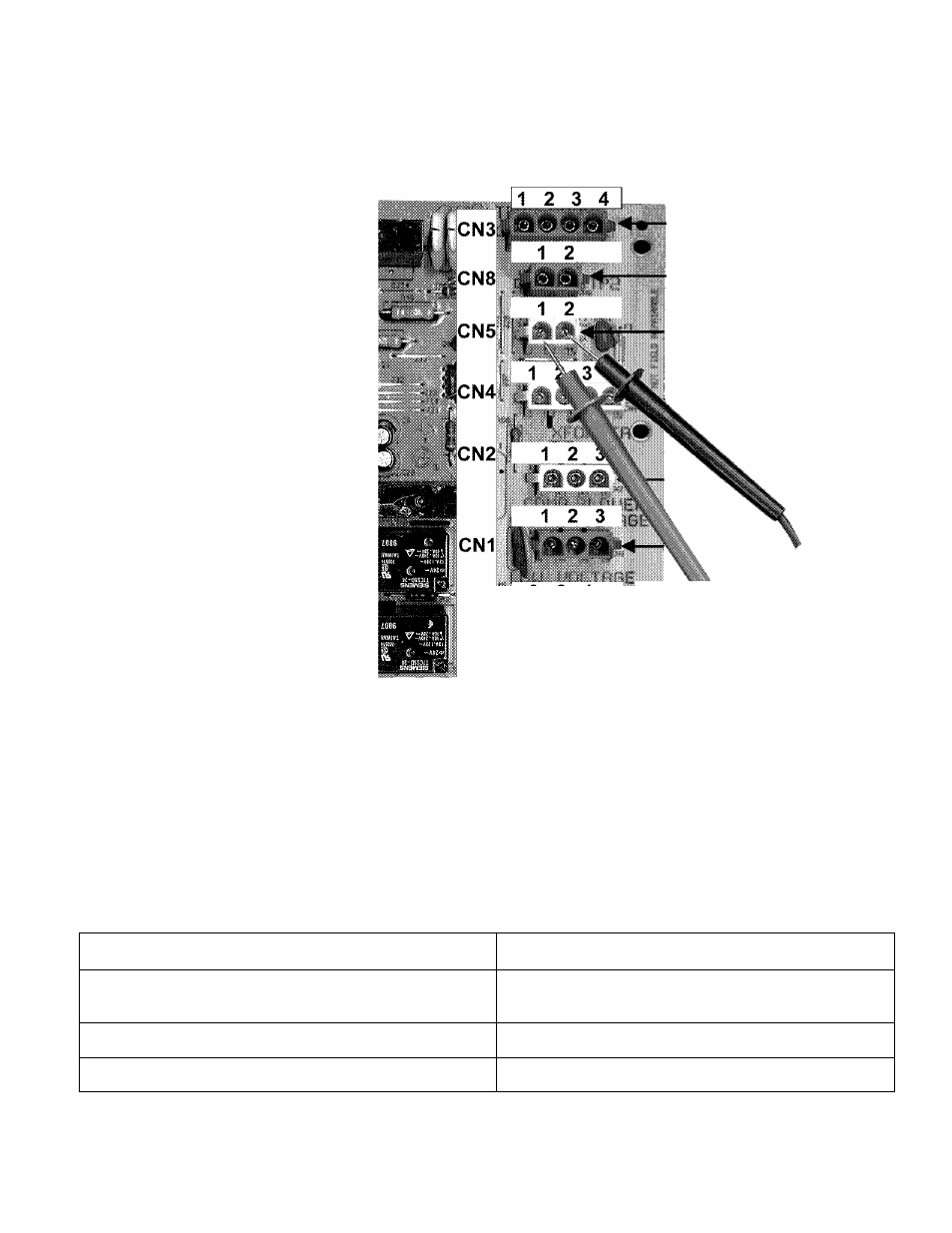

STEP 10A: CHECK FOR 120 VAC TO IGNITOR FROM PIN 1 AND 2 ON CONTROL BOARD

TERMINAL CN5.

Condition:

• Disconnect CN5 plug from control board.

• On/Off switch is on.

• Call for heat is activated.

• Perform test during ignitor warm up period.

IF...

THEN

120 VAC is not present

replace the control board if Steps 7 through 9B have
been performed and results were successful.

120 VAC is present on — BTH 250, 962 & 966 Series

continue to Step 10B.

120 VAC is present on — all other models

continue to Step 11.

A. O. Smith Water Products Co.
Ashland City, Tennessee © 2004

29

Technical Training Department

TC-044 Revision 6
