ВТН S E R V I C E H A N D B O O K

P A R T S L I S T S

CYCLONE XHE® MODEL

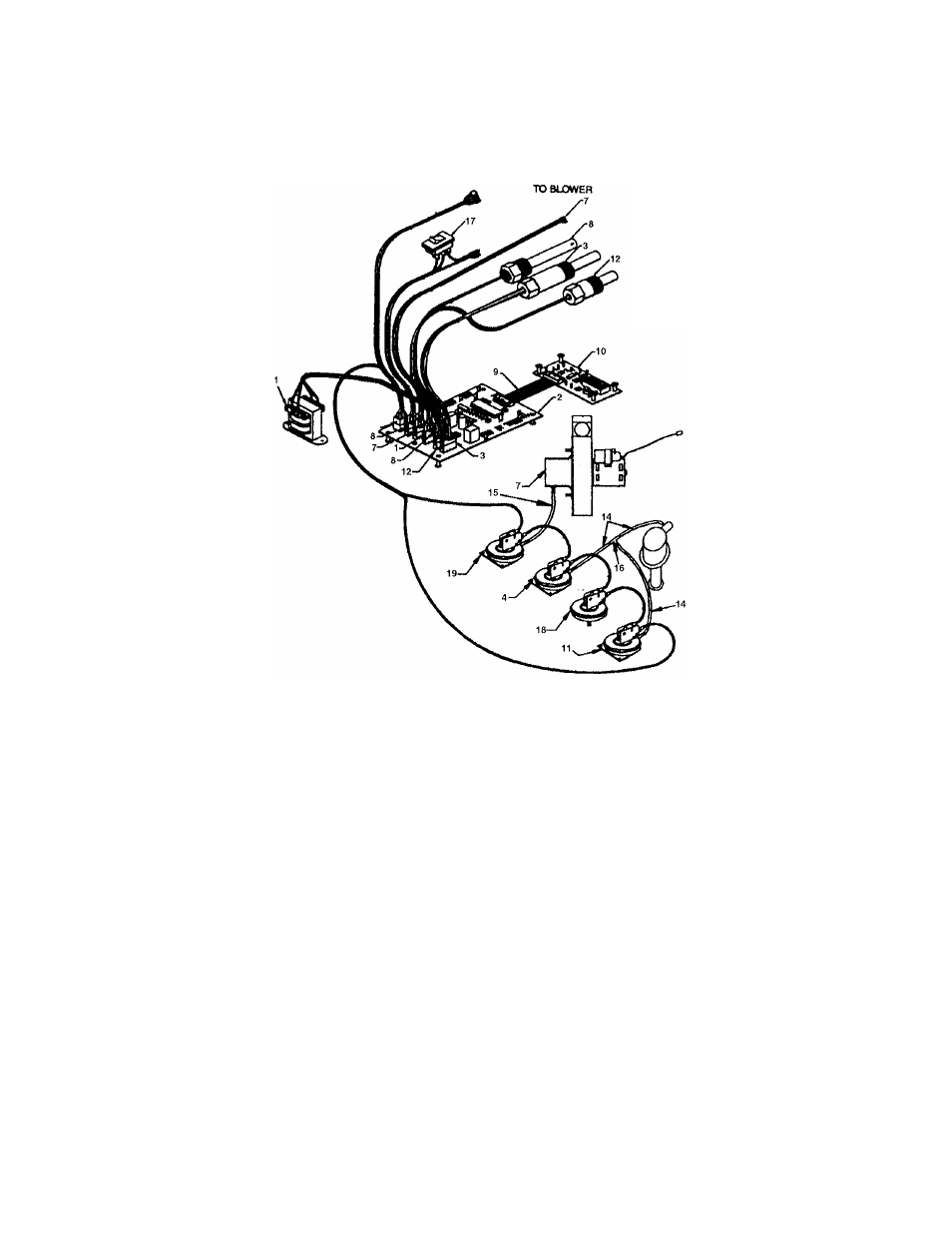

BTH -120 CONTROLS PART LIST — SERIES 966/967

966 = NATURAL GAS
967 = PROPANE GAS

ITEM

DESCRIPTION

BTH-120

1 I Transformer

192608-001

2

1

Control Board

193822-000

3

E.C.O. Tomporaluro Probo

192606-000

4

Blower Proving Air Switch

193295-000

7

Blower Assembly

193341-000

8

Igniter Assembly

192638-000

9 I Cable to Control Display Board

192623-000

10

Board. Display Panel

192622-001

11

Blocked Outlet Proving Switch

193294-000

12

Temperature Probe, Lower

192609-000

14

1

Tubing, Pressure

192024-002

15 I Tubing, Pressure

192024-006

16 I Tubing, Connector

192152-000

17

Swilch-On.^Olf

193243-000

18 I Low Nat. Gas Pressure Switch

191149-001

19 I Low Prop. Gas Pressure Switch

191149-004

20

Blocked Inlot Switch

193293-000

Part numbers in shaded cells are recommend stock items for emer­
gency replacement.

Technical Training Department
TC-044 Revision 6

50

A. O. Smith Water Products Co.

Ashiand City, Tennessee © 2004
