BTH S E R V I C E H A N D B O O K

STEPS

T R O U B L E S H O O T I N G

TRANSFORMER (CONTINUED)

24 VAC FROM TRANSFORMER

‘m ■'■

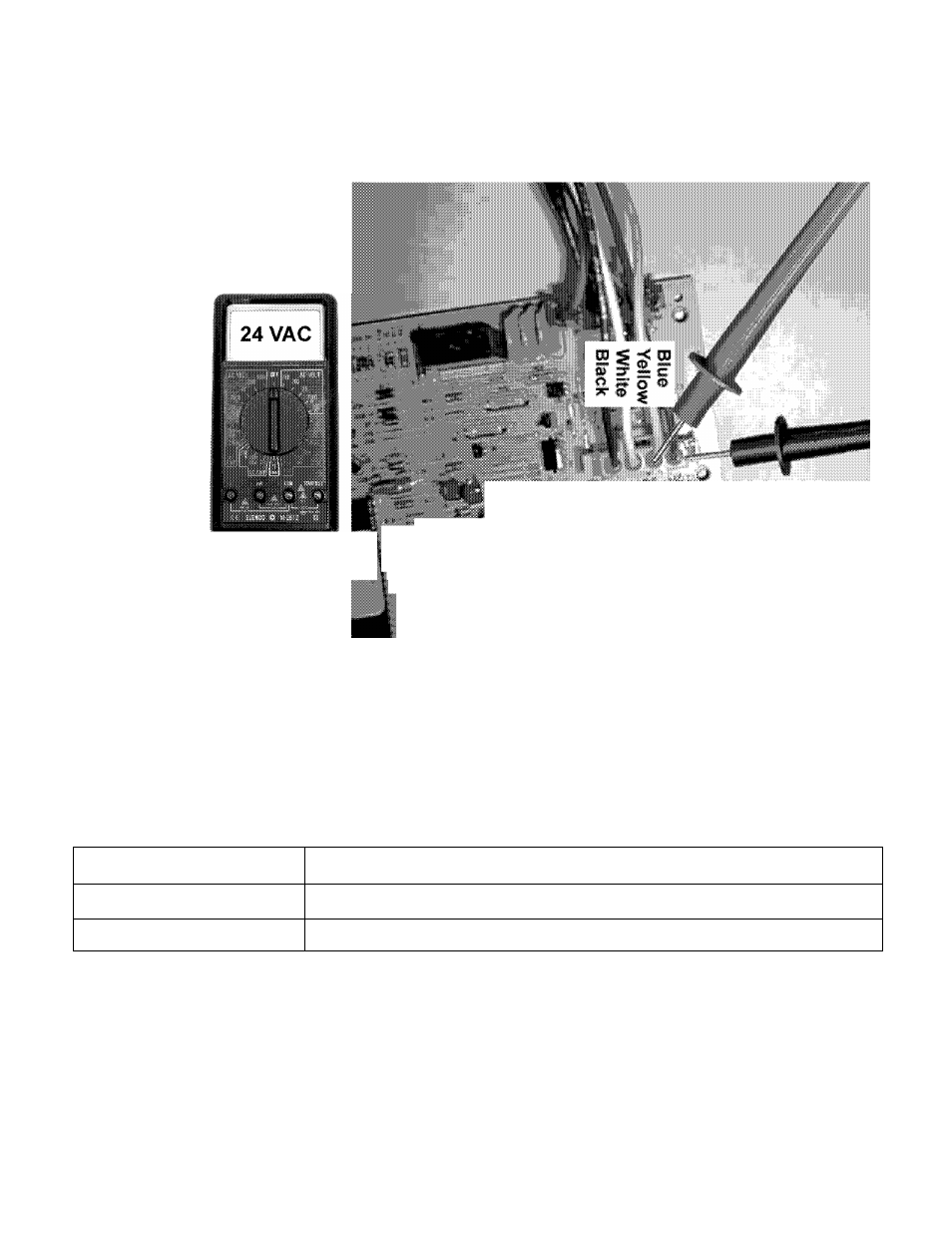

STEP 3: CHECK FOR 24 VAC AT TRANSFORMER CN4 PLUG ON CONTROL BOARD.

Condition:

• CN4 is plugged into control board.

• On/Off switch is on.

Insert meter probes into back of CN4 plug on pins 3 and 4 (blue and yellow wires) with CN4
plugged in and power on.

IF...

THEN

24 VAC is not present

replace transformer if Steps 1 and 2 were performed and results were successful.

24 VAC is present

continue to Step 4.

Technical Training Department
TC-044 Revision 6

20

A. O. Smith Water Products Co.

Ashland City, Tennessee © 2004
