CYCLONE XHE® MODELS

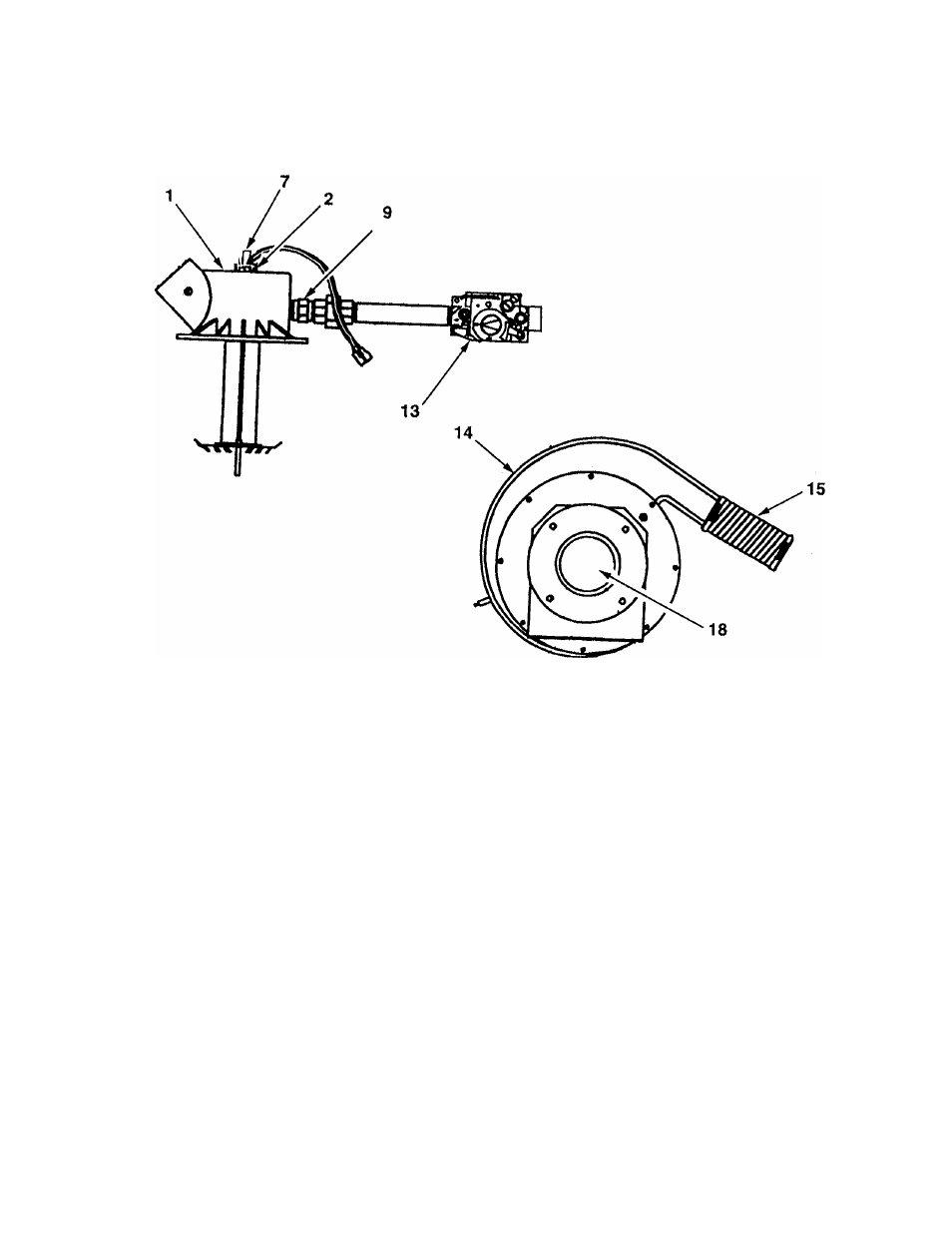

BTH -150 & BTH -199 SERIES 966 & 967 BURNER & BLOWER PARTS LIST

BTH-150

BTH-199

ITEM

DESCRIPTION

NATURAL

PROPANE

NATURAL

PROPANE

(966)

(967)

(966)

(967)

1 I Burner Assembly

1941И-001

194114-005

194114-000

194114-004

2

Ignitor Assembly

192e3f?-000

192638-000

192638-000 192638-000

7

Flame Rod Assembly

192478-000

192478-000

192478-000 192478-000

9

Ori rice

192477-001

192477-005

192477-000

192477-004

13

Valve, Gas

192797-000

192454-001

192797-000 192454-001

14

Blower

193354-000

193354-000

193354-000 1

1 193354-000

15

Tubo. Air

1924Й9-010

192469-010

192469-010 192469-010

18

Flange. Inlet

192641-001

192886-001

192641-001 1192886-001
