B T H S E R V I C E H A N D B O O K

T R O U B L E S H O O T I N G

ECO CHECK (CONTINUED)

STEPS

24 VAC FROM ECO

Ì

24 V

.Temperature/

Eco Probe (Upper)

Temperature

1

2

», Probe #2 (Lower)

2 I-

IcN4 .^ ^ ^

' Í ^

. [ *

TCN2 1 2 3

Igniter

Transformer

— Blower

■ 1 O *5

CN1 HtnwISKflp^

—To Junction Box

I

I

1, 3 Gas Valve
2 Flame Sensor

6 5 4

• 4, 6 Pressure Switches

5 Ground

STEP 5: CHECK FOR 24 VAC BETWEEN PIN 1 ON CN3 PLUG AND GROUND.

Condition:

• Reconnect CN3 plug to control board.

• On/Off switch is on.

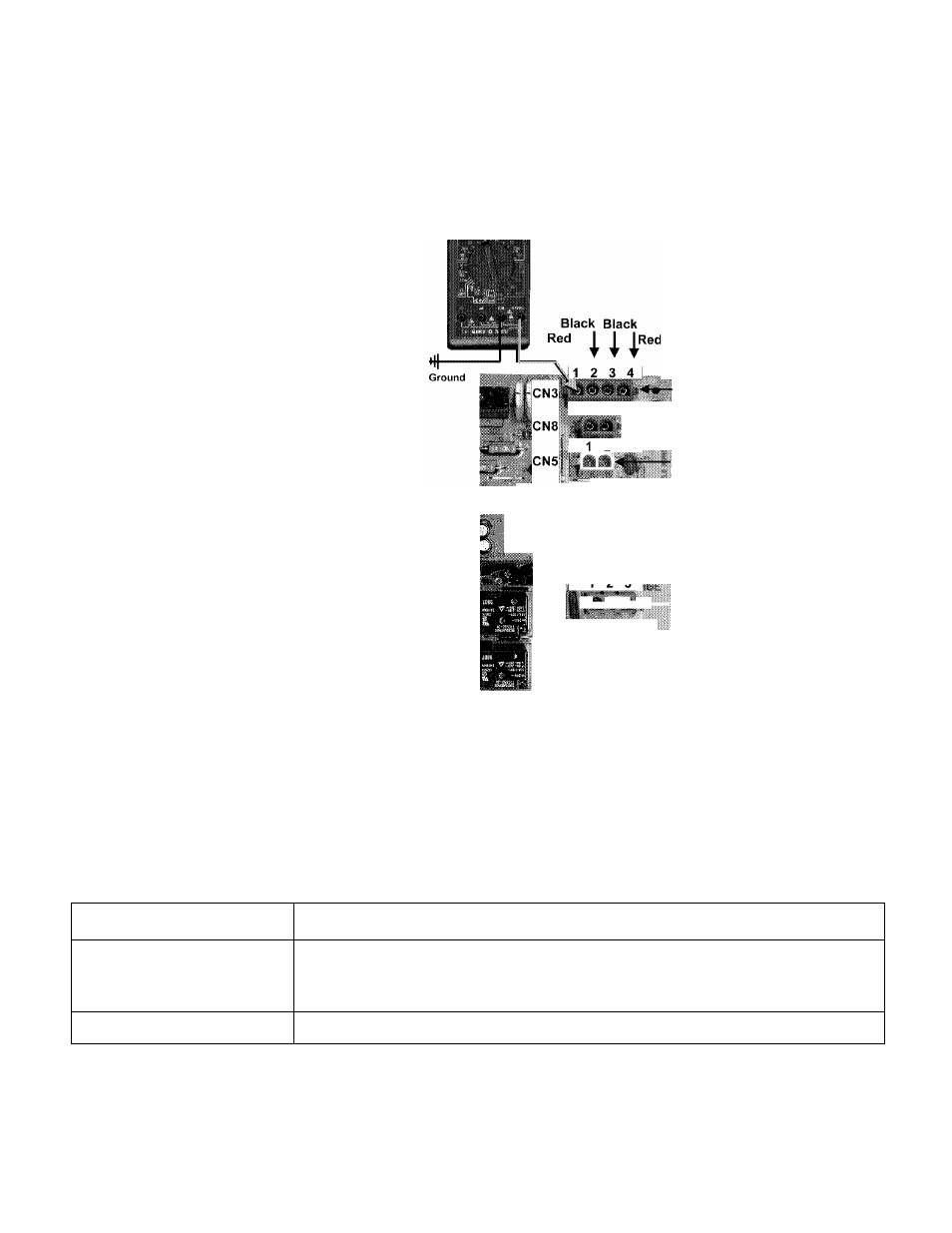

Insert one meter probe into the back of CN3 plug pin 1, check for 24 VAC between here and ground

with CN3 plugged in and power on. (See illustration above for pin number locations.)

IF...

THEN

24 VAC is not present

make sure water temperature in tank is below 160° F, press Set/Reset button on
display panel, replace upper temperature/ECO probe if tank water temperature is
below 160 and Step 4 has been performed and results were successful.

24 VAC is present

continue to Step 6.

Technical Training Department
TC-044 Revision 6

22

A. O. Smith Water Products Co.

Ashland City, Tennessee © 2004
