BTH S E R V I C E H A N D B O O K

T R O U B L E S H O O T I N G

TRANSFORMER

STEP 2

120 VAC TO TRANSFORMER

I 120V

CO

1

m-%

r'

1

^ o

.

i ' i C —

>1

mm

^

lon

T

hois

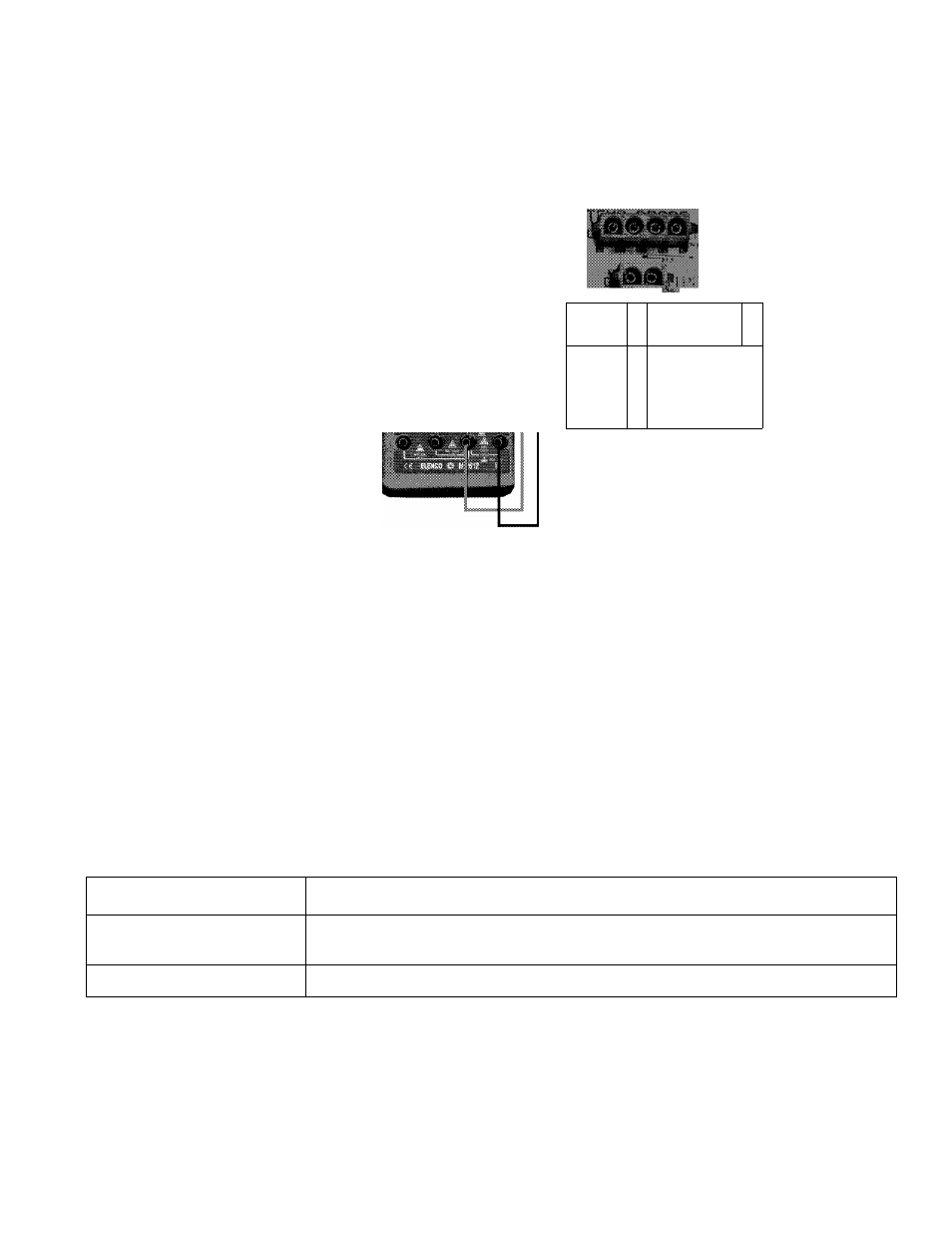

STEP 2: CHECK FOR 120 VAC TO TRANSFORMER FROM PIN 1 AND 2 ON CONTROL

BOARD CN4 TERMINAL.

Condition:

• Disconnect CN4 plug from control board.

• On/Off switch is on.

Check for 120 VAC between pin 1 and 2 at CN4 on the control board as illustrated above. Perform

this test with the CN4 plug disconnected and the On/Off switch turned on.

IF...

THEN

120 VAC is not present

check CN1 plug connection
replace control board if Step 1 has been performed and results were successful.

120 VAC is present

reconnect CN4 plug to control board, continue to Step 3.

A. O. Smith Water Products Co.
Ashland City, Tennessee © 2004

19

Technical Training Department

TC-044 Revision 6
