NOTES.
1. NET WEIGHT INCLUDES OIL BUT NOT REFRIG. CHARGE.
2. OIL PUMP IS AUTOMATICALLY REVERSIBLE FOR
EITHER DIRECTION OF ROTATION.
3. CONTROL BOX DRAWING 06D-201-El
4. MUFFLER DRAWING 06D-202-4
YES
NO
CONTROL BOX
r
MOUNTING SPRINGS
MUFFLER
CRANKCASE HEATERS
MODEL
NET
WEIGHT
OIL
CHARGE
06DA7I8
210 LBS.
7 PINTS
06DA8I8
225 LBS.
SPRING MOUNTING ARRANGEMENT
( T Y P I C A L )
Dimensions are approximate. Certified dimension drawings are availabie on request.

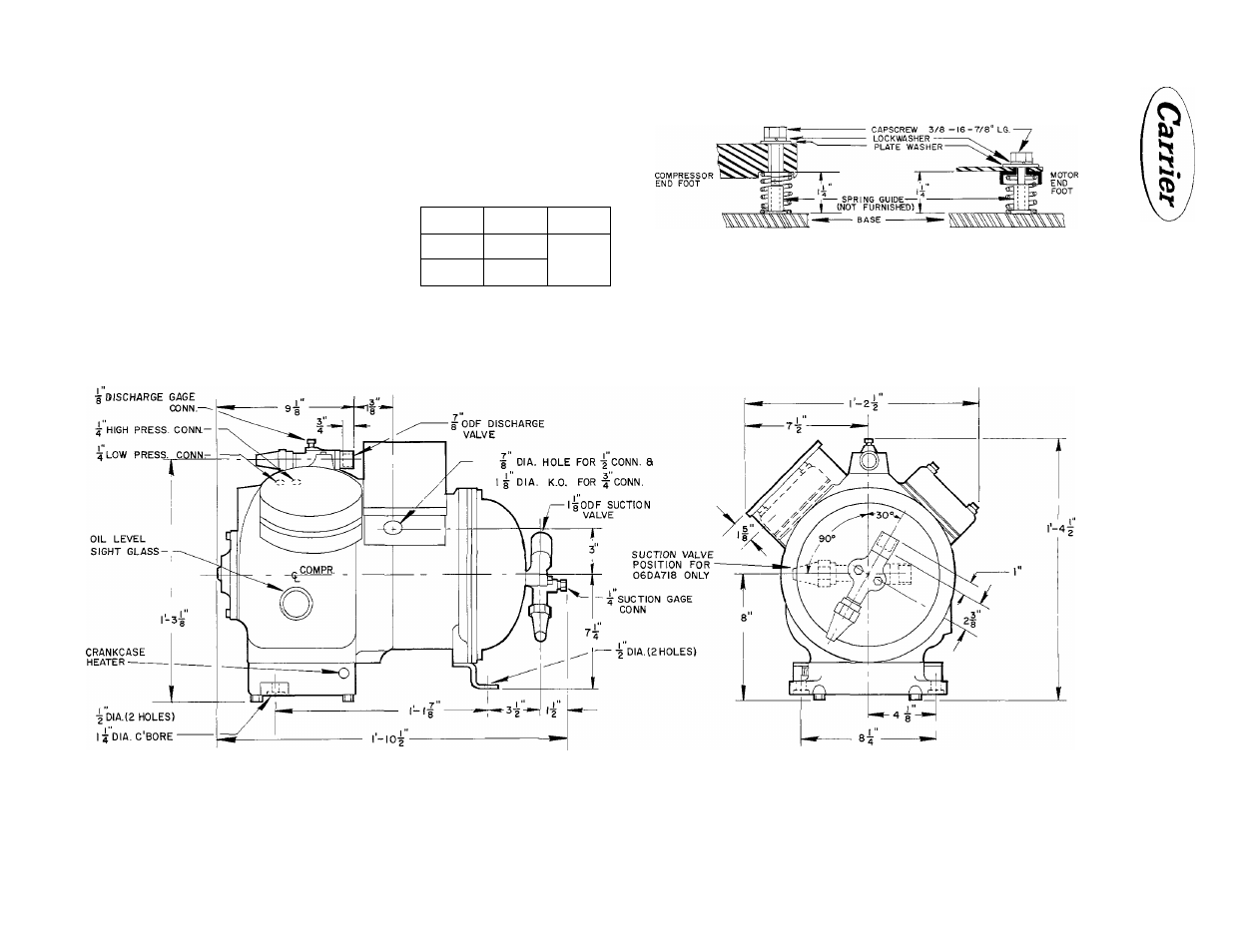

Fig. 10 - Dimensions for 06DA718 and 06DA818
z
(/>
>
>
5
z
