06D,07D
INSTALLATION
DISCHARGE GAGE
CONN.
DISCHARGE SHUT-OFF
VALVE
DISCHARGE MANIFOLD
PRESSURESTAT CONN.
PUMP END BEARING
HEAD
OIL PUMP COVER
BULL'S EYE
WATER INLET AND
OUTLET HEADERS
(SEE FIG 18 FOR
PROPER CONNECTIONS)
DISCHARGE MUFFLER
SUCTION MANIFOLD
PRESSURESTAT CONN
TERMINAL BLOCK
SUCTION SHUT-OFF
VALVE
CONTROL BOX
REFRIGERANT
TAG
COMPRESSOR
NAMEPLATE
CONDENSING UNIT
NAMEPLATE
OIL FILL PLUG
MOUNTING SPRINGS
(REMOVE BOLTS BEFORE
STARTING)
LIQUID LEVEL
TEST COCK
LIQUID LINE CONN.
' WATER REGULATING VALVE
PRESSURE CONN

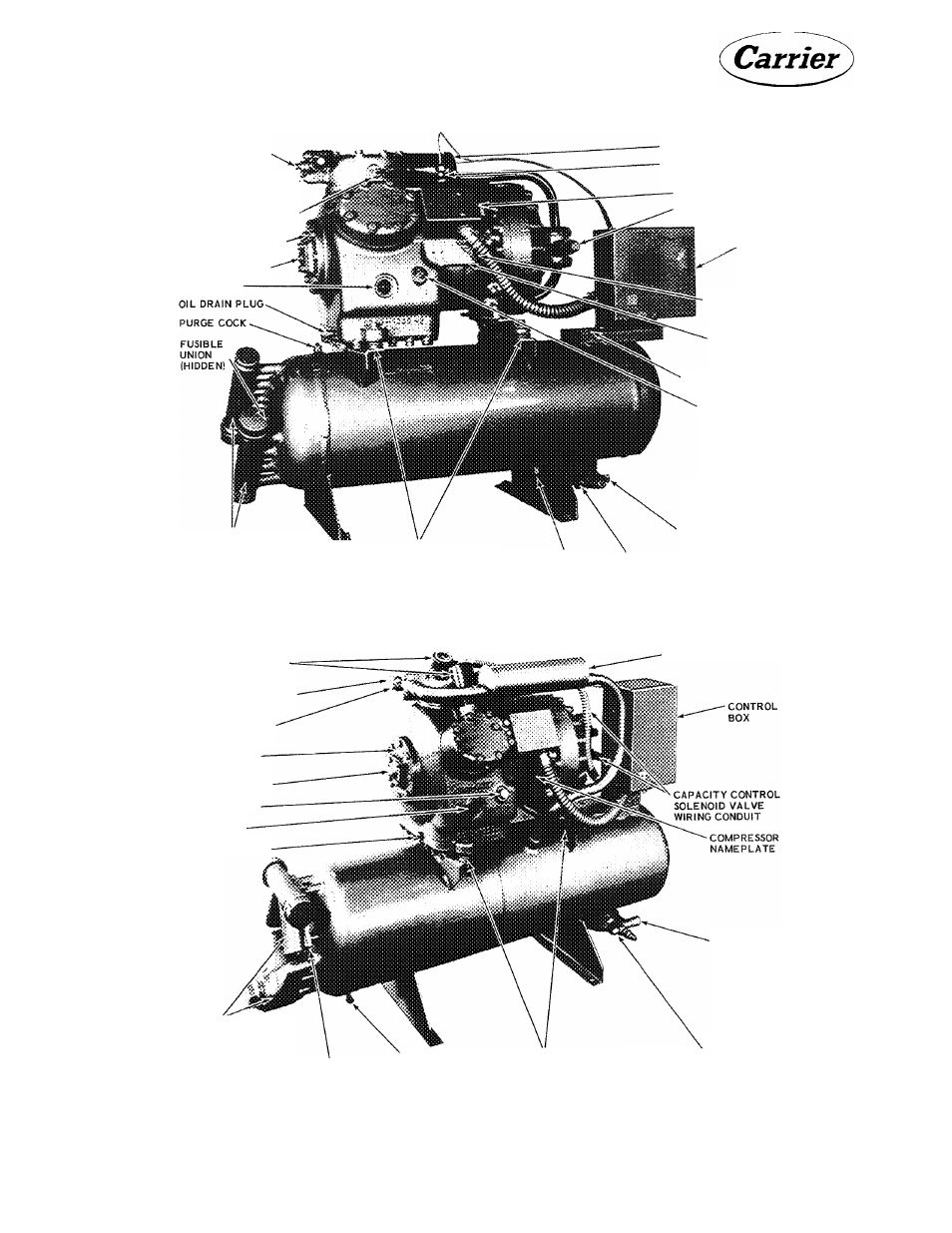

Fig. 4 - Typical 6 Cylinder Water-Cooled Condensing Unit
(07DA210, Three-Phase Illustrated)
CAPACITY CONTROL
SOLENOID VALVES
DISCHARGE SHUT-OFF
VALVE
DISCHARGE GAGE
CONNECTION
PUMP END
BEARING HEAD
OIL PUMP COVER
OIL FILL PLUG
BULL'S EYE
OIL DRAIN PLUG
DISCHARGE MUFFLER
WATER INLET
AND OUTLET
HEADERS (SEE
FIG. 18 FOR
PROPER
CONNECTIONS)
LIQUID LINE
CONNECTION
FUSIBLE
UNION (HIDDEN)
' LIQUID
LEVEL TEST
COCK
MOUNTING SPRINGS
(REMOVE BOLTS BEFORE
STARTING)
WATER REGULATING VALVE
PRESSURE CONN
Fig. 5 - Typical 6 Cylinder Water-Cooled Condensing Unit - Capacity Control
(07DA215, Three-Phase Illustrated)
