NOTES
I NET WEIGHT INCLUDES OIL BUT NOT REFRIG. CHARGE.
2. OIL PUMP IS AUTOMATICALLY REVERSIBLE FOR
EITHER DIRECTION OF ROTATION.
3. CONTROL BOX DRAWING 06D-20I-EI
4. MUFFLER DRAWING 06D-202-4
3Æ-I6 X 1 1/2 LG
CAPSCREW
COMPRESSOR
END FOOT
PRESS. ACTUATED
CONTROL VALVE(S)
CONTROL BOX
MOUNTING SPRINGS
MUFFLER
CRANKCASE HEATER
YES
NO
NET WEIGHT 270 LBS.
OIL CHARGE 10 PTS.
06DA DENOTES NO UNLOADERS
LOCKWASHER —
PLATE WASHER
3/8 - 16-7/8‘‘LG. CAPSCREW
ai
SPRING GUIDE-
JL (NOT FURNISHED)
BASE-
MOTOR
END
FOOT
06DE DENOTES
2 STEP PRESSURE
ACTUATED UNLOADING
M/8" DIA. HOLE FOR 3/4“C0NN..
13/8“ DIA. K.O. FOR I" CONN. 8.
SPRING MOUNTING ARRANGEMENT
( T Y P I C A L )
Dimensions are approximate. Certified dimension drawings are available on request.

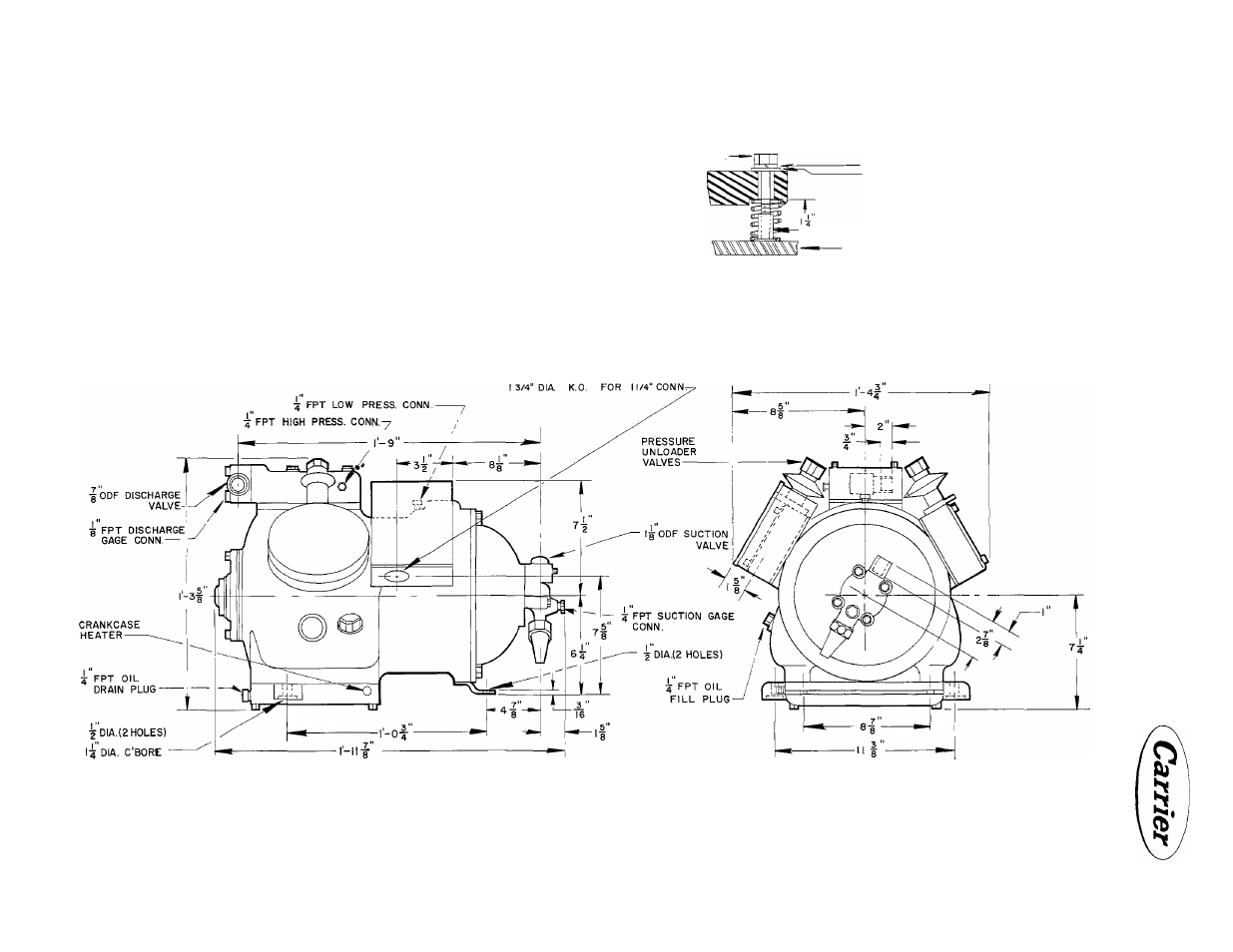

Fig. 11 - Dimensions for 06DA824 and 06DE824
