Carrier 07D User Manual
Page 8
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
NOTES.
1. NET WEIGHT INCLUDES OIL BUT NOT REFRIG. CHARGE.
2. OIL PUMP IS AUTOMATICALLY REVERSIBLE FOR
EITHER DIRECTION OF ROTATION.
3. CONTROL BOX DRAWING OSD- 201-El
4.
MUFFLER DRAWING OSD- 202-4
YES_ NO
PRESS. ACTUATED CONTROL VALVEiS)
LIQUID STRAINER-DRIEF
CRANKCASE HEATER PKG.
UNIT
MODEL
CAPACITY
CONTROL
NET WEIGHT
(LBS)
07DAII2
07DA2I5
WITHOUT
580
07DBI 12
07DB2I5
WITH
590
Dimensions are approximate. Certified dimension drawings are available on request.

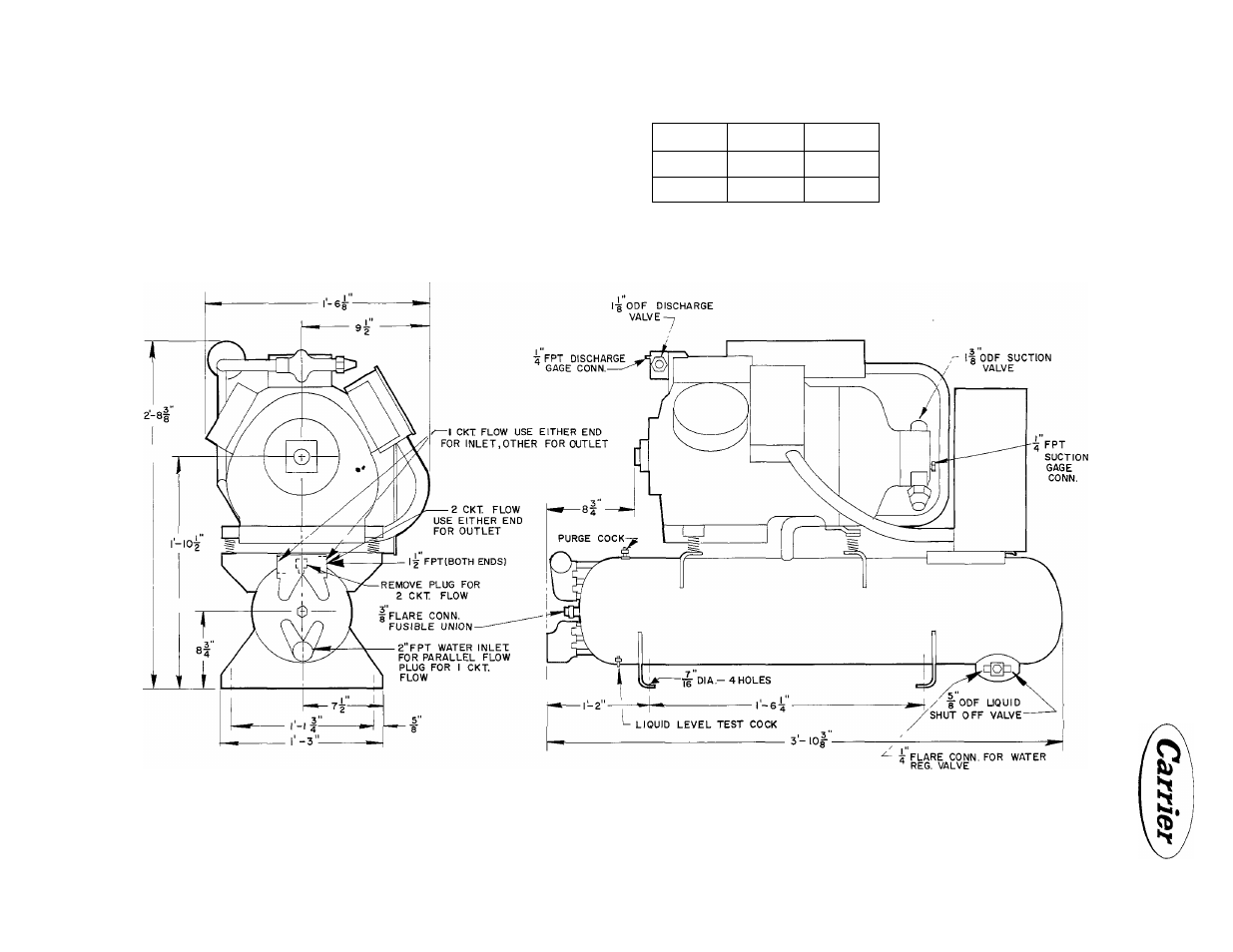

Fig. 9 - Dimensions for 07DA,DB112 and 07DA,DB215
