06D,07D

INSTALLATION

Carrier

m

T T

TURN CLOCKWISE TO INCREASE
ACTUATING PRESSURE}
COUNTERCLOCKWISE TO DECREASE
LOADING POINT MAY BE SET

ANYWHERE FROM 0-PSIG
TO 85-PSIG MAX.

(A) UNLOADED OPERATION

DIFFERENTIAL ADJUSTMENT

REMOVE SEALING CAP AND
TURN CLOCKWISE TO INCREASE

DIFFERENTIAL j

COUNTERCLOCKWISE TO
DECREASE.
ONE TURN = 2-PSI
REPLACE AND TIGHTEN

SEALING CAP.
DIFFERENTIAL MAY BE
ADJUSTED FROM
6-PSI MIN. TO
22-PSI MAX.

(B) LOADED OPERATION

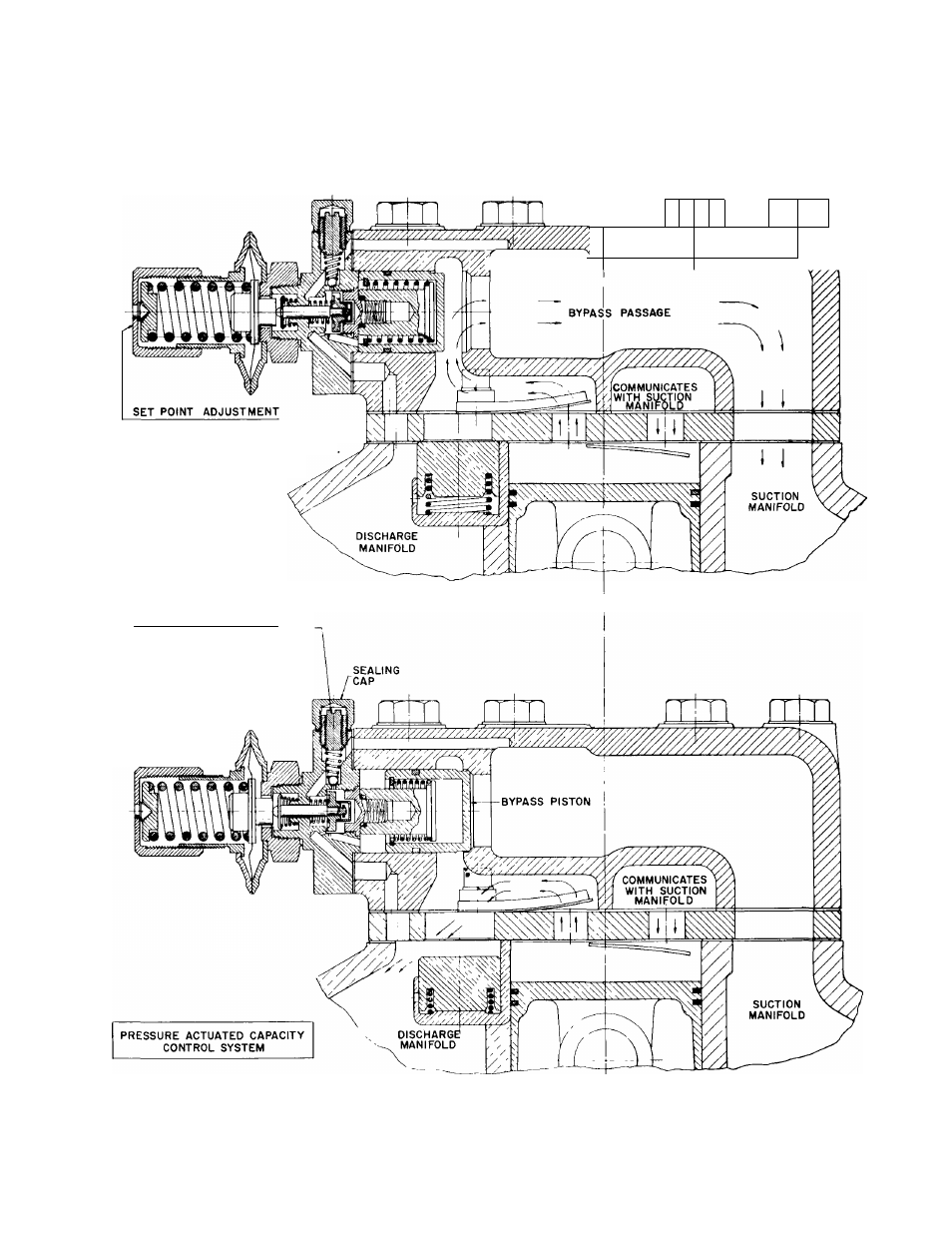

Fig. 25 - Pressure Actuated Capacity Control System - 06D Compressors
