INSTALLATION
06D,07D
DISCHARGE
GAGE CONN.
SUCTION
PRESSURESTAT CONNECTION
SUCTION SHUT-OFF
VALVE
SUCTION GAGE
CONN.
PUMP END BEARING
HEAD
OIL PUMP COVER
BULL'S EYE
OIL DRAIN PLUG
. DISCHARGE MANIFOLD
DISCHARGE MUFFLER
TERMINAL BLOCK
COMPRESSOR NAMEPLATE
RUN
CAPACITORS
START
CAPACITORS
WATER OUTLET
(COOLING TOWER ONLY)
FUSIBLE UNION
WATER INLET
(COOLING TOWER)
WATER INLET
AND OUTLET
(CITY WATER)
'LIQUID LINE CONN.
-WATER
REGULATING VALVE
PRESSURE CONN
CONTROL BOX
CONDENSING UNIT
NAMEPLATE (USE
FOR WARRANTY
PURPOSES)
REFRIGERANT TAG
MOUNTING
SPRINGS (REMOVE
BOLTS BEFORE STARTING)

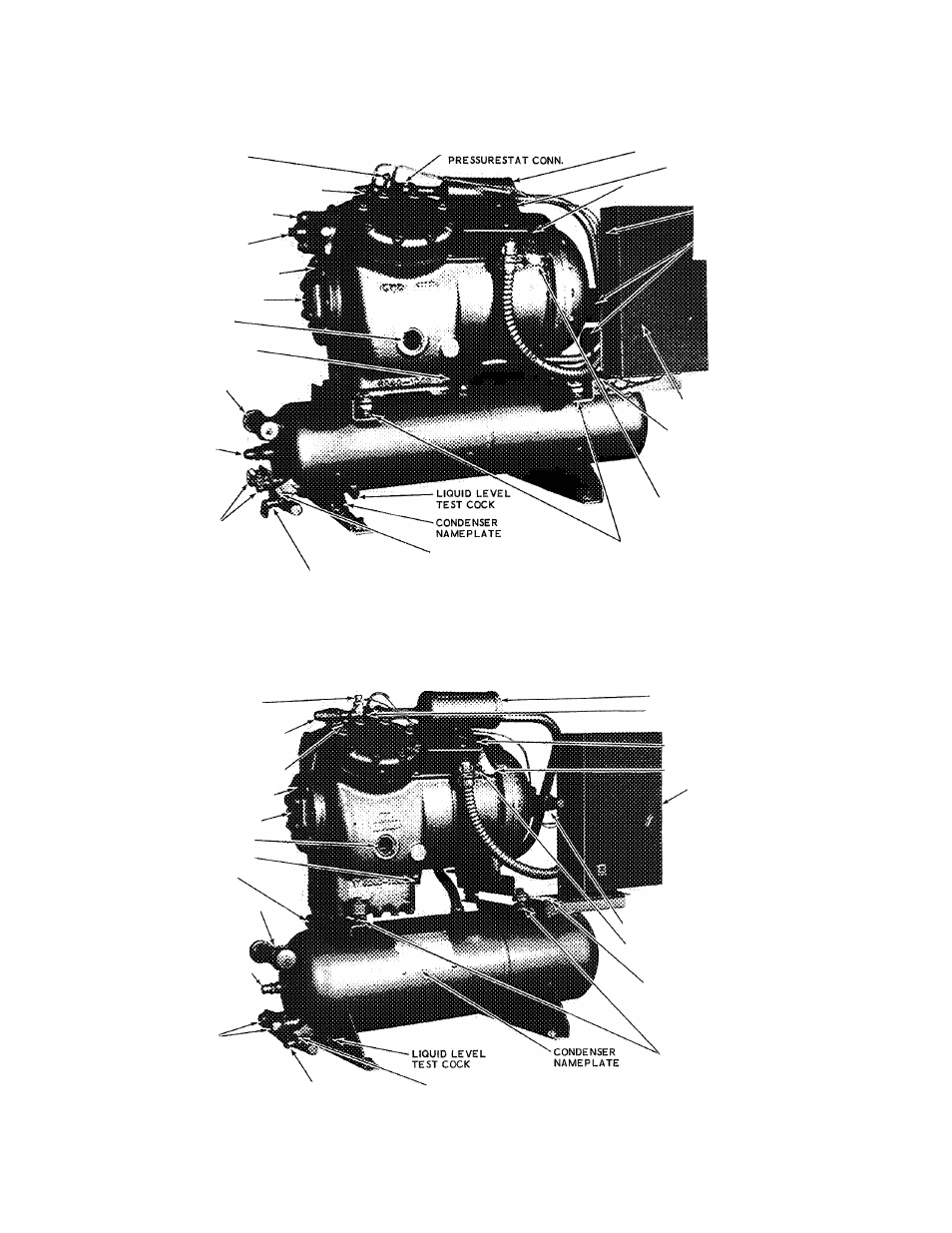

Fig. 2 - Typical 4 Cylinder Water-Cooled Condensing Unit
(07DA103, Single-Phase Illustrated)
DISCHARGE GAGE
CONN.
DISCHARGE SHUT-OFF
VALVE
SUCTION MANIFOLD
PRESSURESTAT CONN,
PUMP END BEARING
HEAD
OIL PUMP COVER
BULL’S EYE
OIL DRAIN PLUG
PURGE COCK
WATER OUTLET
(COOLING TOWER
ONLY)
FUSIBLE UNION
WATER INLET
(COOLING TOWER)
WATER INLET AND
OUTLET (CITY
WATER
DISCHARGE MUFFLER
DISCHARGE MANIFOLD
PRESSURESTAT CONN.
-TERMINAL BLOCK
REFRIGERANT TAG
CONTROL BOX
'LIQUID LINE
CONN.
■WATER REGULATING
VALVE PRESSURE CONN.
SUCTION SHUT-OFF VALVE
COMPRESSOR NAMEPLATE
CONDENSING UNIT
NAMEPLATE (USE FOR
WARRANTY PURPOSES)
MOUNTING
SPRINGS
(REMOVE BOLTS
BEFORE STARTING)
Fig. 3 - Typical 4 Cylinder Water-Cooled Condensing Unit
(07DA106, Three-Phase Illustrated)
