15.3. Function Assignment to the Contact Inputs
15.3.1. preset memory change
[When in Direct mode]
Step 1. Set the Mode to [Direct] and Function to [Preset].
[When in Binary mode]
Note: When changing Preset in Binary mode, either output volume control or output mute control can be
assigned to other Pins.
When wishing to change 5 or more Presets using 4 Pins or when the necessary number of Pins cannot be
obtained because some Pins are occupied by other functions, the number of target Presets can be increased
using the less number of Pins when in binary mode.
Assign the necessary Pins to [Binary] mode depending on the number of Presets to use.

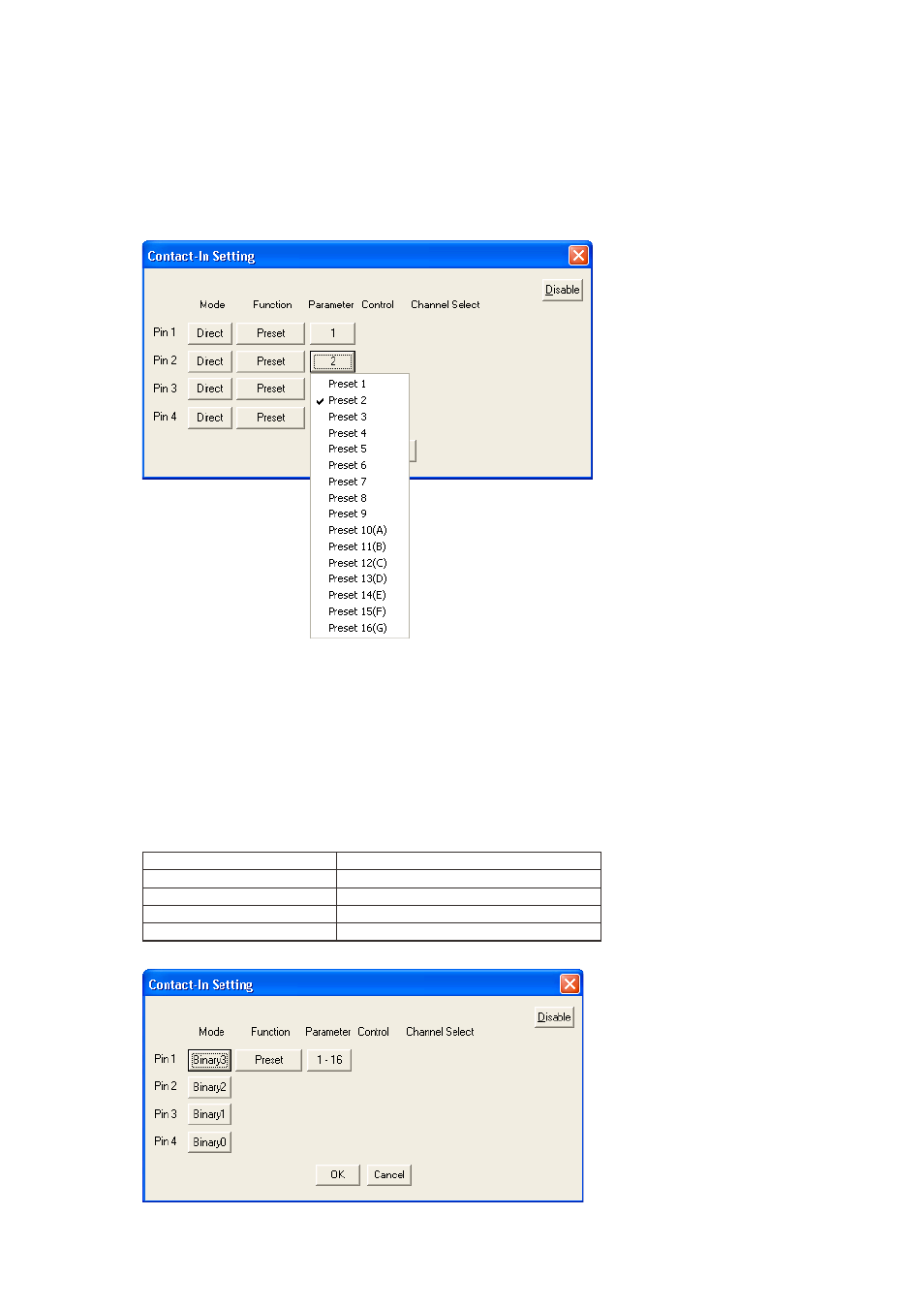

Step 2. Click the Parameter button, then select the Preset number from the pull-down menu.
Pin number(s) in parenthesis is automatically selected.
Number of Presets to use Pin to be selected for [Binary] mode
Presets 1 and 2 Pin 4
Presets 1 through 4 Pin 3, (4)
Presets 1 through 8 Pin 2, (3 and 4)
Presets 1 through 16 Pin 1, (2, 3, and 4)
