8. UNIT OpERATION
8.1. Unit View

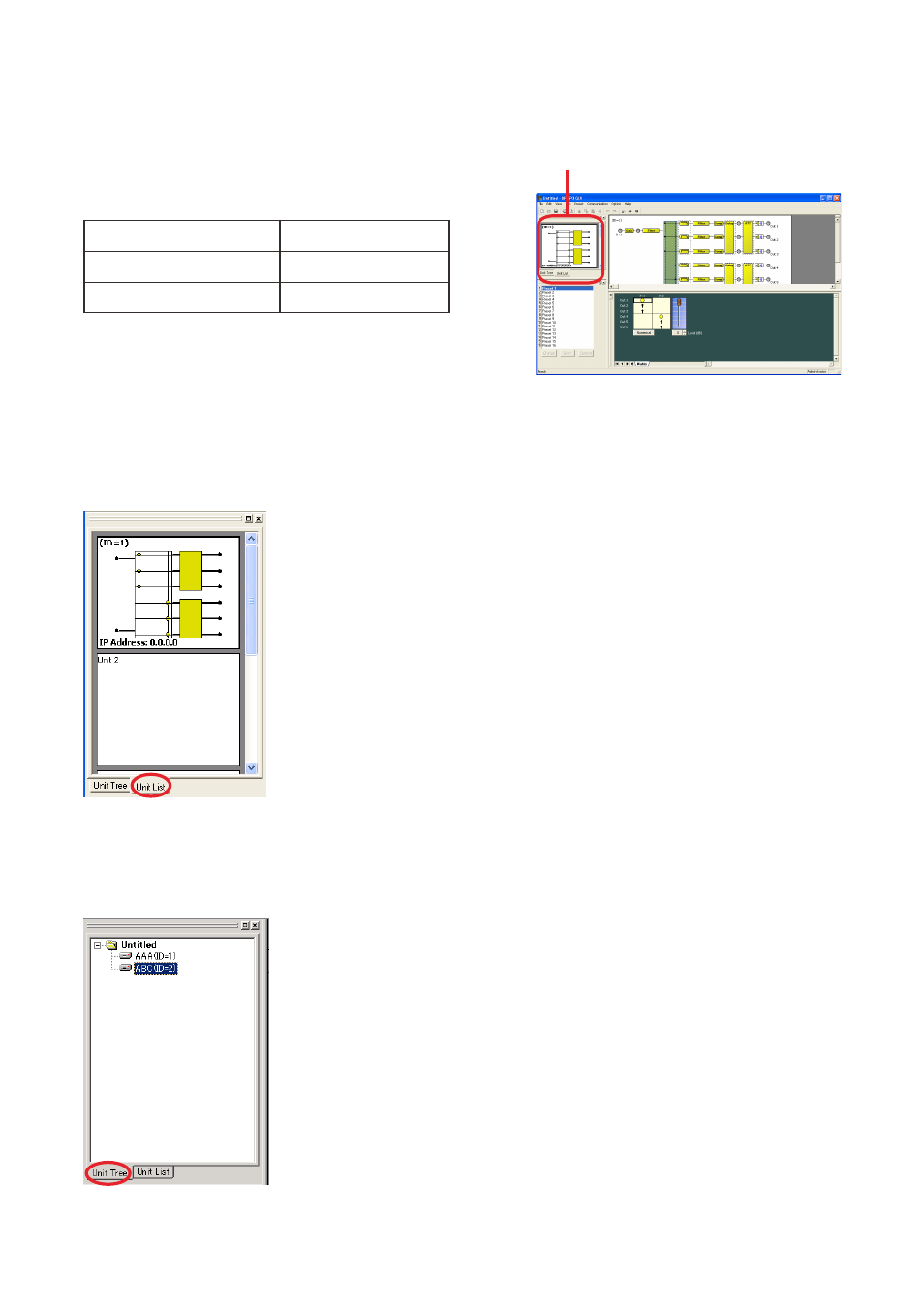

The Unit View is located at the upper left of the main screen.
It displays up to 4 units in a list-view or in a tree-view style,
which can be switched by clicking the tab below.
Display view style Tab name
List-view Unit List
Tree-view Unit Tree
8.1.1. list view
Displays the signal processing images of the unit in a reduced size. (Up to 4 units)
Allows convenient displays of the unit names, numbers of inputs and outputs, matrix settings, and crossover
combinations.
Selecting the created unit by clicking on it displays the selected unit in the flow view as well.
In the List view display, the unit’s copy can be made by dragging and dropping the
created unit onto the blank unit.
8.1.2. Tree view
Each individual unit list is displayed in a tree view. (Up to 4 units)
Clicking the created unit displays the selected unit in a flow view as well.
Unit View
