(3) Measuring data import button
You can simulate crossover settings of the multi-way speaker by importing measuring data obtained by
other measuring software.
Click this button to select the target channel from the pull-down menu.
(4) Measuring data calibration button
Click this button to display a dialog for response display calibration.
Change [Amplitude] to calibrate the amplitude response, and [Receive
Delay] to calibrate the phase response.
(5) Response display area
(6) Response indication button
Click this button to select whether or not to display each channel’s response.
(7) Bypass button
Click this button to select whether or not to add each channel’s response to an overall response.
(8) Color change button
If this button is clicked, a dialog for setting color is displayed, allowing
the display color of each channel’s response curve to be changed.
(9) Overall characteristic indication button
Click this button to select whether or not to display an overall response comprised of added responses of
each channel.

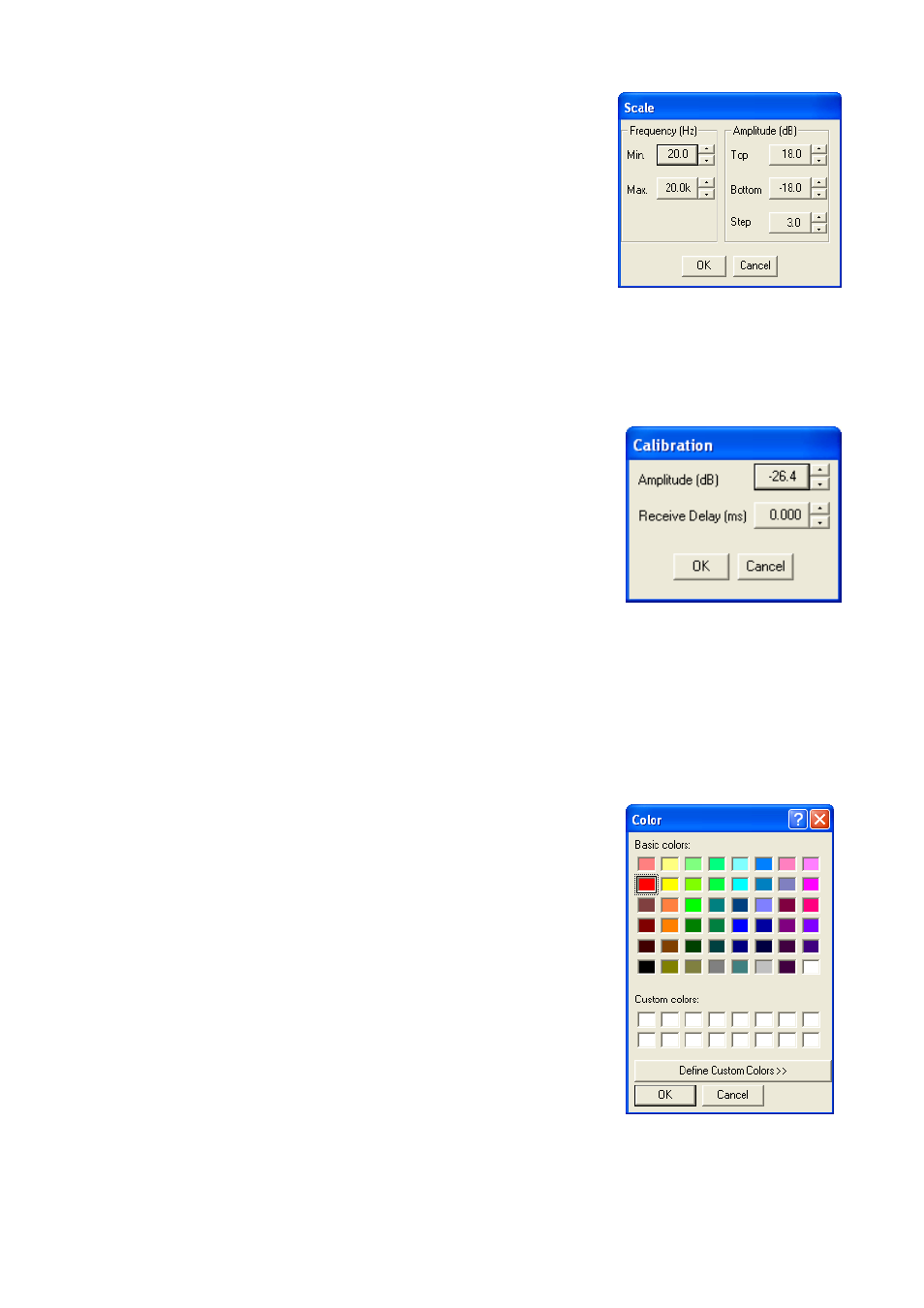

(2) Scale change button
If you click this button, a dialog for scale setting is then displayed and
the graph scale of the response control can be changed.
