(4) Input selection button [Output 1 − 6]
Click this button to select either ON or OFF of response display of each output channel, or input channel
from the pull-down menu.
(5) Color change button
If this button is clicked, a dialog for color setting is displayed, permitting the
display colors of response curves of each channel to be changed.

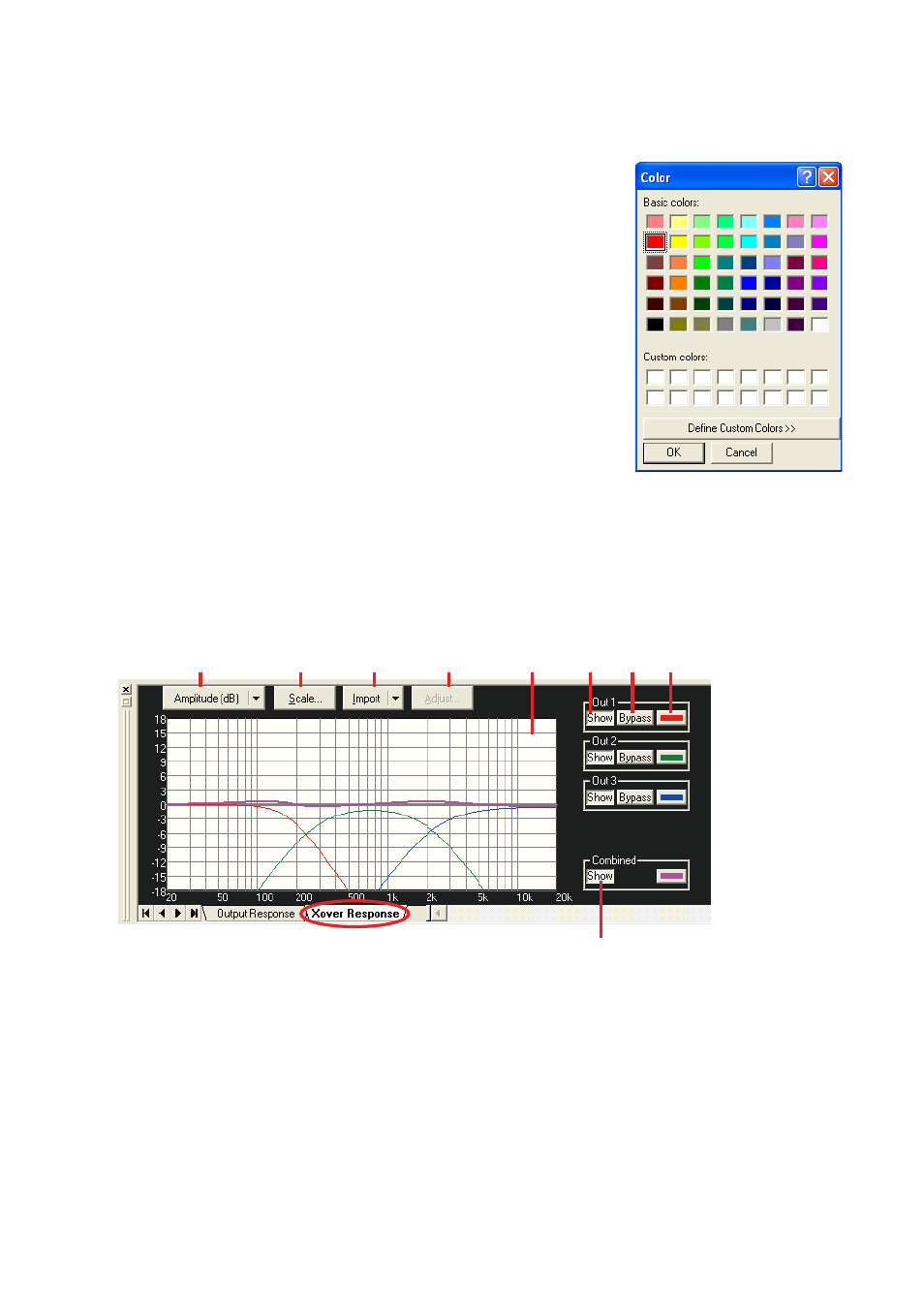

8.5.2. Xover response view
Displays crossover and filter response curves.
Displays each channel response, as well as their added overall response.
Displays the amplitude response, phase response, and group delay response.
(1) (2) (3) (4) (5) (6) (7) (8)
(9)
(1) Response indication selection button
Displays the type of frequency response being currently displayed.
If this button is clicked, the type of frequency characteristic to be displayed can be selected from the pull-
down menu.
There are a full-screen display that displays any one of amplitude, phase and group delay responses, and
a dual-split screen display that displays two of these 3 characteristics.
