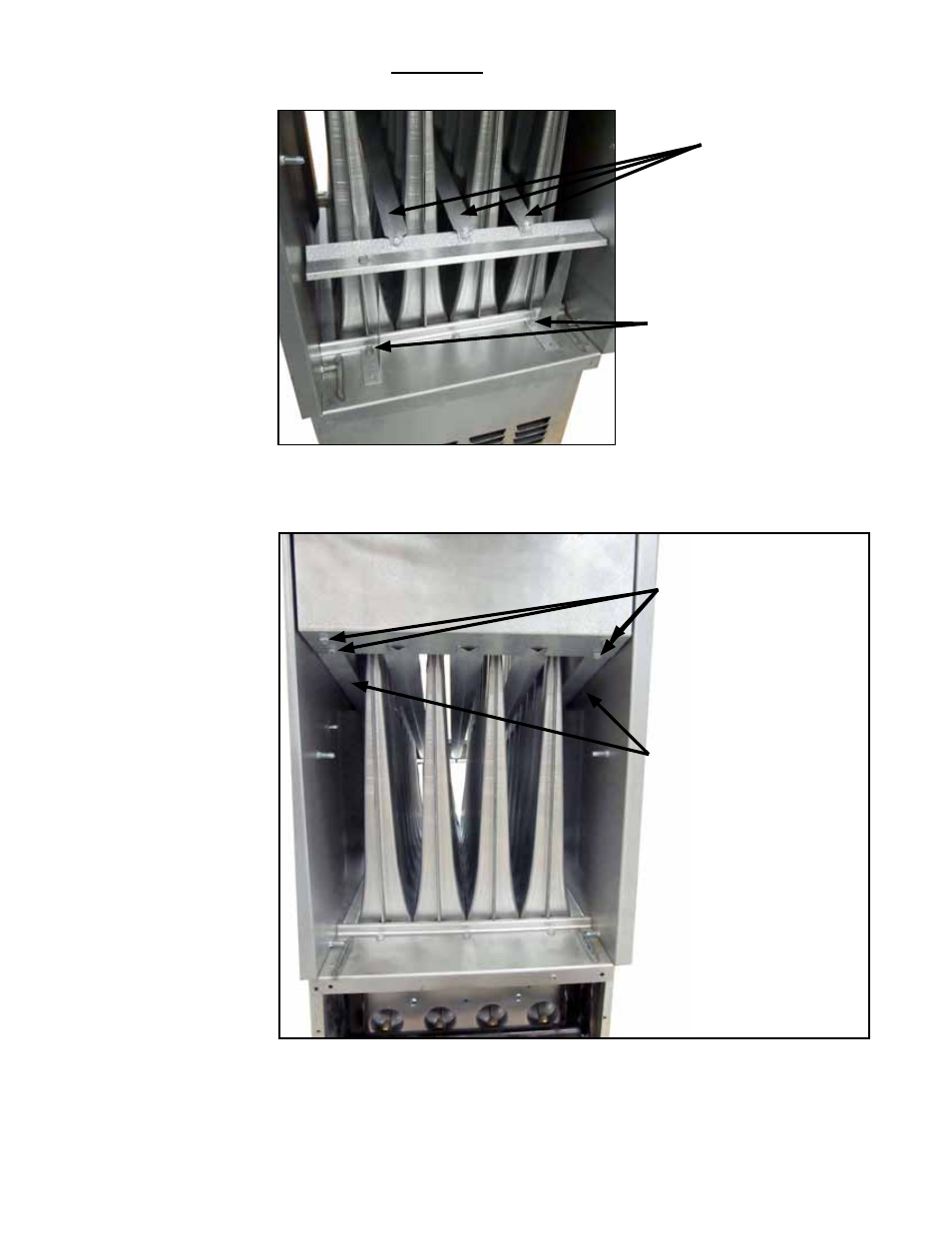

FIGURE 23 - Discharge
Air End of the Heat
Exchanger showing the
Baffle Assembly to be
Removed
3. Remove the Side Finger Baffles – Refer to FIGURE 24 showing the entering
air side of the heat exchanger (baffles shown in
FIGURE 23 have already been
removed). Identify the side finger baffles. Remove both side baffles; each baffle is
attached with two screws.
Remove the support
bracket screws and slide
the baffle assembly out
of the heat exchanger.
Replace the screws to
plug the holes.
Baffles (Remove
with the supports
as an assembly.)
Conversion is complete.
4. Select a location adjacent to the rating plate for the conversion label. Being sure
the surface is clean and dry, adhere the conversion label that was completed in
Step 1.
Test for proper operation. Be sure to comply with the air throughputs in the table on
page 29.
FIGURE 24 - Entering
Air End of the Heat
Exchanger showing the
Side Finger Baffles to
be Removed
Remove the two
screws from each
of the side finger
baffles. Remove both
baffles.
Heat exchanger side
finger baffles being
removed
Converting Model RP Duct Furnace for Lower Temperature
Rise and Higher CFM Application (cont'd)
