RED DSMC POWER OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0038, REV-F | 35

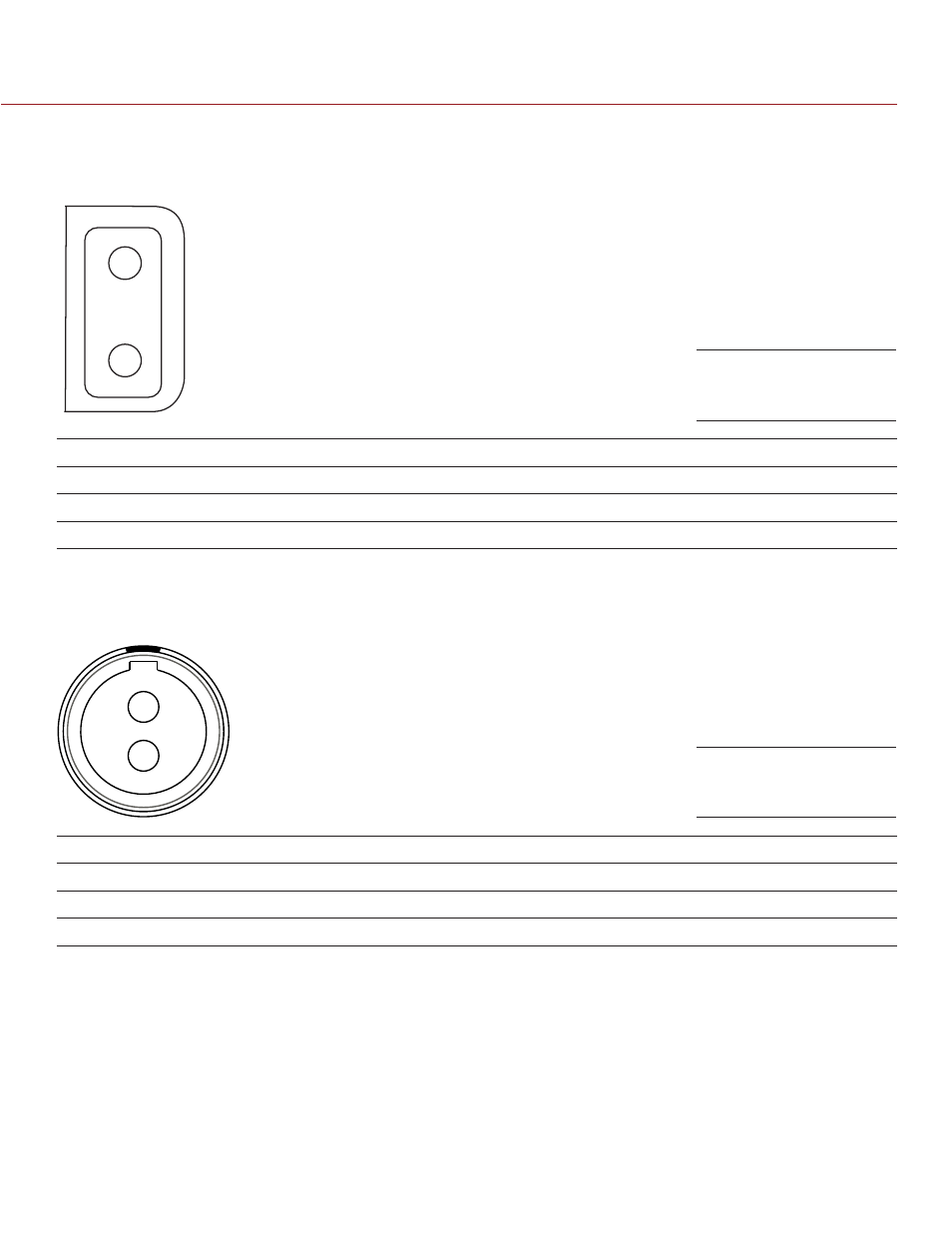

BACKPACK QUICKPLATE CONNECTORS
The Backpack Quickplate offers one (1) D-Tap connector that provides power (70 W max) for camera acces-
sories.
2
1
2-PIN DTAP CONNECTOR
PIN SIGNAL
1 Ground
2 +12 VDC
BACKPACK QUICKPLATE (SHORT) CONNECTORS
The Backpack Quickplate (Short) offers two (2) 0B 2-pin AUX ports that provide a maximum combined output
of 3.8 A.
1
2
2-PIN 0B LEMO AUX CONNECTORS 1
PIN SIGNAL
1 Ground
2 +12 VDC
1. Mating connector: EEG.0B.302.CLL
Backpack Quickplate
D-Tap Connector
Backpack Quickplate
(Short) AUX Connector
