DSMC ADAPTOR MODULES
This section describes the DSMC adaptor modules.
MODULE ADAPTOR
The Module Adaptor mounts to the back of the BRAIN and provides power and support for connected mod-
ules. The Module Adaptor includes 1/4-20 mounting holes for customized configuration support. Most DSMC
modules require the use of an adaptor module.
WARNING: The Module Adaptor is NOT compatible with the +1 Adaptor Module.
+1 ADAPTOR MODULE
The +1 Adaptor Module mounts to the back of the BRAIN, providing power and support for connected modules.
The +1 Adaptor Module also offers a 4-pin 0B LEMO auxiliary power (DC) port for camera accessories, and an
EVF/LCD port for the use of an additional viewfinder or display.
WARNING: The +1 Adaptor Module IS NOT compatible with the Module Adaptor.
WARNING: DO NOT use the EVF/LCD port on the +1 Adaptor Module if a Pro I/O Module is connected to the
DSMC BRAIN. The Pro I/O Module overrides the EVF/LCD and AUX power out ports when connected.
NOTE: The +1 Adaptor Module requires DSMC firmware v4.0.8 or later.
NOTE: Use a 4-Pin to 2-Pin Adaptor Cable to support 2-pin camera accessories.

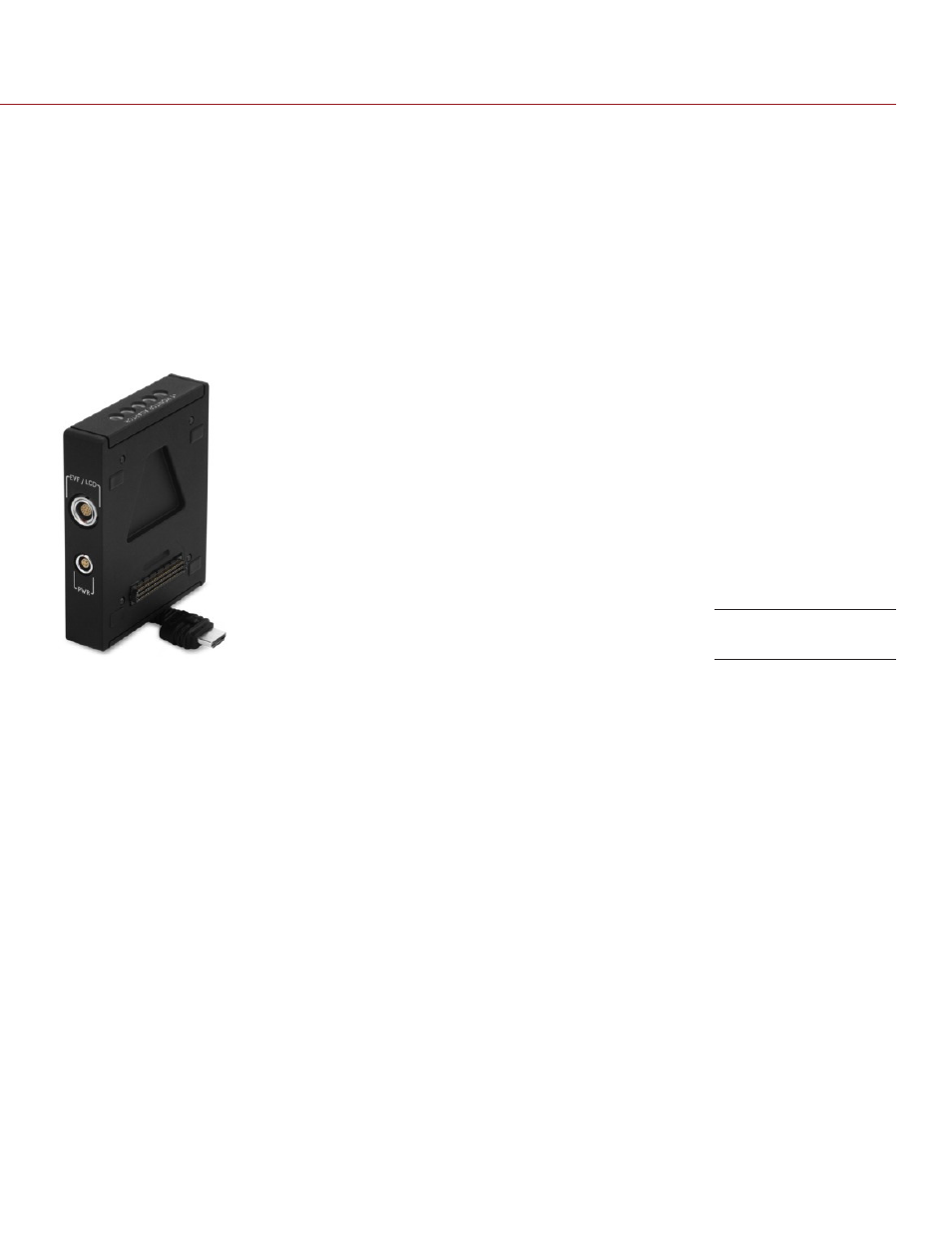

+1 Adaptor Module
