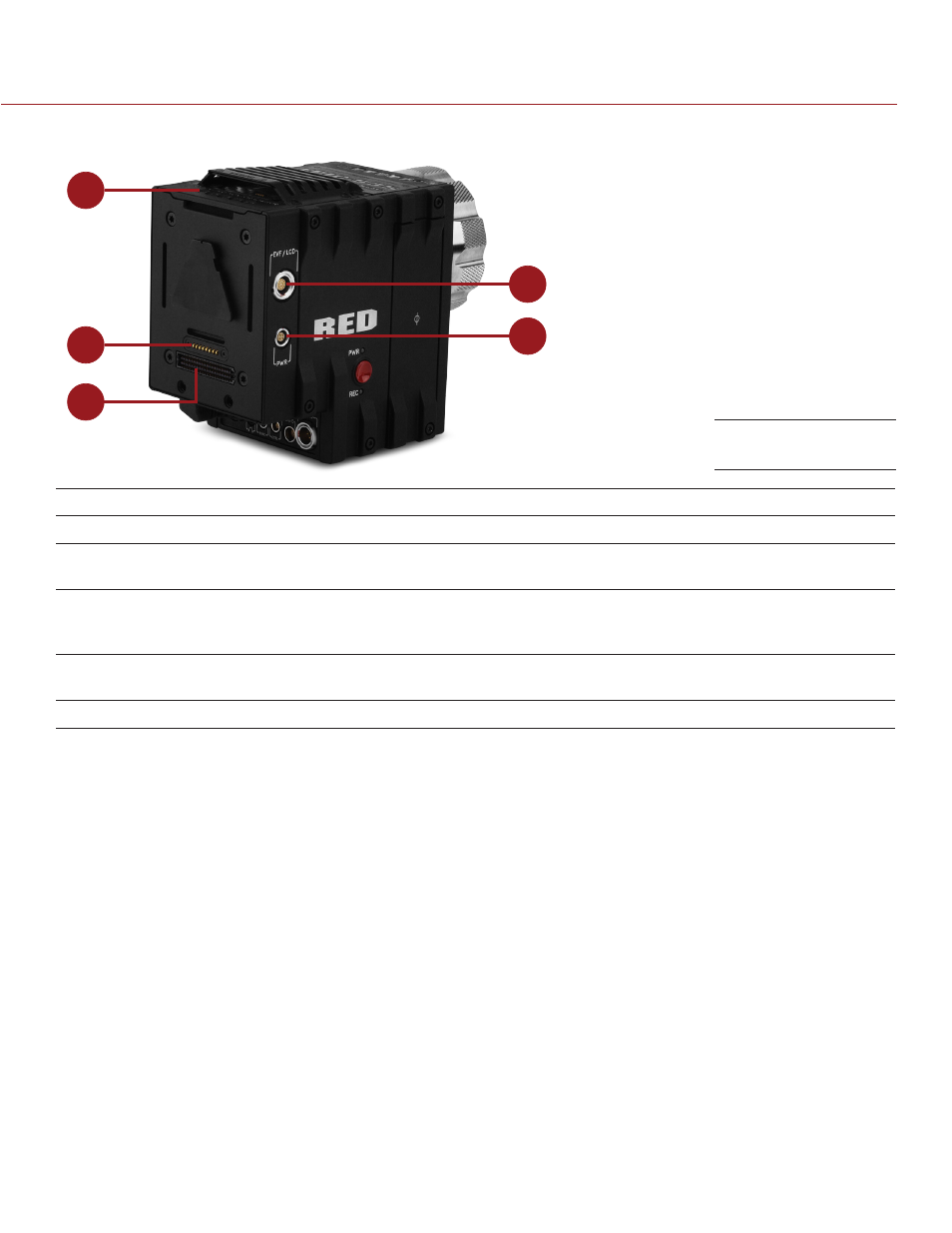

+1 ADAPTOR MODULE CONNECTIONS
1
4
2
5
3
# CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION
1 Mounting 1/4-20 mounting Supports bolt-on auxiliary equipment
2 EVF/LCD 1 N/A Custom digital video and power interconnection between the
BRAIN and RED EVF or LCD; Pinout not published
3 Auxiliary power
out (PWR)
4-pin 0B LEMO Supplies unregulated (+) 11.5 to 17 V battery pass-through;
Connect to 2-pin LEMO accessories with RED 4-Pin to 2-Pin
Adaptor Cable; Max sustained current is 2 A
4 REDMOTE ® dock
connector
8-point POGO
connector
Power and support for the REDMOTE
5 Dock connector SEARAY connector Supports power and communication with modules
1. DO NOT use the EVF/LCD port on the +1 Adaptor Module if a Pro I/O Module is connected to the DSMC BRAIN. The Pro I/O Module
overrides the EVF/LCD and AUX power out ports when connected.
NOTE: The default auxiliary power output setting is on. Use the on-screen menu to toggle this setting ON/OFF.
In the menu screen, go to: Power > Power Out > +1 PWR. After a DSMC firmware upgrade or factory reset, the
default auxiliary power output setting is turned on. Thereafter, the last power output setting is restored.
