RED DSMC POWER OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0038, REV-F | 27
REDVOLT XL MODULE
The REDVOLT XL Module provides flexible mounting and power solutions for the BRAIN. The reversible switch
plate on the REDVOLT XL Module enables you to mount the module to the BRAIN or another module. When the
module is attached to the BRAIN, a connected REDVOLT XL battery powers the system. REDVOLT XL batteries
are hot swappable when power is also provided via the DC IN port or using a REDVOLT and DSMC Side Handle
A protective baseplate is included with the REDVOLT XL Module to protect the module while it serves as a por-
table battery charger. The module is capable of charging a REDVOLT XL battery while connected to the BRAIN,
as long as it is turned off. A 2-pin 0B LEMO AUX POWER OUT
NOTE: The REDVOLT XL Module ONLY supports REDVOLT XL batteries. DO NOT use a REDVOLT battery.
NOTE: The REDVOLT XL Module requires DSMC firmware v5.1.29 or later.

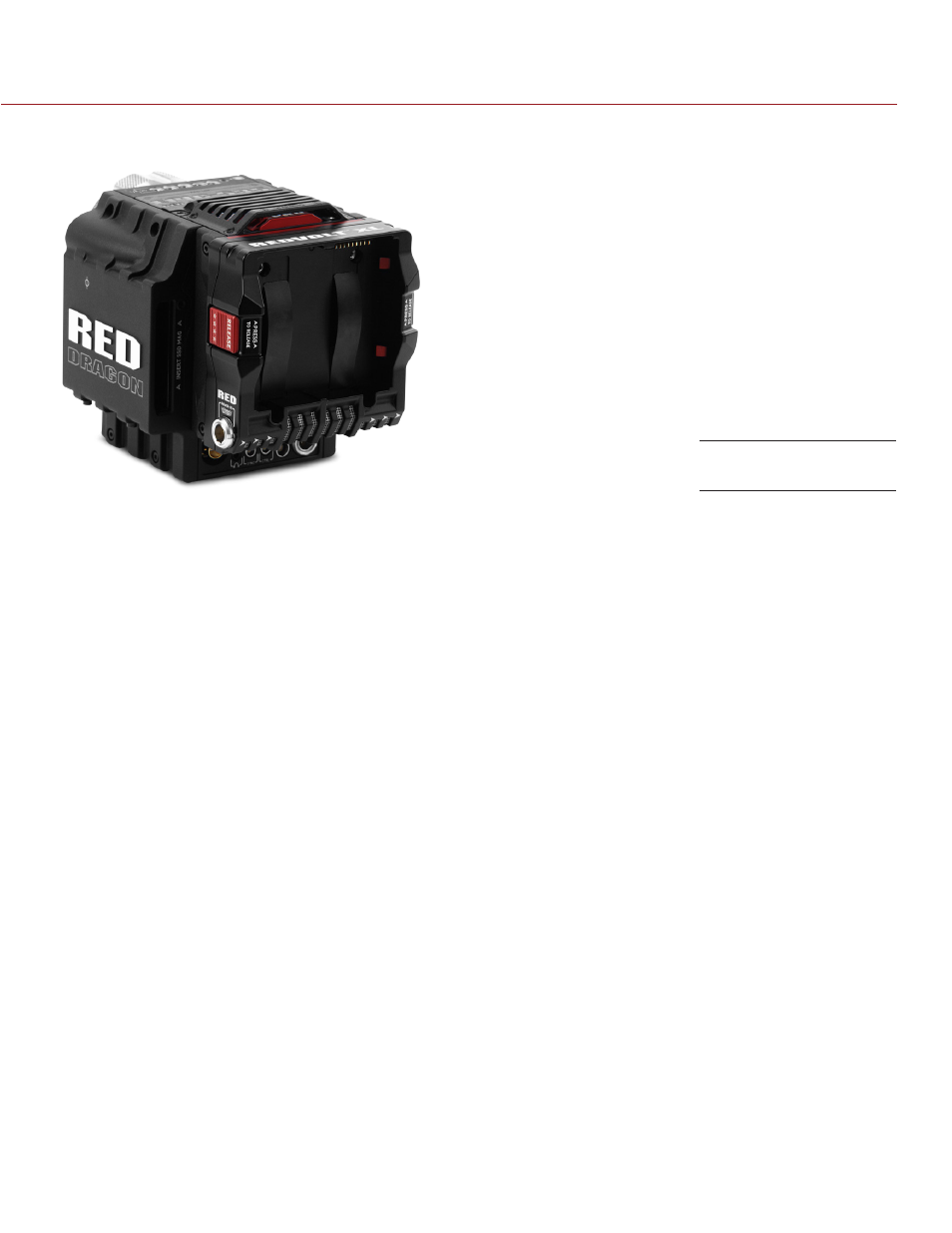

REDVOLT XL Module
