Page 28
COPYRIGHT © 2014 RED.COM, INC
RED DSMC POWER OPERATION GUIDE
955-0038, REV-F
|
28

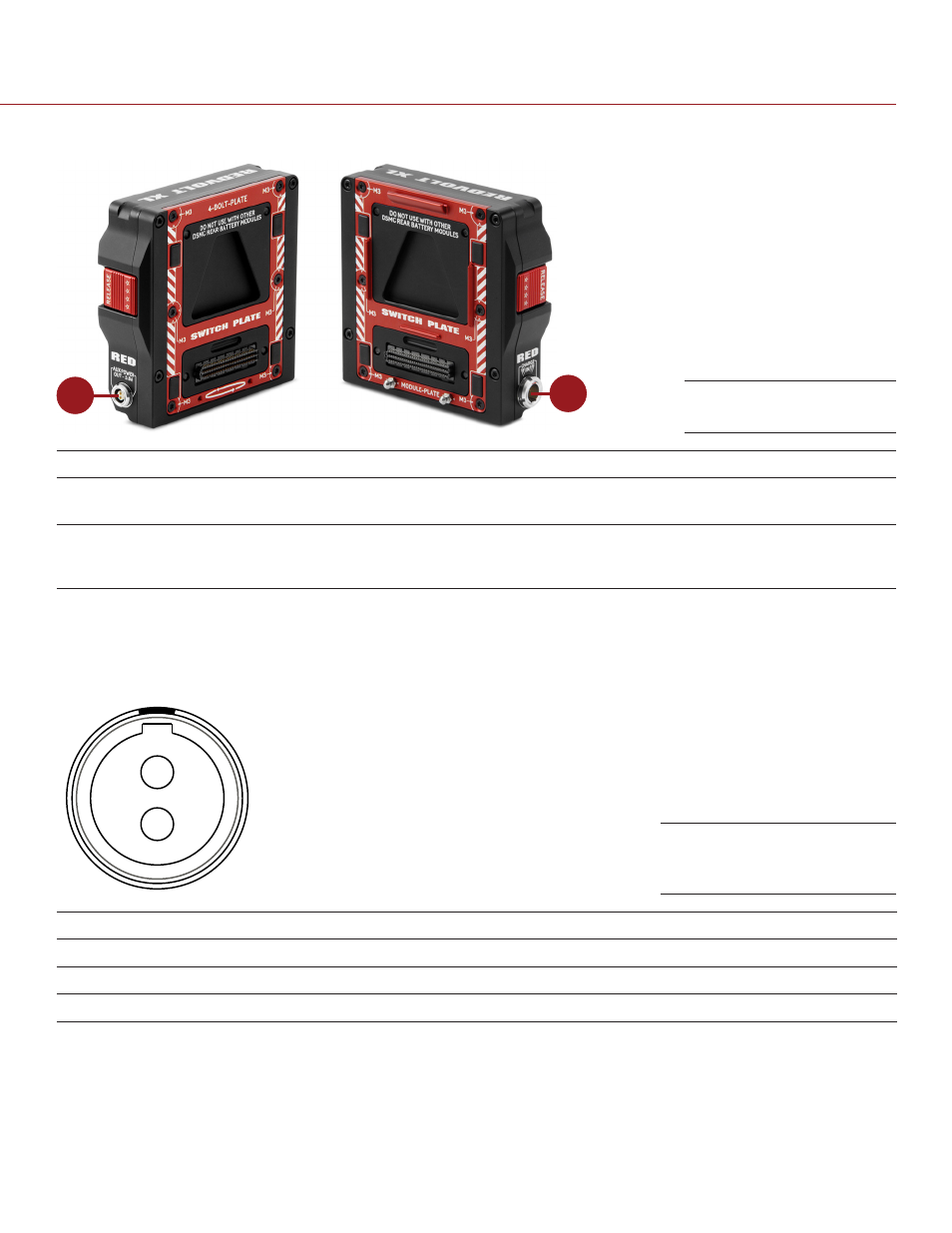

REDVOLT XL MODULE CONNECTIONS
2
1
#
CONNECTOR
CONNECTOR TYPE
CONNECTOR FUNCTION
1
AUX POWER OUT -
3.8 A
2-pin 0B LEMO
Provides 3.8 A max current out for 2-pin based acces-
sories when the module is receiving power
2
CHARGE IN
6-pin 1B LEMO
Provides power to the REDVOLT XL Module, the AUX
POWER OUT port, and an approximate 2 A charge cur-
rent to an attached REDVOLT XL battery
AUX POWER OUT
The 2-pin 0B LEMO AUX POWER OUT port provides a maximum 3.8 A of current for camera accessories.
NOTE: The AUX POWER OUT port is always active whenever a REDVOLT XL battery is attached to the module,
regardless of camera state or presence of a DC power source.
1
2
2-PIN 0B LEMO AUX POWER OUT CONNECTOR
1
PIN
SIGNAL
1
Ground
2
+12 VDC
1. Mating connector: EEG.0B.302.CLL
REDVOLT XL Module
AUX POWER OUT
Connector
