RED DSMC POWER OPERATION GUIDE
955-0038, REV-F | 26
PRO BATTERY MODULE (QUAD)
The Pro Battery Module (Quad) harnesses the power of four (4) REDVOLT batteries or two (2) REDVOLT XL bat-
teries. Similar to the Pro Battery Module (Dual), this module enables hot swap support for continuous power to
the BRAIN without missing a shot. The module also offers 1/4-20 mounting points for configuration support..
For installation and removal instructions go to
“DSMC Power Module Operations” on page 23 .
WARNING: DO NOT use more than one (1) DSMC battery module at a time. Using multiple battery modules may
damage the camera BRAIN and is not covered under warranty.
NOTE: A Module Adaptor or +1 Adaptor Module is required to mount this module to the BRAIN.
NOTE: The Pro Battery Module (Quad) does not charge batteries.
PRO BATTERY MODULE (QUAD) LEDS
Each battery compartment has an LED and battery eject button to show the corresponding battery status.
COLOR/FLASHING DESCRIPTION
Off No battery
Green Battery is charged, but is not in use
Green flashing Battery in use
Red Battery needs to be recharged
Red flashing Battery has five (5) minutes of run time remaining
Amber flashing Battery has 10 minutes of run time remaining; Accessing media (when formatting)
INSERT A BATTERY
1. Align and insert the selected REDVOLT or REDVOLT XL battery.
2. Apply pressure to the battery until a click is heard, signalling the battery is properly seated.
REMOVE A BATTERY
1. Press the Eject button(s) to release a battery from the module.
‒ REDVOLT: Press the Eject button next to the desired battery.
‒ REDVOLT XL: Press both Eject buttons next to the battery.
2. Remove the battery.

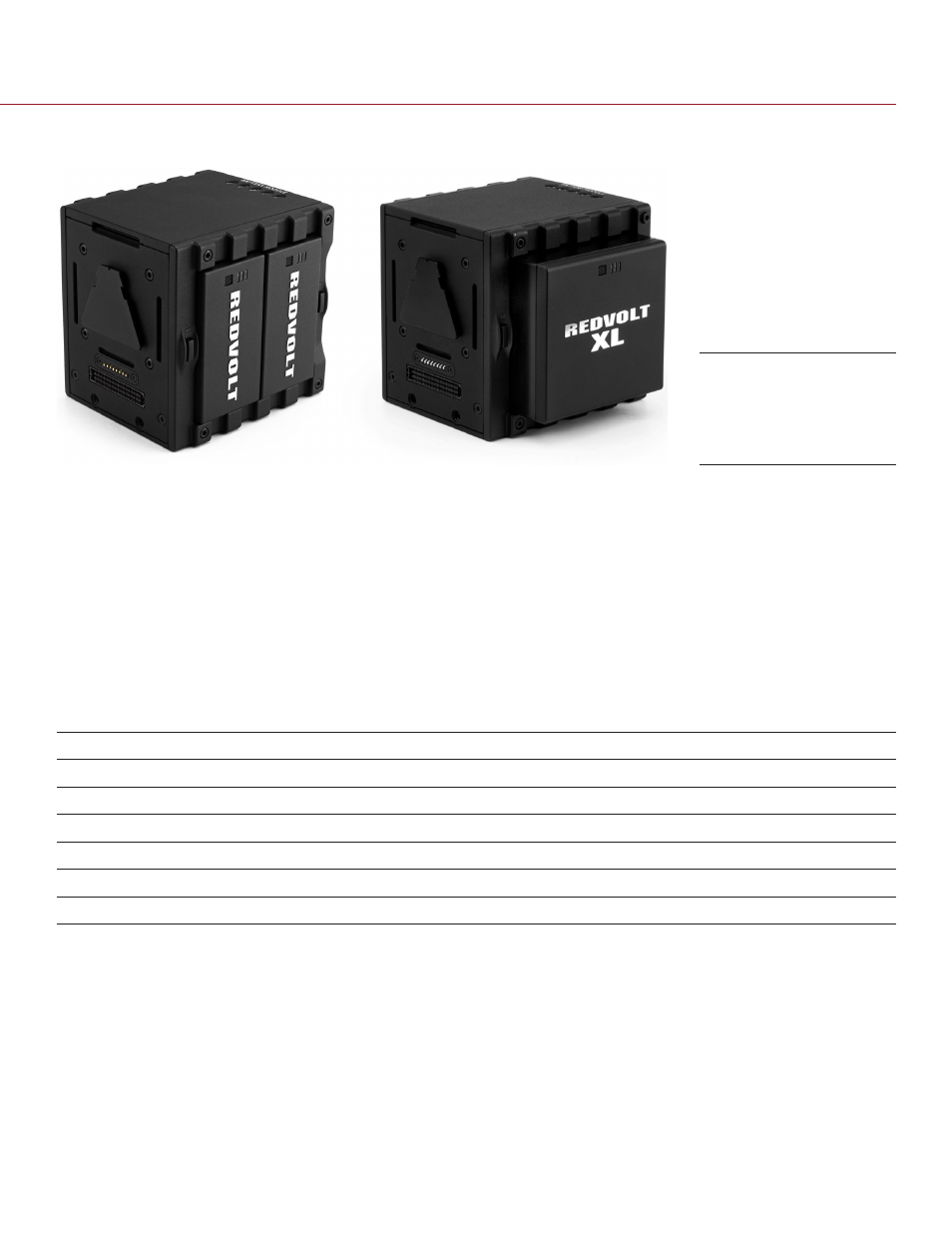

Pro Battery Module
(Quad) with REDVOLTs
(left) and REDVOLT XL
(right)
