RED DSMC POWER OPERATION GUIDE

955-0038, REV-F

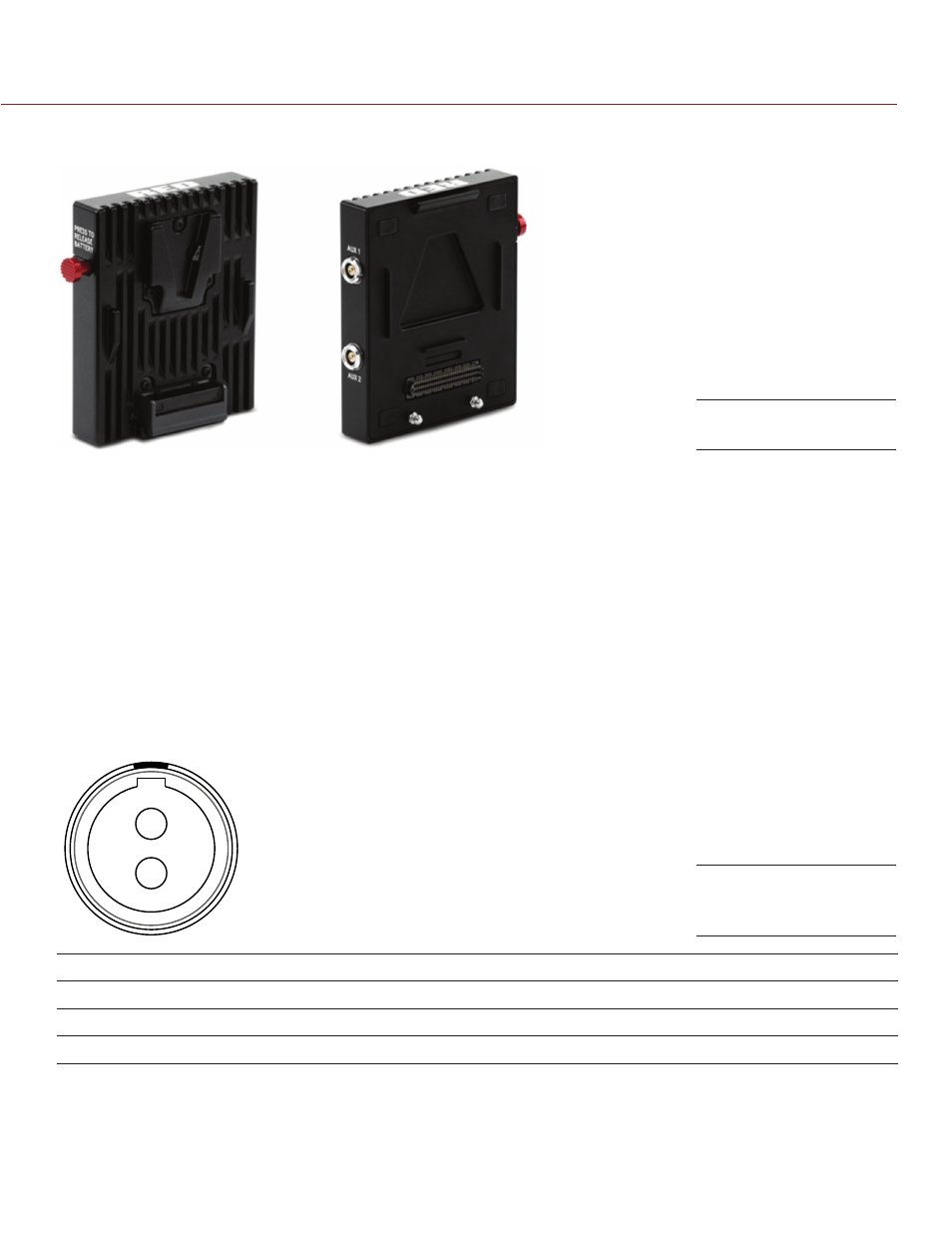

QUICKPLATE MODULE

The Quickplate Module attaches to a +1 Adaptor Module or Module Adaptor to provide RED BRICK power sup-

port for the DSMC BRAIN. Unlike the Backpack Quickplate, the Quickplate Module does not require a LEMO

connector cable or Backpack Baseplate. Use a battery-equipped DSMC Side Handle or an AC Power Adaptor

(DSMC) to keep the camera running while hot swapping batteries.
The Quickplate Module also provides two (2) auxiliary ports to provide power for camera accessories. AUX ports

draw power from an attached RED BRICK if one (1) is attached. If a RED BRICK is not attached, ports draw

power from the BRAIN through the SEARAY connector.
NOTE: The Quickplate Module requires DSMC firmware v5.1.14 or later.

QUICKPLATE MODULE CONNECTORS

The Quickplate Module is designed with two (2) industry-standard 2-pin 0B AUX ports to power camera ac-

cessories when shooting. The two (2) auxiliary connectors provide a maximum combined output of 3.8 A. For

example, if one (1) port is drawing 2 A, the other can provide up to 1.8 A.
NOTE: Align the key and red mark on the AUX port with the key on the cable connector to connect.

1
2

2-PIN 0B LEMO AUX CONNECTORS

PIN

SIGNAL

Ground

+12 VDC

1. Mating connector: EEG.0B.302.CLL

Quickplate Module

AUX Connector
