PRO BATTERY MODULE (DUAL)

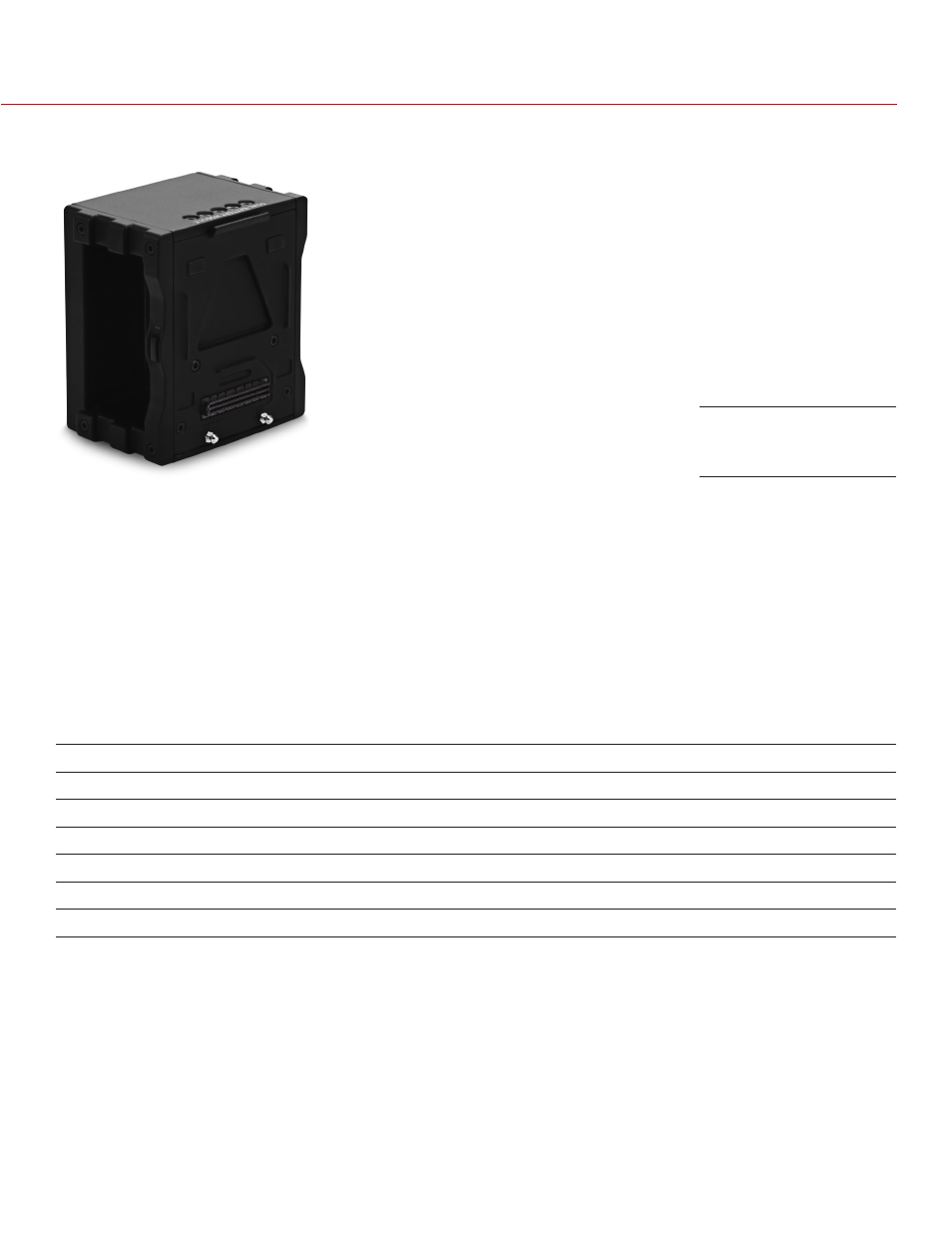

The Pro Battery Module (Dual) provides power to the BRAIN using two (2) REDVOLT batteries. The Pro Battery
Module (Dual) also supports hot swapping of REDVOLT batteries. Attaching outrigger handles and other tactical
gear is convenient using the 1/4-20 mounting points on the top of the module.
For installation and removal instructions, go to
“DSMC Power Module Operations” on page 23 .
WARNING: DO NOT use more than one (1) DSMC battery module at a time. Using multiple battery modules may
damage the camera BRAIN and is not be covered under warranty.
NOTE: A Module Adaptor or +1 Adaptor Module is required to mount this module to the BRAIN.
NOTE: The Pro Battery Module (Dual) does not charge batteries.
PRO BATTERY MODULE (DUAL) LEDS
Both battery compartments have an LED and battery eject button to show the corresponding battery status.
COLOR/FLASHING DESCRIPTION
Off No battery
Green Battery is charged, but is not in use
Green flashing Battery in use
Red Battery needs to be recharged
Red flashing Battery has five (5) minutes of run time remaining
Amber flashing Battery has 10 minutes of run time remaining; Accessing media (when formatting)
INSERT A BATTERY
1. Align and insert the REDVOLT battery.
2. Apply pressure to the battery until a click is heard, signalling the battery is properly seated.
REMOVE A BATTERY
1. Press the Eject button to release the REDVOLT from the module.
2. Remove the battery.
Pro Battery Module
(Dual)
