Config
+ Allows the device to be switched between rack and foh modes. Note: The interface will automatically switch to
foh mode if a DMX512 input board is detected on one of the Ethernet ports.
S/N
+ Displays the module’s Serial Number.
Network Info
This menu displays errors, status information and network

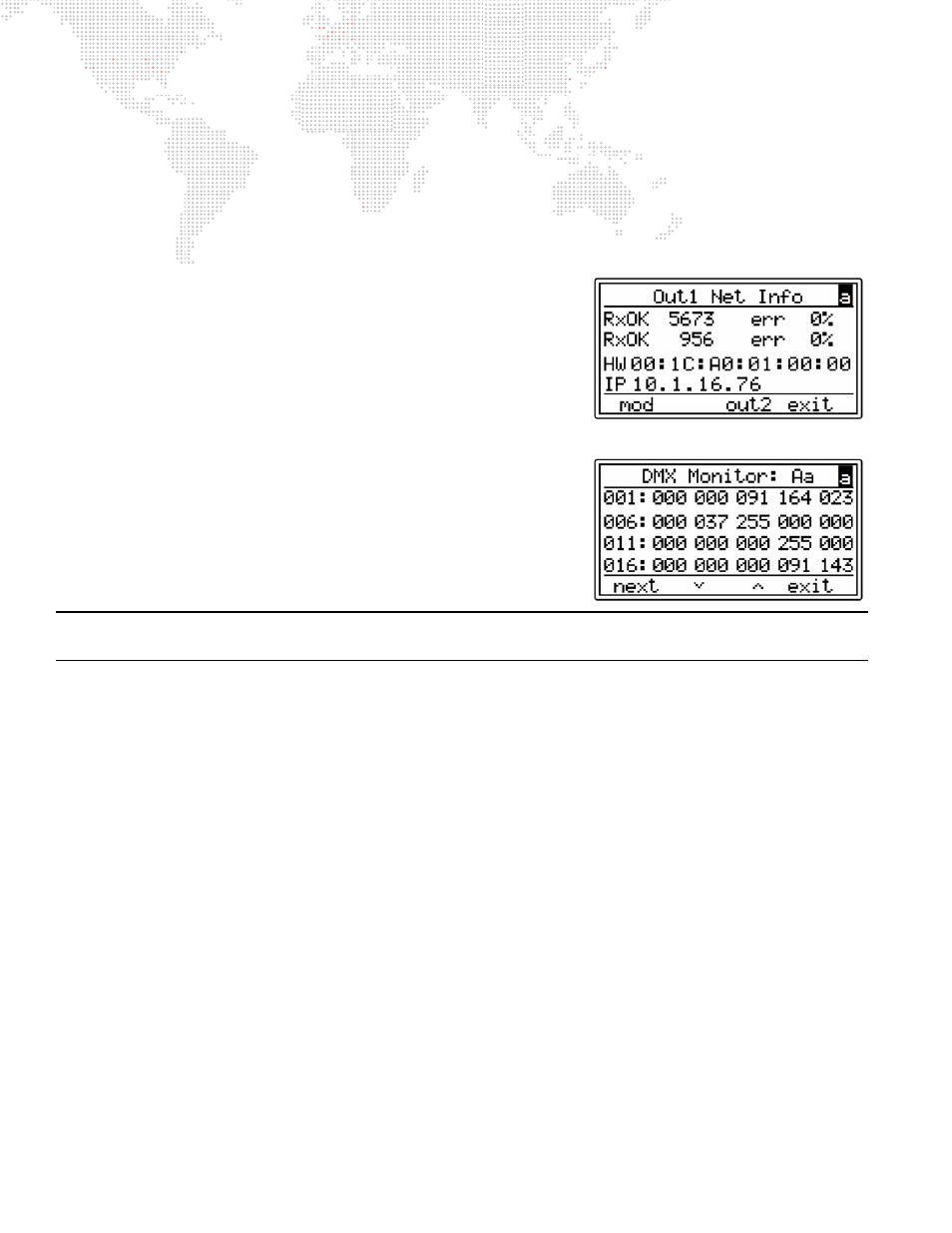

identification information. The menu will display information for
Ethernet (mod), Trunk 1 (out1) and Trunk 2 (out2) communications.
DMX Monitor
This menu shows the current data for a DMX512 universe.
The DMX universe number is shown in the title line (Aa). Press next to
go to the next universe.
The first number of each line is the channel offset, followed by five
channels of DMX512 data. Press the arrow buttons (

) or (

) to see
another twenty of the 512 channels. Press exit to return to the main
menu.
Note: The data is live, but only refreshes approximately every two
seconds.
