30 PRG SERIES 400 ® POWER AND DATA DISTRIBUTION SYSTEM USER MANUAL
The following example system diagrams illustrate an Ethernet Switch being used with a Series 400 Power and Data
Distribution Rack.
Note: Fiber optic connections are available only with the 10-Port Ethernet Switch.

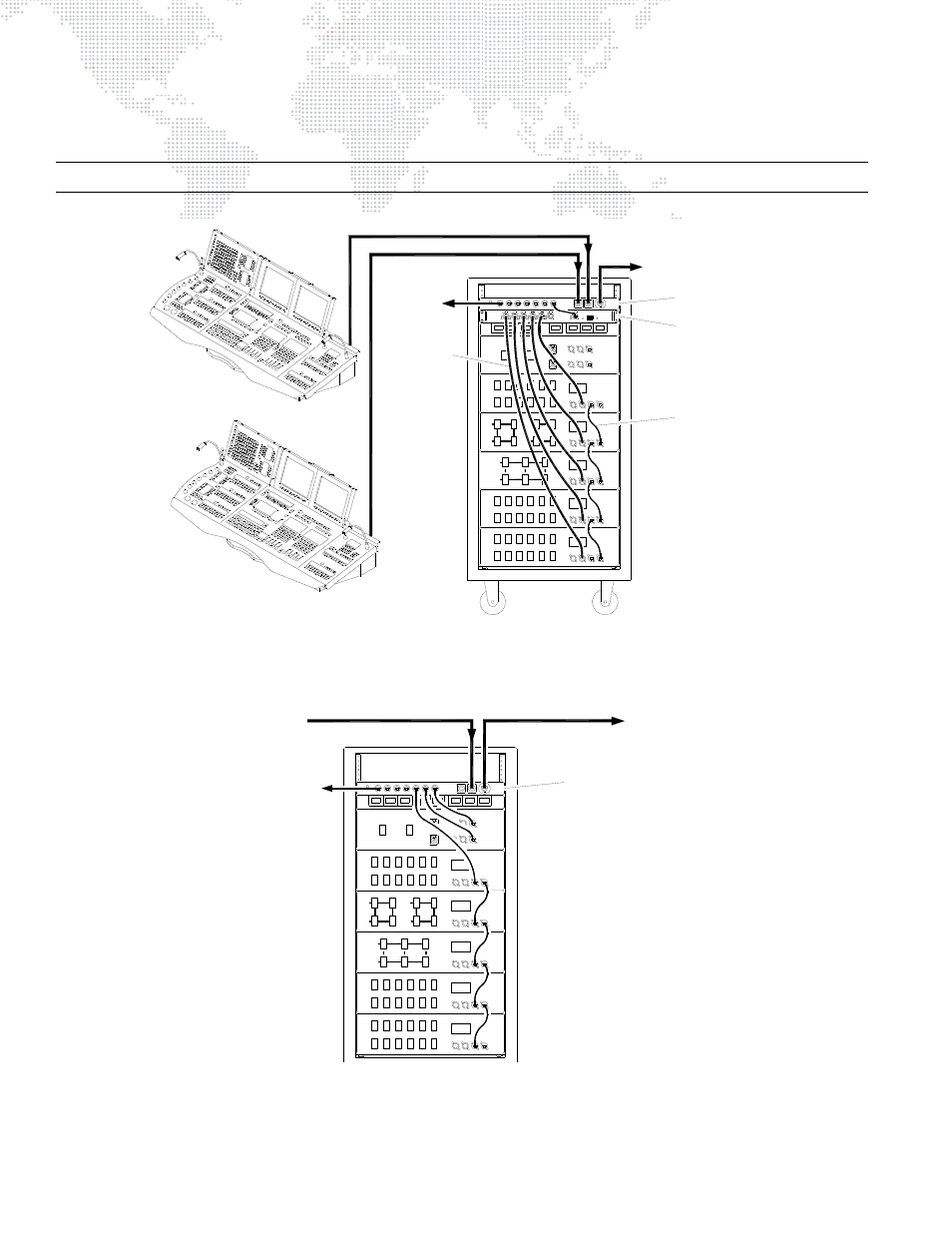

Figure 2-8: Sample Ethernet Switch Connection Diagram 1
Figure 2-9: Sample Ethernet Switch Connection Diagram 2
SERIES 400 RACK
B B
B
A
VIRTUOSO NODE
PRG S-400 10-PORT
ETHERNET SWITCH
A
B
A
A
SWITCHES
TO OTHER
FIBER OPTIC CABLE
FIBER OPTIC CABLE
DEVICES
TO OTHER
VIRTOUSO CONSOLE A
VIRTOUSO CONSOLE B
CAT5e CABLES
DMX UNIVERSE
CABLES
A
B
A
B
CAT5e CABLE TO
LOCAL RACKS
FROM REMOTE RACKS
FIBER OPTIC CABLE
TO REMOTE RACKS
FIBER OPTIC CABLE
B
A
A B
A
B
PRG S-400 10-PORT
ETHERNET SWITCH
