Relay Board (RLY-5)
The panel supports up to thirty-one (31) Relay Boards. each RLY-5 provides five (5) Form-C relay outputs which may be
individually mapped to any zone.
To add and configure a relay board:
Select
1.
RLY-5 from the system panel.
Click the
2.
Add Device button. The “Add Device” window displays.

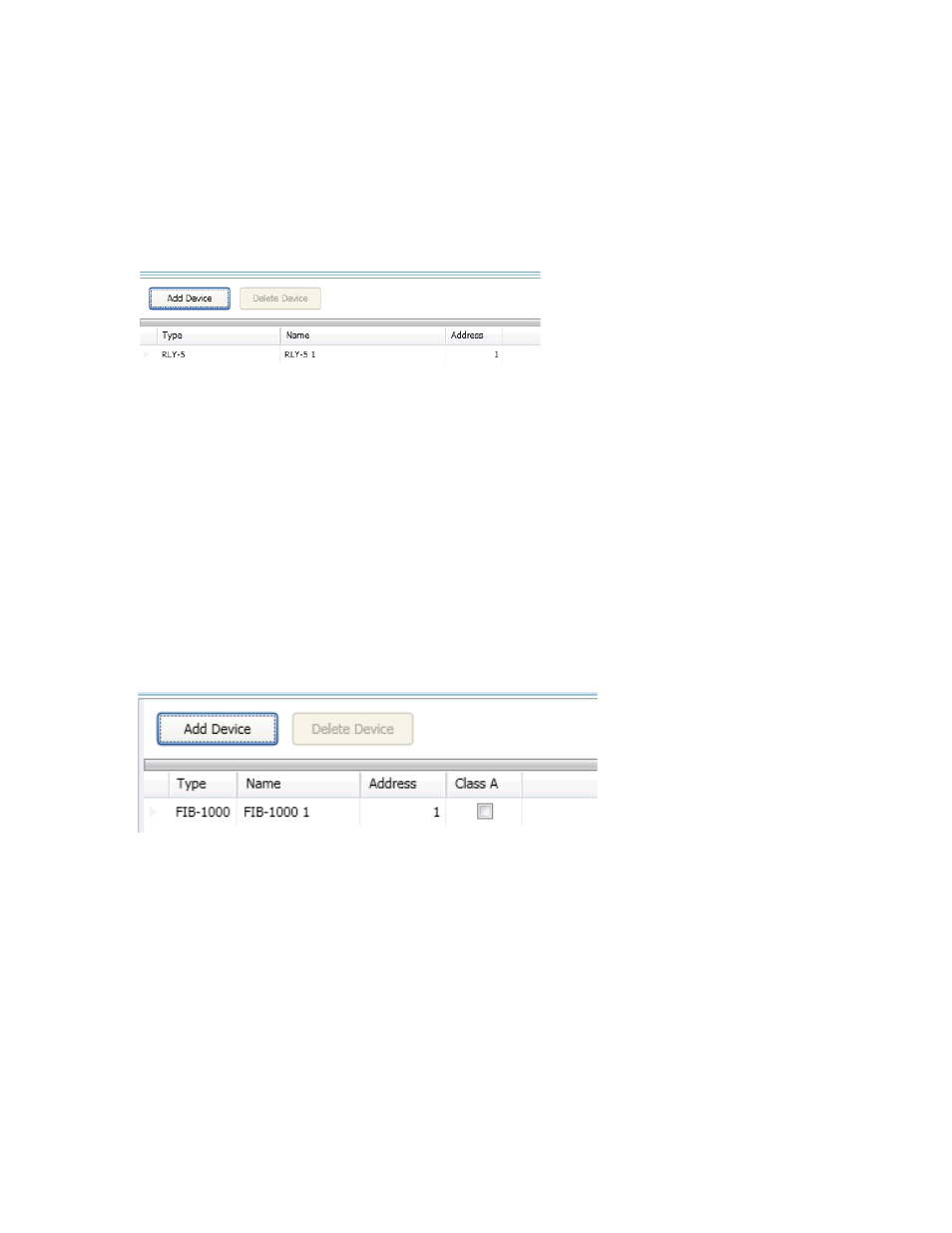

Example of the Add RLY-5 Window
Figure 127.
Double-click in the
3.
“Name” field to customize name.
Double-click in “
4.
Address” field to adjust address, if needed.
Repeat steps, as needed, to continue adding drivers.
5.
Fiber Interface Bridge (FIB-1000)
The panel supports up to thirty (30) FIB-1000 boards. This optional board allows the standard 4-wire P-Link bus to be converted
to and/or from fiber optic cable.
To add and configure the FIB-1000 bridge:
Select
1.
FIB-1000 from the system panel.
Click the
2.
Add Device button. The “Add Device” window displays.
Example of the Add FIB-1000 Window
Figure 128.
Double-click in the
3.
“Name” field to customize name.
Double-click in “
4.
Address” field to adjust address, if needed.
Click in the
5.
"Class A" selection box, if applicable.
Repeat steps as needed, to continue adding FIB-1000s.
