Potter PFC-6075 User Manual
Page 92
5-86
PFC-6075 • 5403593 • Rev C • 2/13
Drag and drop selected points from the
3.
Points' window to the “Device” window. The selected points display in the
“Device” window, as shown below.

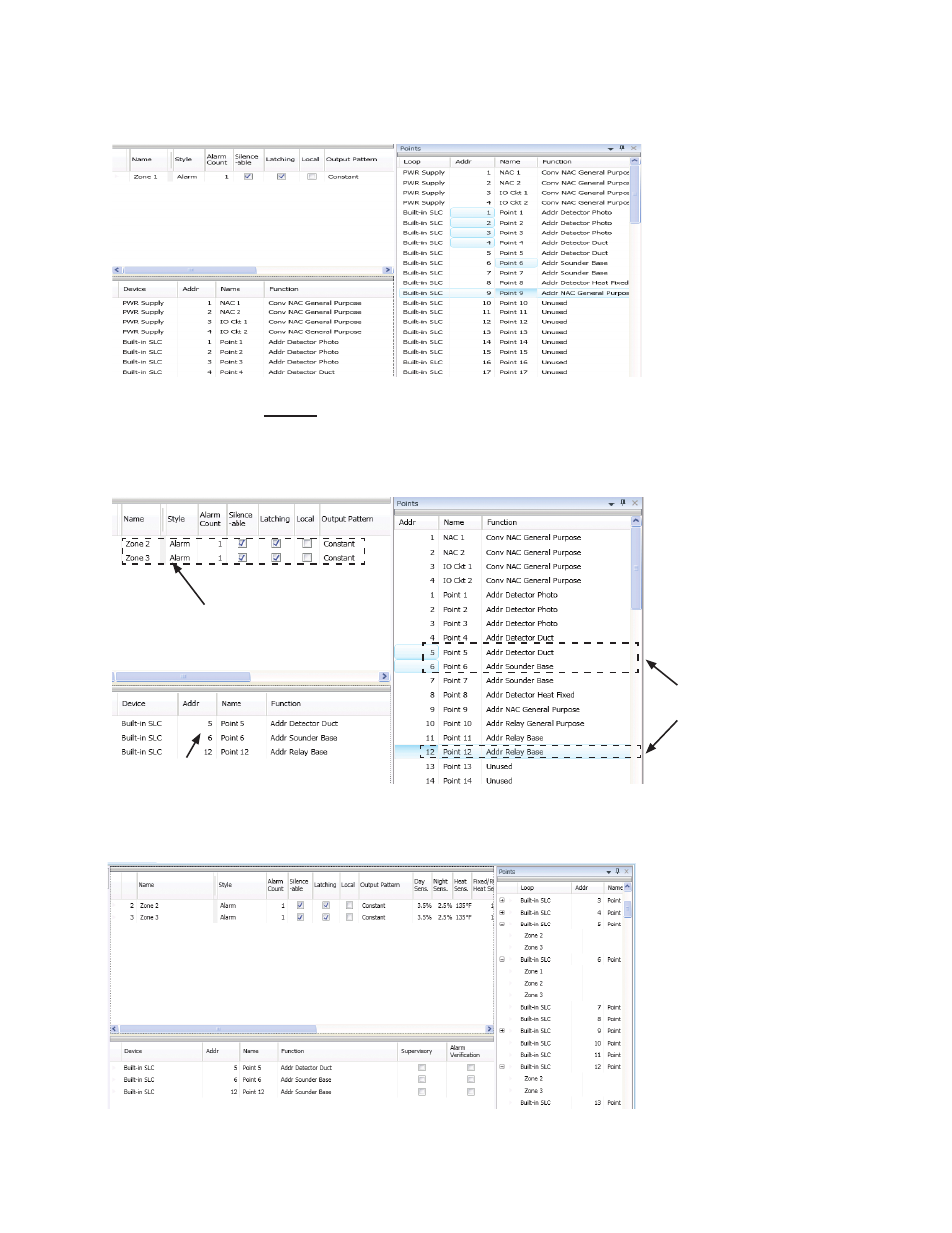

Example of Moving Selected Points into a Zone
Figure 114.
To move one or more points into multiple zones:
Select the applicable Zones in the
1.
Zones window, and select points.
Drag and drop selected points into
2.
Device window.
Example of Moving Selected Points into Two Zones
Figure 115.
Click
3.
“+” in Points window to display point assignment by Zone(s). Click “–” to collapse point assignments.
Example of Expanding Point’s Zone Assignment(s)
Figure 116.
Zones 2 & 3 are
selected in this
example.
Points 5, 6 & 12
are selected.
Points 5, 6 & 12
are configured into
Zones 2 and 3.
