Potter PFC-6075 - Manual (Page 109)

6-103
PFC-6075 • 5403593 • Rev C • 2/13

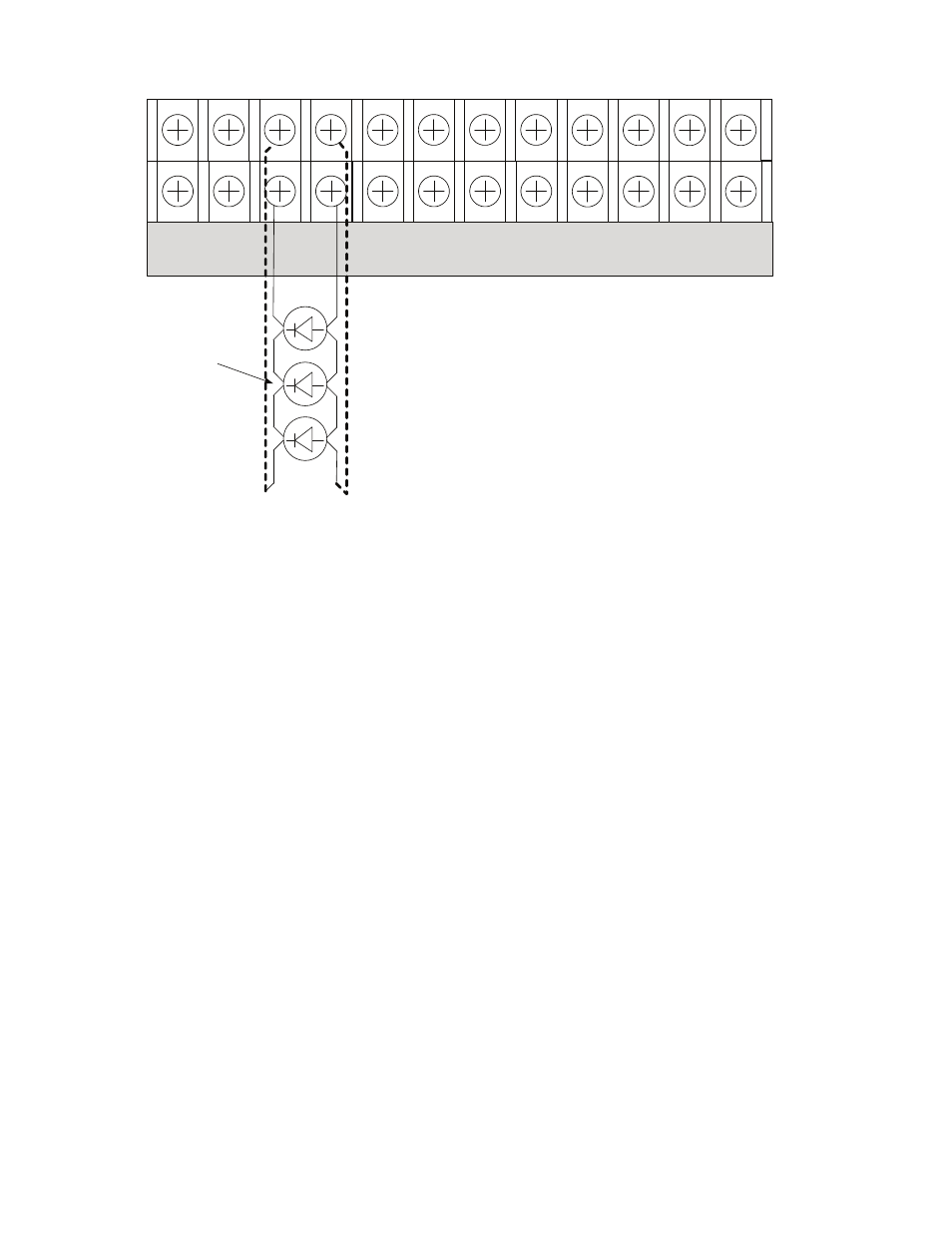

PSN-1000 / PSN-1000 (E) Class A NAC Wiring Example Figure 142.
DWG #602-25
- I1 + - NAC 1 + - NAC 5 + - NAC 3 +
-
+ A B
Notification
Appliance
- I2 + - NAC 2 + - NAC 4 + - NAC 6 +
-
+ A B
P-LINK
