Wiring Types
Wiring specifications must be followed to prevent damage and/or other consequences.
PSN-1000/PSN-1000(E) Board Circuit Wiring Types Table 22:
Type of Circuit
Wiring Type
Voltage Power
AC Connection High voltage Non-Power Limited
Battery Connection Low voltage Non-Power Limited
Trouble Relay Low voltage Non-Power Limited
Low AC Relay Low voltage Non-Power Limited
Notification Device Circuits (NACs) Low voltage Power Limited
Input Circuits Low voltage Power Limited
P-Link RS-485 Connections Low voltage Power Limited
Cabinet Dimensions

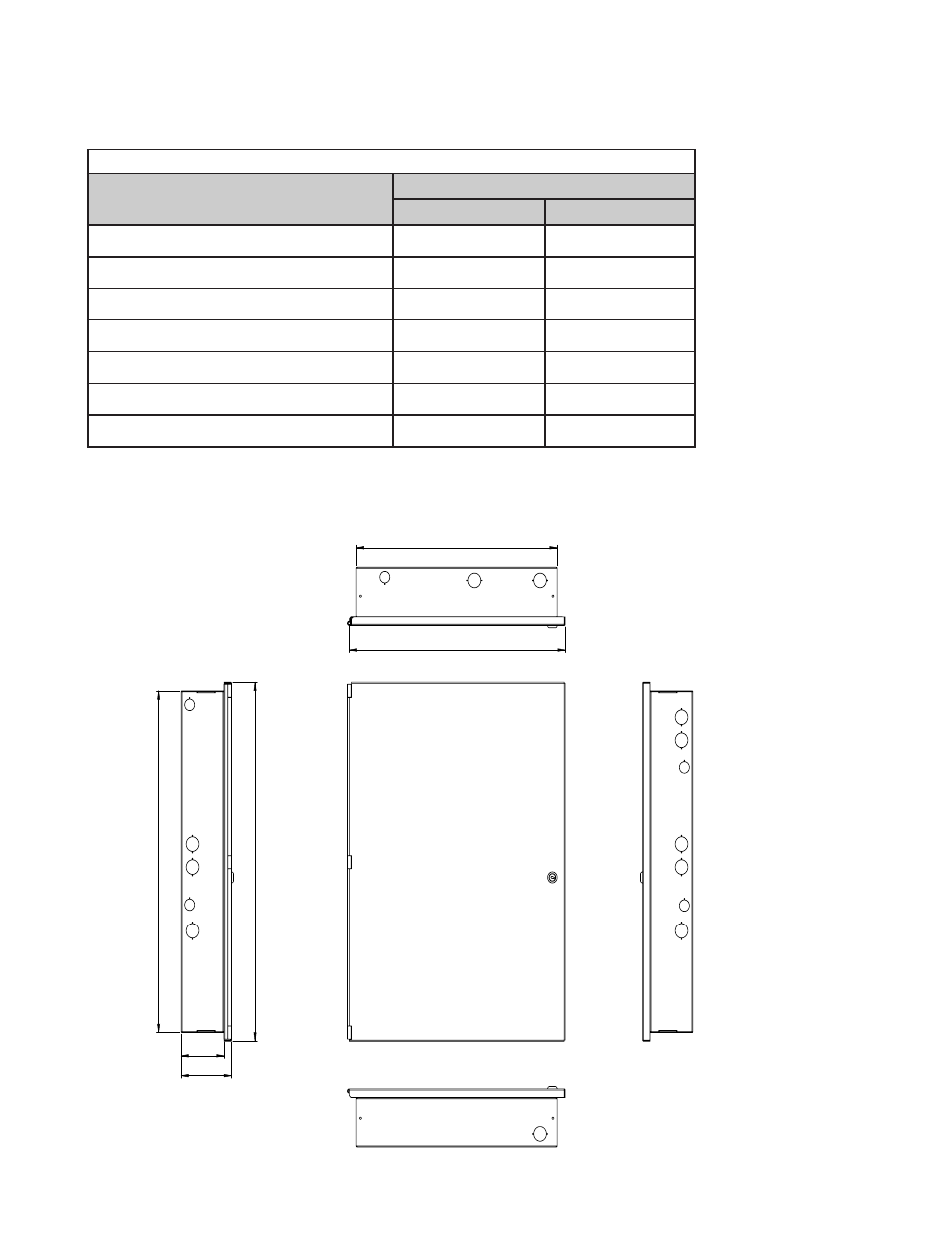

PSN-1000(E) Cabinet Dimensions Figure 137.
18.91”
17.60”
26.00 “ 27.32 “
4.41
3.75
TOP
RIGHT SIDE
DEPTH
LEFT SIDE
DWG #602-21
