66
Size inches
(mm)
Voltage Model
Number
Stock
Number
Current
(Max.)
Typical dB at
10 ft. (3m) (2)
Minimum dB at
10 ft. (3m) (1)
6 (150) 12VDC MBA126 1750070 .12A 85 76
8 (200) 12VDC MBA128 1750080 .12A 90 77
10 (250) 12VDC MBA1210 1750060 .12A 92 78
6 (150) 24VDC MBA246 1750100 .06A 87 77
8 (200) 24VDC MBA248 1750110 .06A 91 79
10 (250) 24VDC MBA2410 1750090 .06A 94 80
6 (150) 24VAC PBA246 1806024* .17A 91 78
8 (200) 24VAC PBA248 1808024* .17A 94 77
10 (250) 24VAC PBA2410 1810024* .17A 94 78
6 (150) 120VAC PBA1206 1806120* .05A 92 83
8 (200) 120VAC PBA1208 1808120* .05A 99 84
10 (250) 120VAC PBA12010 1810120* .05A 99 86
All DC bells are polarized and have built-in transient protection.
* Does not have ULC listing.

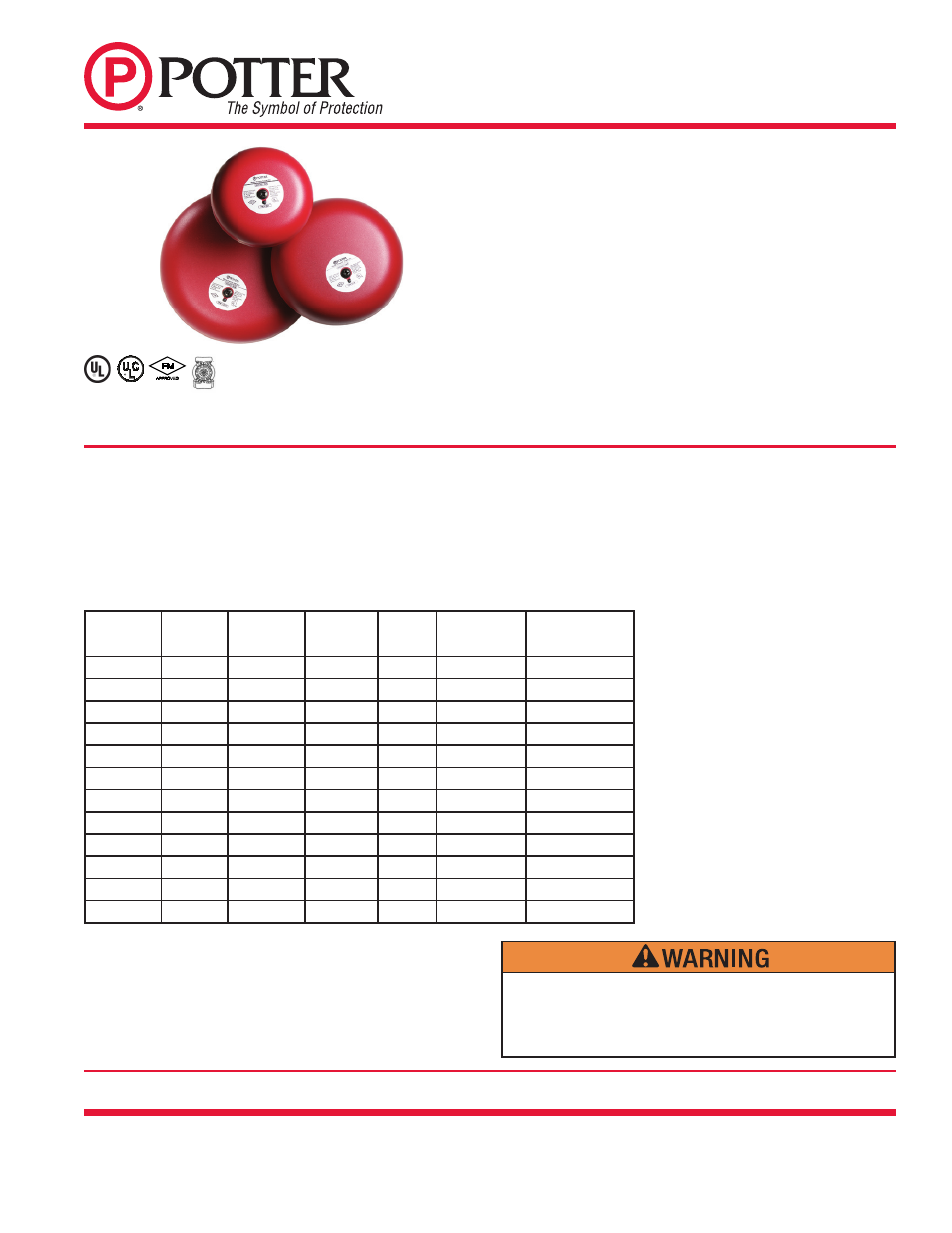

BELLS
PBA-AC & MBA-DC
These vibrating type bells are designed for use as fire, burglar or general
signaling devices. They have low power consumption and high decibel
ratings. The unit mounts on a standard 4" (101mm) square electrical box
for indoor use or on a model BBK-1 weatherproof backbox or BBX-1
deep weatherproof backbox for outdoor applications. Weatherproof
backbox model BBK-1, Stock No. 1500001.
PRINTED IN USA PAGE 1 OF 2 MFG. #5400776 - REV Y
5/08
UL, ULC, and FM Approved
Sizes Available: 6" (150mm), 8" (200mm) and 10" (250mm)
Voltages Available: 24VAC
120VAC
12VDC (10.2 to 15.6) Polarized
24VDC (20.4 to 31.2) Polarized
Service Use: Fire Alarm
General Signaling
Burglar Alarm
Environment: Indoor or outdoor use (See Note 1)
-40° to 150°F (-40° to 66°C)
(Outdoor use requires weatherproof backbox.)
Termination: AC Bells - 4 No. 18 AWG stranded wires
DC Bells - Terminal strip
Finish: Red powder coating
Optional: Model BBK-1 weatherproof backbox
Model BBX-1 deep weatherproof backbox
Potter Electric Signal Company, LLC • St. Louis, MO, • Phone: 866-572-3005/Canada 888-882-1833 • www.pottersignal.com
In outdoor or wet installations, bell must be mounted with
weatherproof backbox, BBK-1 or BBX-1. Standard electrical boxes
will not provide a weatherproof enclosure. If the bell and/or assembly
is exposed to moisture, it may fail or create an electrical hazard.
Notes:
1. Minimum dB ratings are calculated from integrated sound pressure
measurements made at Underwriters Laboratories as specified in UL
Standard 464. UL temperature range is -30° to 150°F (-34° to 66°C).
2. Typical dB ratings are calculated from measurements made with a
conventional sound level meter and are indicative of output levels in
an actual installation.
3. ULC only applies to MBA DC bells.
*
