Potter Releasing Systems - Manual (Page 57)

57
WATER
MOTOR
ALARM
TO DRAIN
PS10
PRESSURE
SUPERVISORY
SWITCH
BVL
BLEEDER
VALVE
TO AIR
SUPPLY
OSYSU
TAMPER
SWITCH
BELL
FIRE ALARM
SOLENOID
P32
SERIES
PULL
STATION
PS10
PRESSURE
ALARM
SWITCH
BELL
SUPERVISORY
ALARM
HORN
SPRINKLER
PS-24
SMOKE DETECTOR
IS-24
SMOKE DETECTOR
SPRINKLER SPRINKLER
TO
PFC-4410RC

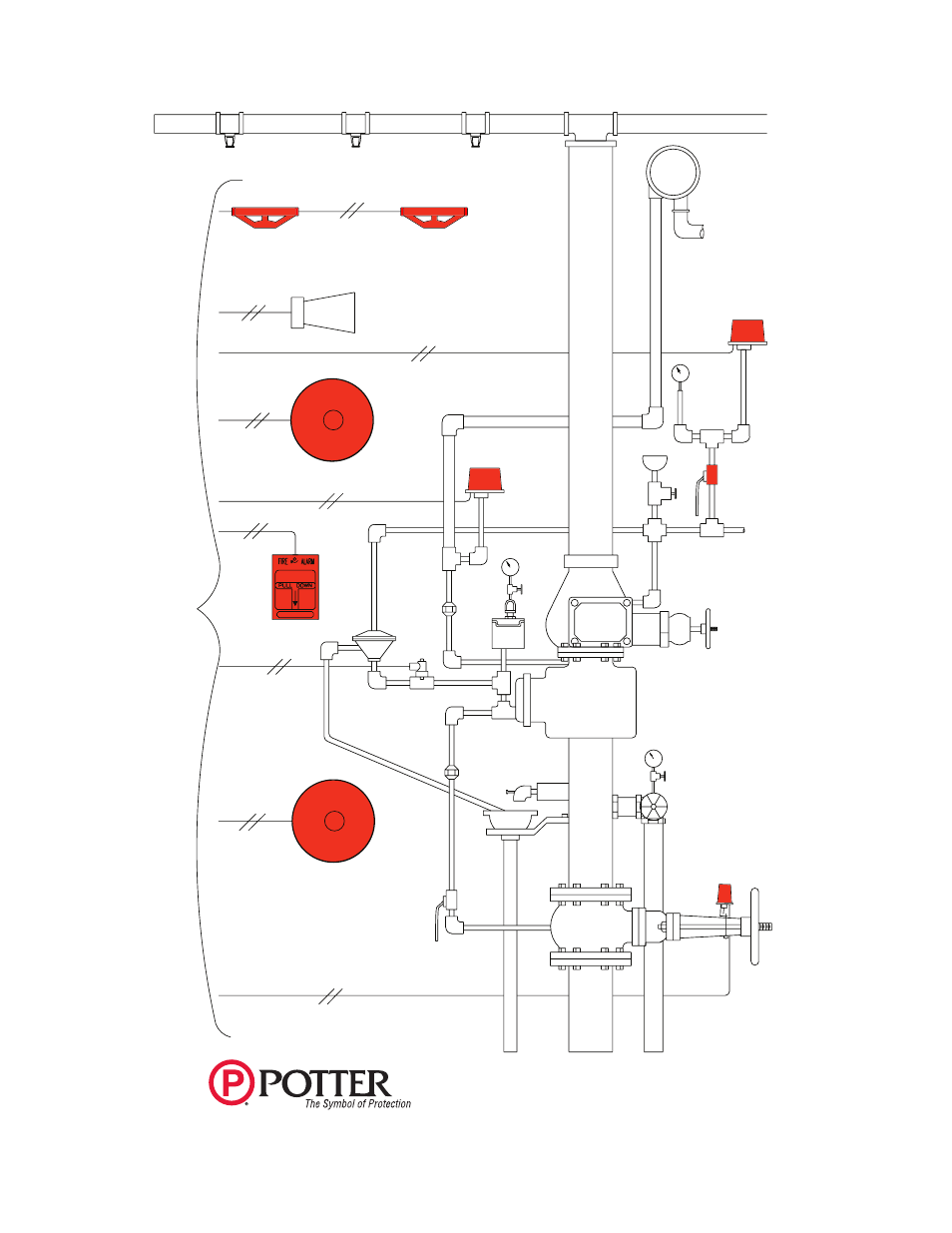

Double Interlock System
