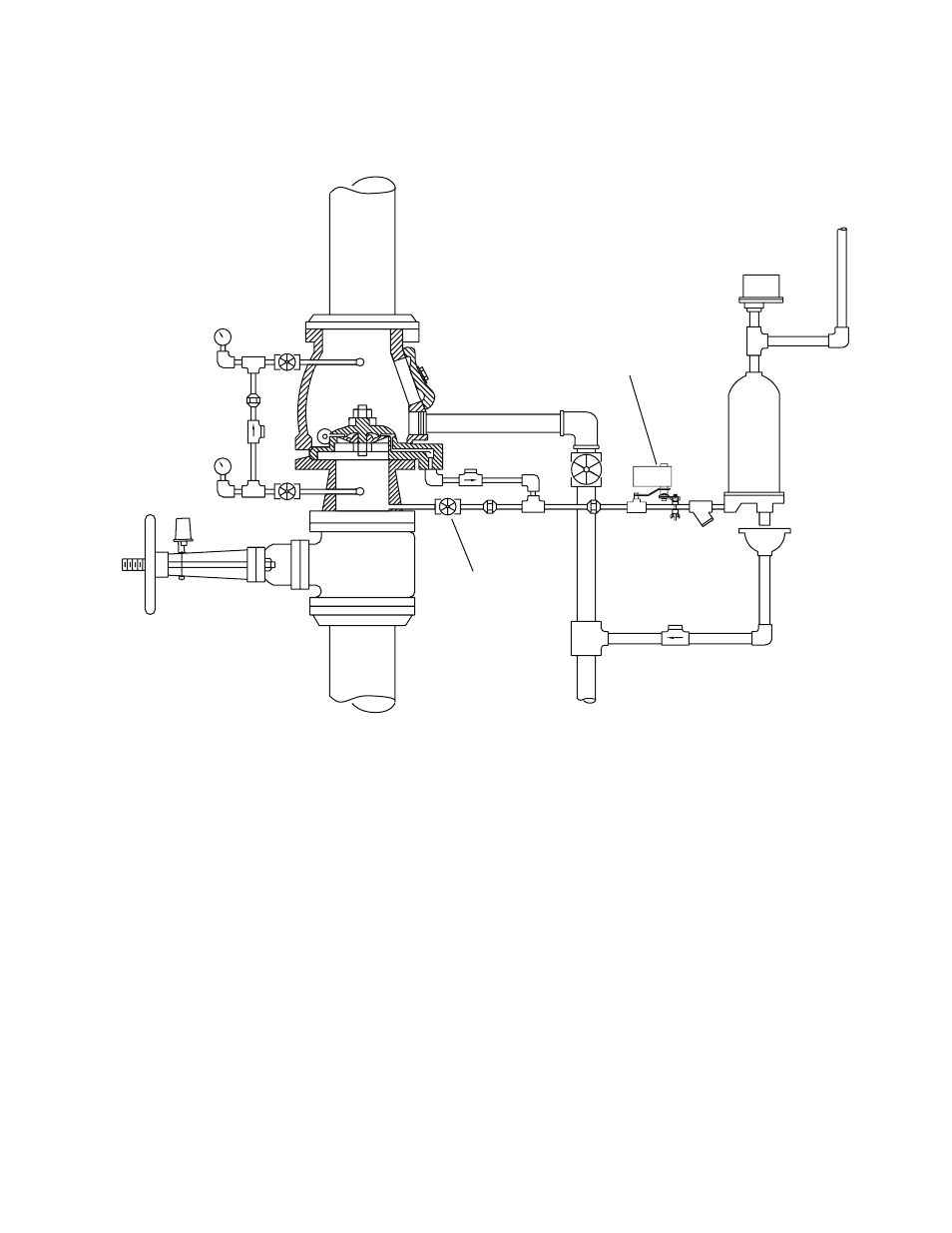

Fig. 14
ALARM BY-PASS TEST
VALVE MUST BE KEPT
CLOSED AT ALL TIMES.
OPEN VALVE TO FLOW
WATER TO PRESSURE
SWITCH AND/OR WATER
MOTOR GONG.
ALARM SHUT-OFF VALVE
MUST BE KEPT OPEN AT ALL
TIMES, EXCEPT WHEN
FILLING THE SYSTEM. USE
POTTER RBVS TO SUPERVISE
THE VALVE.
RBVS
STRAINER
DWG# 8704200-5A
