4-25
ProLiant 3000 Setup and Installation Guide
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: E-CH04.DOC Last Saved On: 1/27/98 4:20 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
SCSI ID Numbers
There are four possible numbering schemes depending on whether you are
using 1-inch height drives, 1.6-inch height drives, simplex controller, or duplex
controllers. The following four figures illustrate these four schemes.
IMPORTANT: The Simplex Enable board must be installed on the back of
the drive cage for the simplex modes and the Duplex Enable board must be
installed for the duplex modes.
0 4
1 5
2 6
3 Not Used

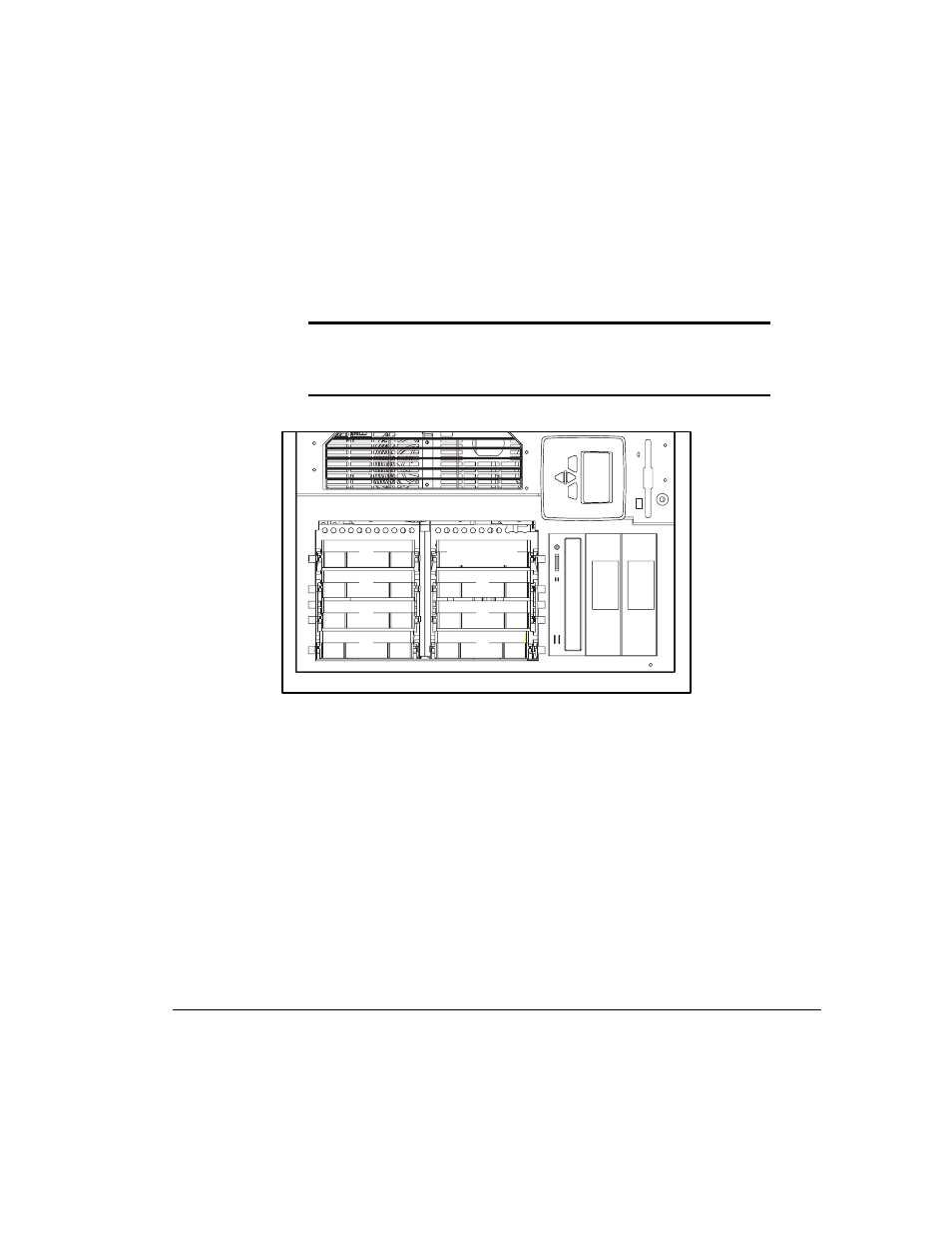

Figure 4-23. SCSI ID numbers - Single SCSI Channel (Simplex Mode) with 1-inch drives
