4-22 Installing Hardware Options
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: E-CH04.DOC Last Saved On: 1/27/98 4:20 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
3. Install DIMMs. You must add memory by bank, that is, a set of 2 EDO
buffered DIMMs at a time. Each bank should contain DIMMs of the
same size. For more information on banks, see the section titled
“Memory Banks” earlier in this chapter.
2
2
1

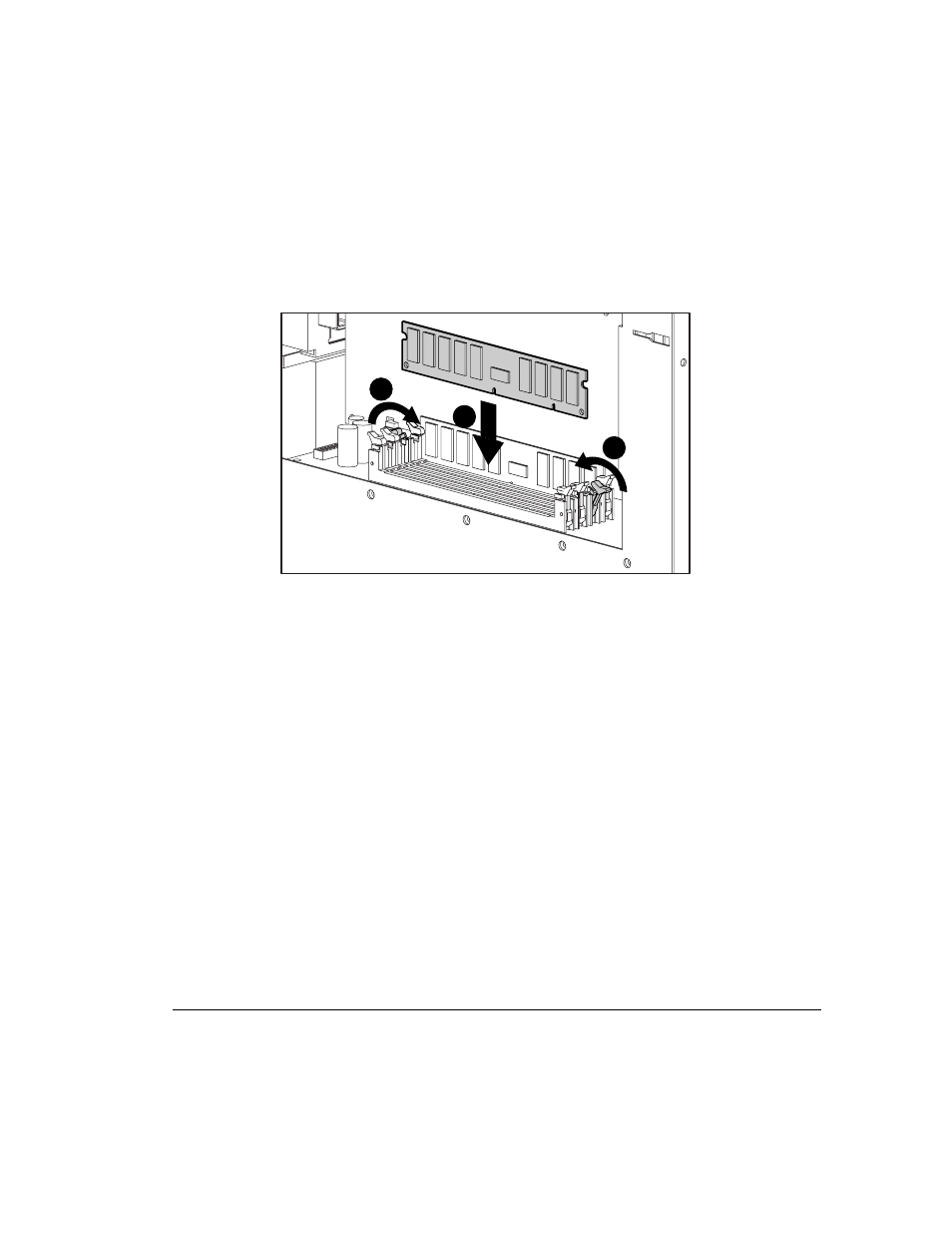

Figure 4-20. Installing system board DIMM banks
