4-9

ProLiant 3000 Setup and Installation Guide

Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002

File Name: E-CH04.DOC Last Saved On: 1/27/98 4:20 PM

COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED

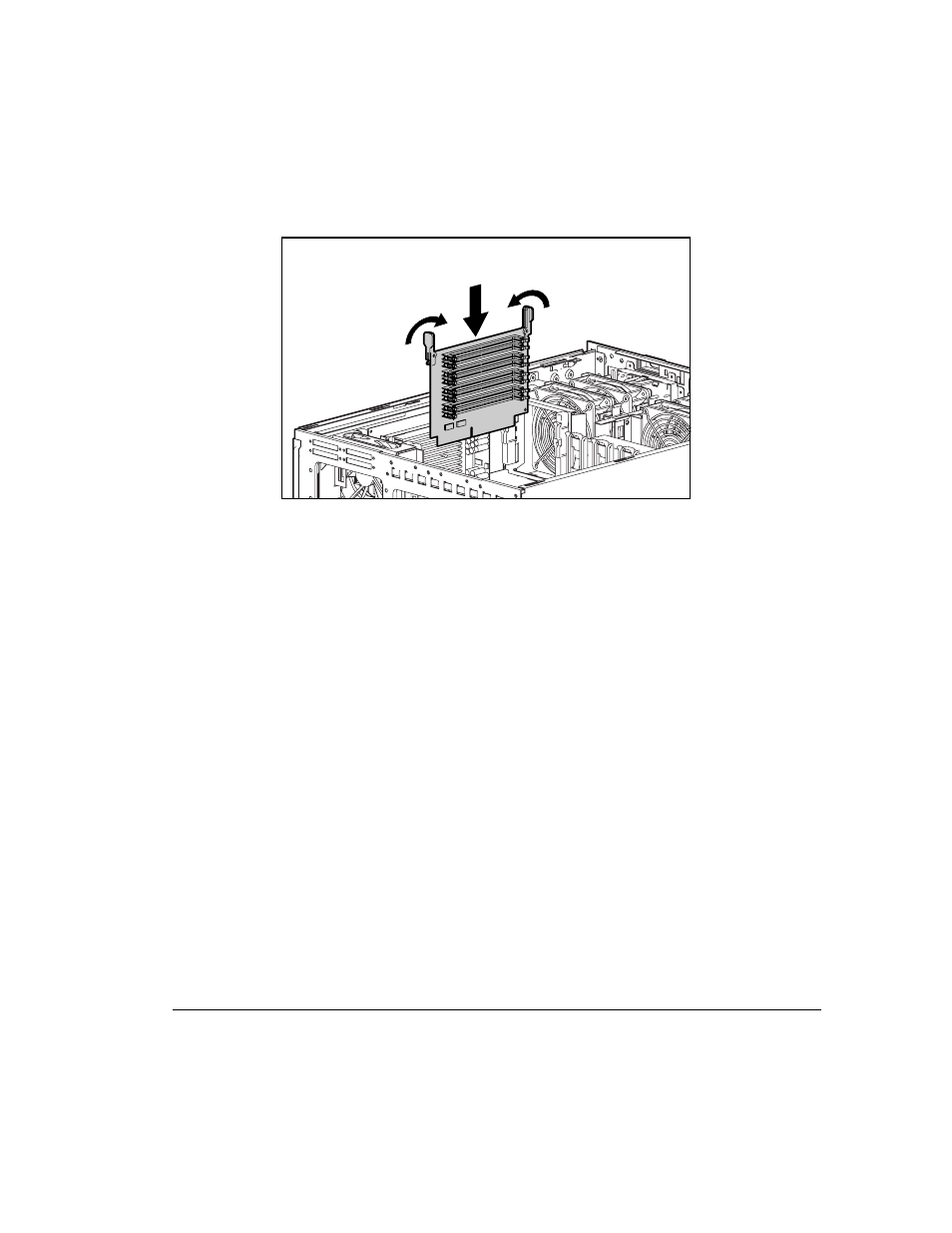

3. Install the memory board as shown in Figure 4-7.

Figure 4-7. Installing memory board

Memory Banks

In the Compaq ProLiant 3000 server, DIMM sockets are grouped in banks of
two adjacent sockets. When you add memory, you must add a bank at a time.
Memory banks on the system board and on the memory board are identified in
Figure 4-8 and Figure 4-9 respectively. Memory banks are also identified on a
label on the inside of the access panel.
