3-9
ProLiant 3000 Setup and Installation Guide
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: D-CH03.DOC Last Saved On: 3/10/98 9:30 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED

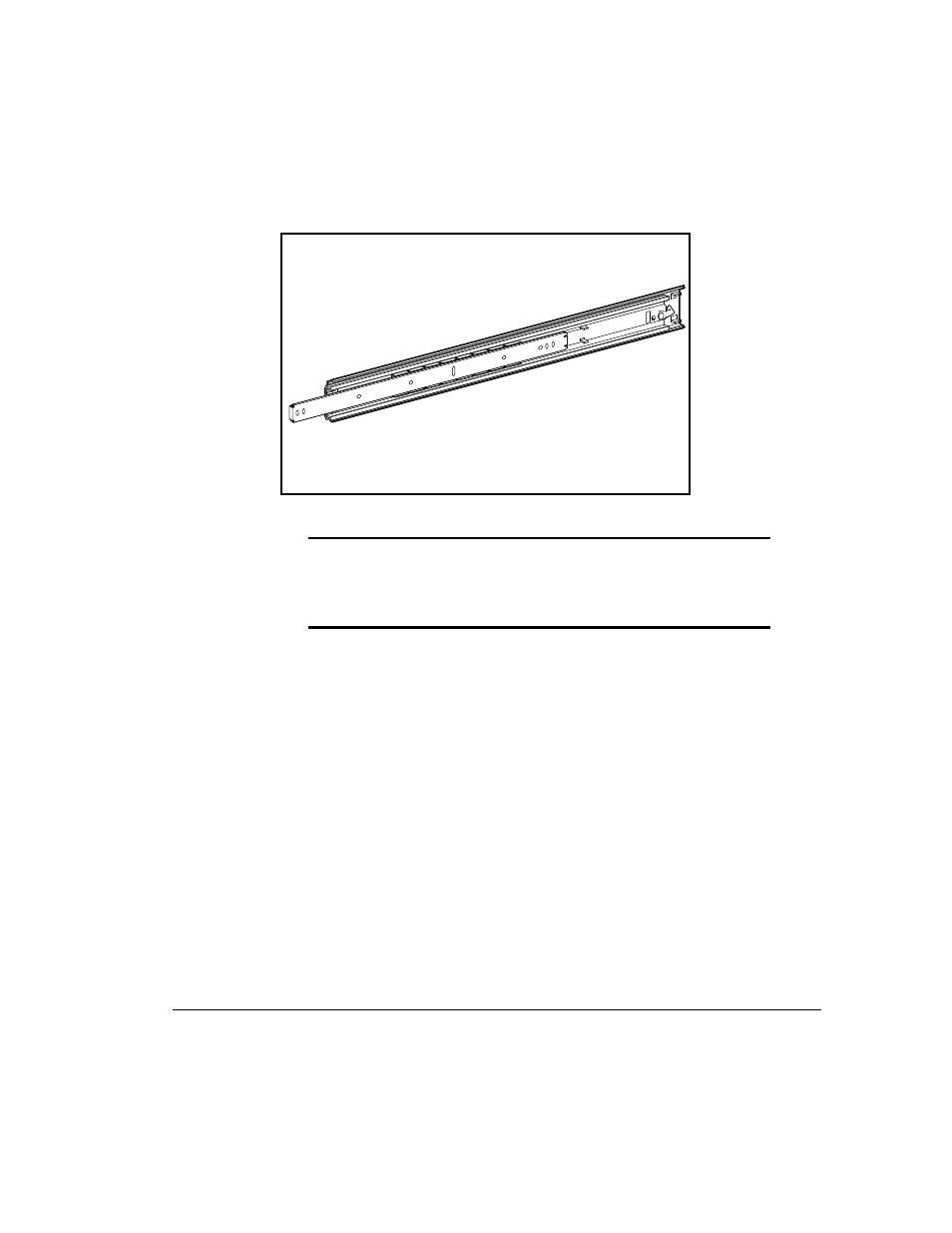

Figure 3-3. Slide rail assembly (outer bracket rail and inner component rail)
IMPORTANT: To make the installation of the mounting bracket easier,
attach the bracket rail to the rack mounting bracket before attaching the
mounting bracket assembly to the rack. This way, the joined mounting
bracket and bracket rail can be fastened to the rack as one assembly.
Attaching the Bracket Rail
to the Mounting Bracket
Please read all of the following eight steps before you begin.
1. Unpack the hardware mounting kit. Lay the two-piece slide rail
assembly (outer bracket rail and inner component rail) and fasteners on a
flat surface along with the mounting brackets and fasteners that came
with the rack.
2. Extend the component rail from the bracket slide rail until the
component rail release latch clicks. Holding down the latch, slip this
piece out of each bracket rail, as shown in the following figure.
