ProLiant 3000 Setup and Installation Guide
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: E-CH04.DOC Last Saved On: 1/27/98 4:20 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
1
2
1

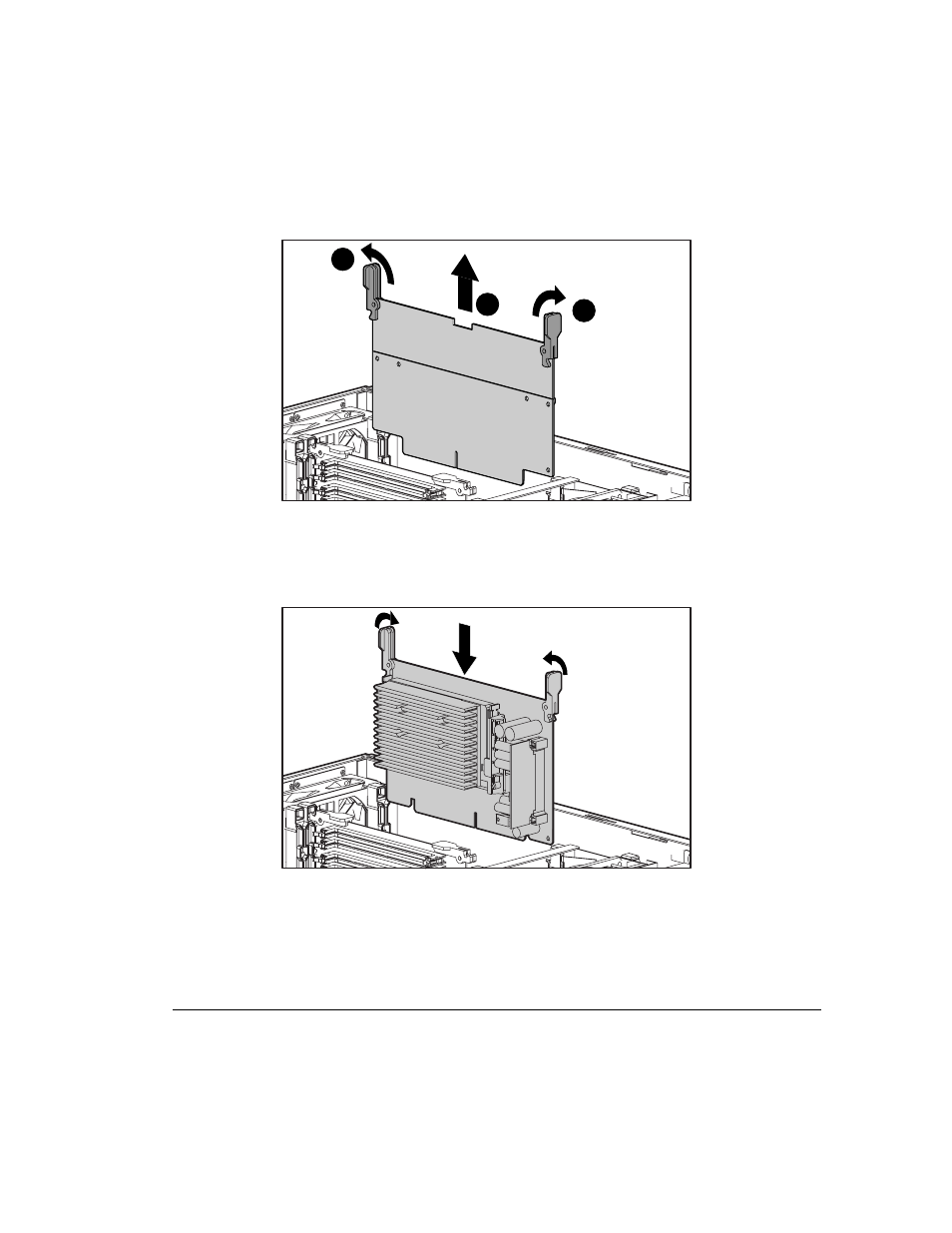

Figure 4-2. Removing the terminator board
2. To install a Pentium II processor board, follow the instructions included
in the processor option kit to install the processor on the board. then see
Figure 4-3.
Figure 4-3. Installing the Pentium II processor board
