4-18 Installing Hardware Options
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: E-CH04.DOC Last Saved On: 1/27/98 4:20 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
9. Reconnect the SCSI cables on the back of the drive cage. Refer to
Figure 4-19 connector identification. Refer to Cabling Guidelines for
Compaq ProLiant 3000 Servers for information on SCSI cabling.

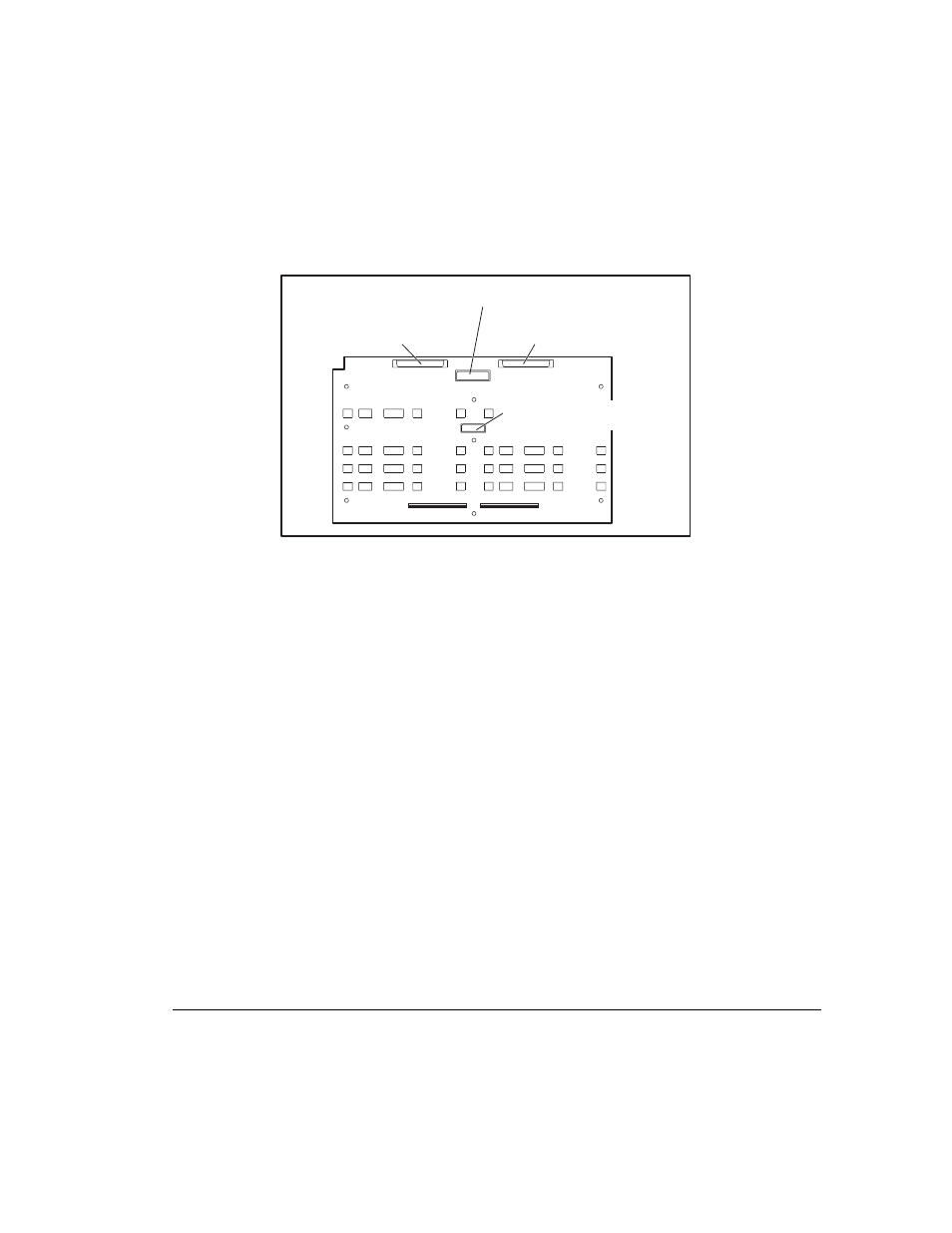

SCSI Input 1 SCSI Input 0
Removable Media Connector
Hard Drive Backplane Connector
Figure 4-17. Connectors on back of drive cage
10. Pull out the drive cage latch and push the drive cage back fully until the
drive cage latch can be pushed into place.
11. Tighten the thumbscrews on the front of the drive cage.
12. Connect SCSI controller cables. See Cabling Guidelines for Compaq
ProLiant 3000 Servers for more information on connecting SCSI cables.
Figure 4-18 shows an example controller connection.
