Page 2 Manual MCS-64
LDM 88.1
#1
Load Cell
#1
LDM 88.1
#2
Load Cell
#2
Gateway
Fieldbus
- Profibus (PGM 68.1)
- CANopen (CGM 85.1)
- Ethernet (EGM 87.1)
RS 232
Service-Port
RS485
-Bus
LDM 88.1
#64
Load Cell
#64
Base Board
MB 89.1
Extension Boards
MB 89.2
MB 89.3
MB 89.4

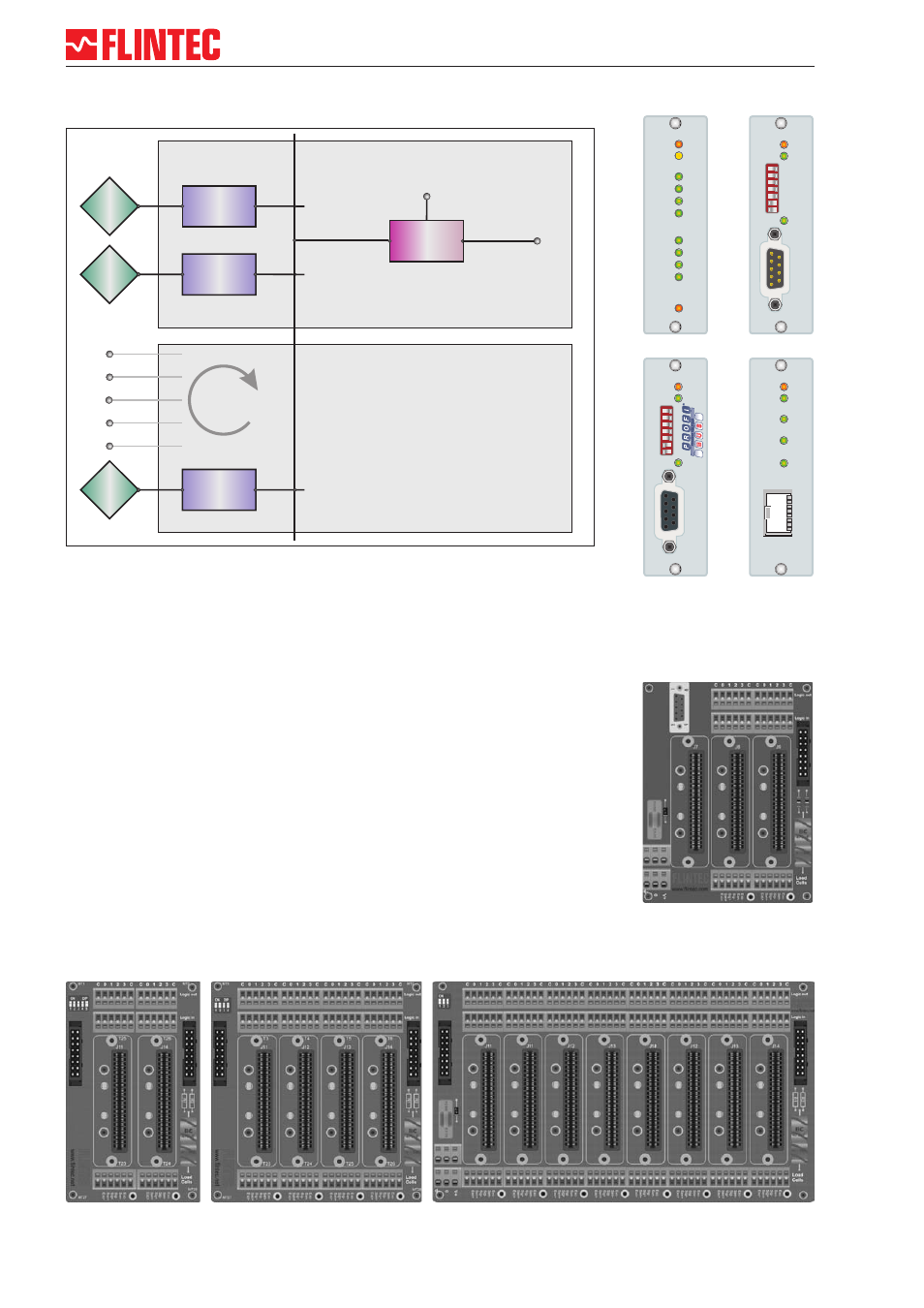

Components of MCS-64 in overview
Components of MCS-64
All boards have the same technical features:
• Spring clips for load cell terminals in 6-wire-technique
• 4 DI’s via spring clip terminal blocks
• 4 DO’s via spring clip terminal blocks
• Header for ribbon cable to extension board
PWR
Com
In 0
Out 0
Err
In 1
Out 1
In 2
Out 2
In 3
Out 3
LDM
88.1
LDM 88.1
PWR
Com
6
5
4
3
2
1
0
PB
Adresse
Profibus
Connector
Act
PGM
86.1
PGM 86.1
PWR
Com
6
5
4
3
2
1
0 Bus
Adresse
CANopen
Connector
Act
CAN
open
CAN
open
CGM
85.1
CGM 85,1
MB 89.1
Dim 104 x 135 mm
MB 89.3
Dim 129 x 135 mm
MB 89.2
Dim 79 x 135 mm
MB 89.4
Dimensions 229 x 135 mm
Base Board MB 89.1
• Slot for one Gateway CGM 85.1 / PGM 86.1 / EGM 87.1
• 2 Slots for weighing processor LDM 88.1
• RS 232 Service port
PWR
Com
FD/CS
100Mbps
Link/Act
Ethernet
TCP/IP
EGM
87.1
87654321
EGM 87,1
Extension Boards MB 89.2/.3/.4
• 2/4/8 Slots for weighing processor LDM 88.1
