14.3.3 Dimensions

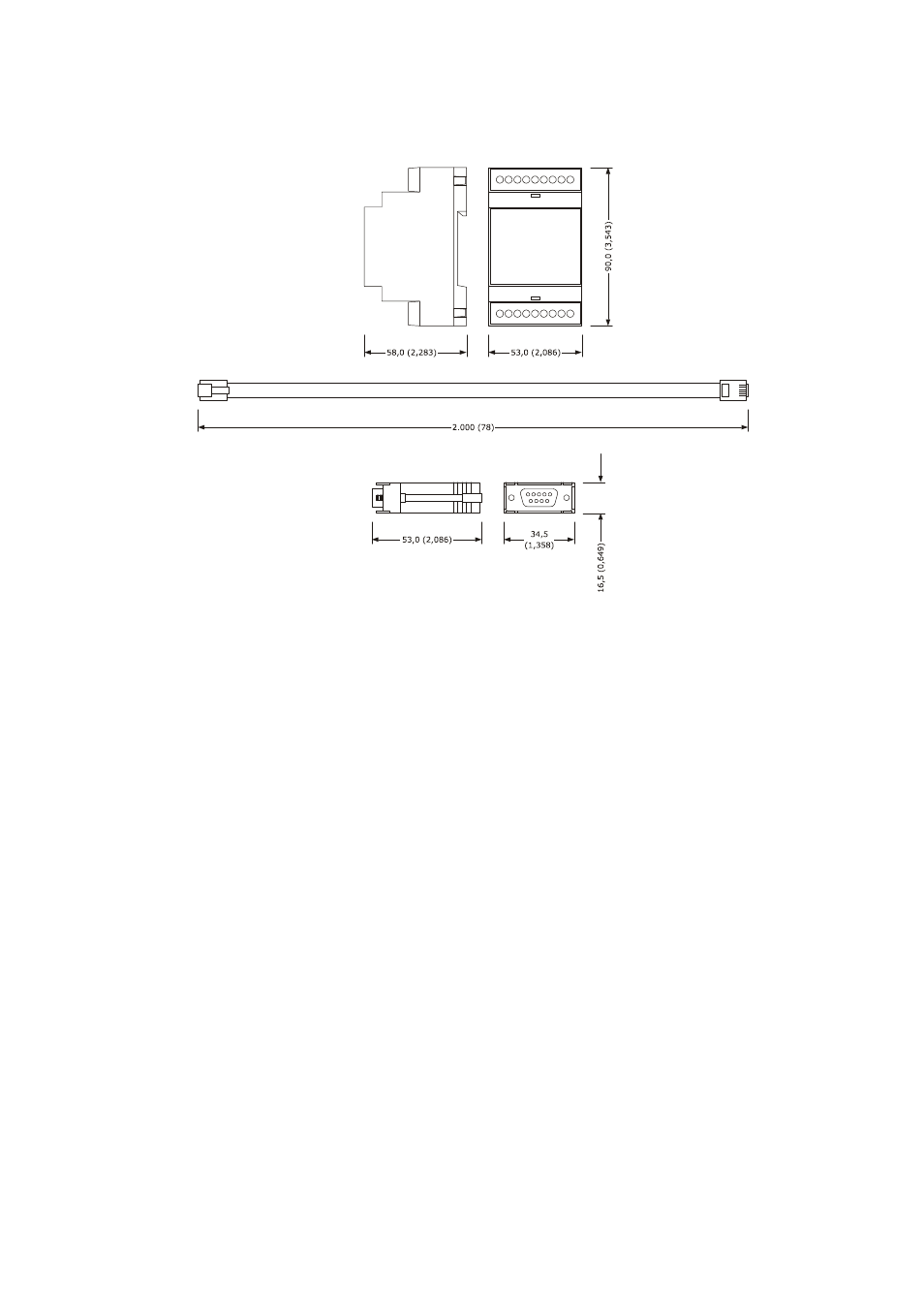

The following drawing illustrates the EVIF21RS7I dimensions; these are expressed in mm (in).

14.3.4 Connection to the device

Operate as follows:

1.

Cut the device power supply off.

2.

Connect the device RD-485 serial port to the EVIF21RS7I RS-485 type serial port.

3.

Insert one end of the telephone cable 1256800042 into the EVIF21RS7I RS-232 serial port.

4.

Insert the other end of the telephone cable 1256800042 into the 1256800079 adapter RJ connector.

5.

Connect the 1256800079 adapter DB connector to a Personal Computer COM, in which Parameters Manager is

installed.

6.

Connect the device power supply.
